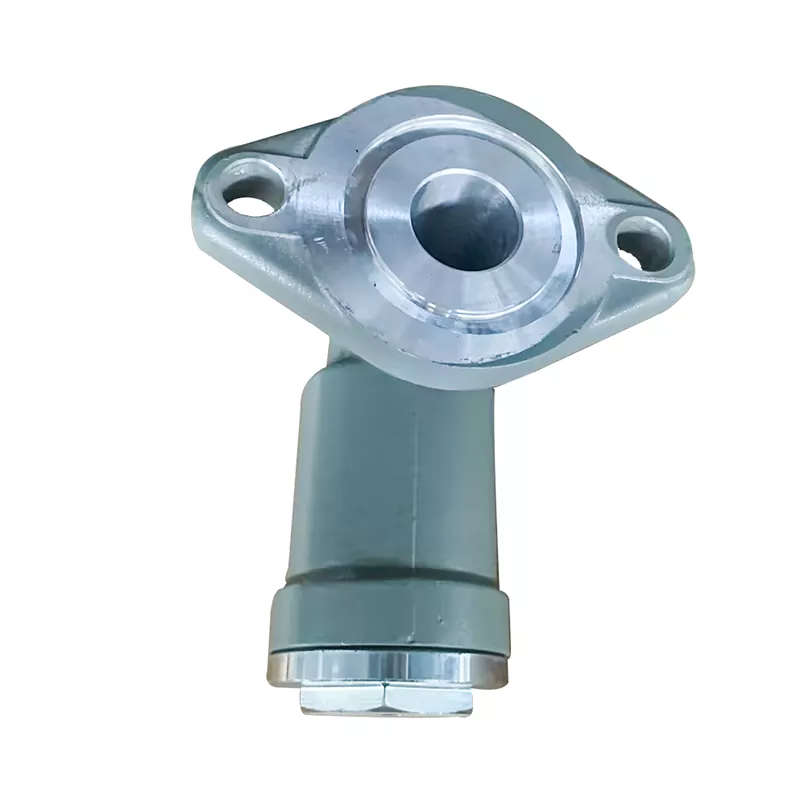

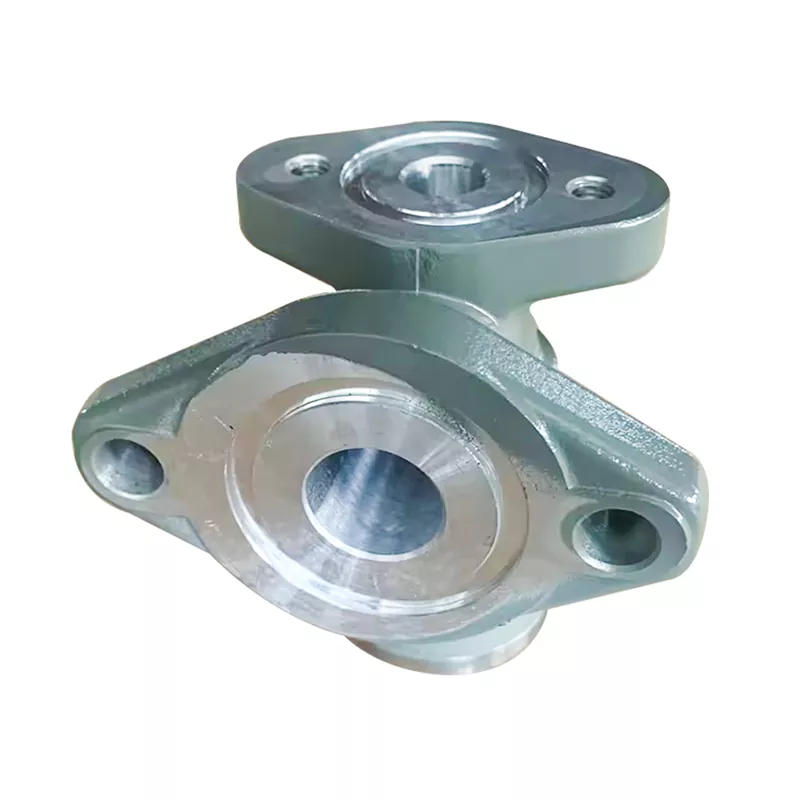

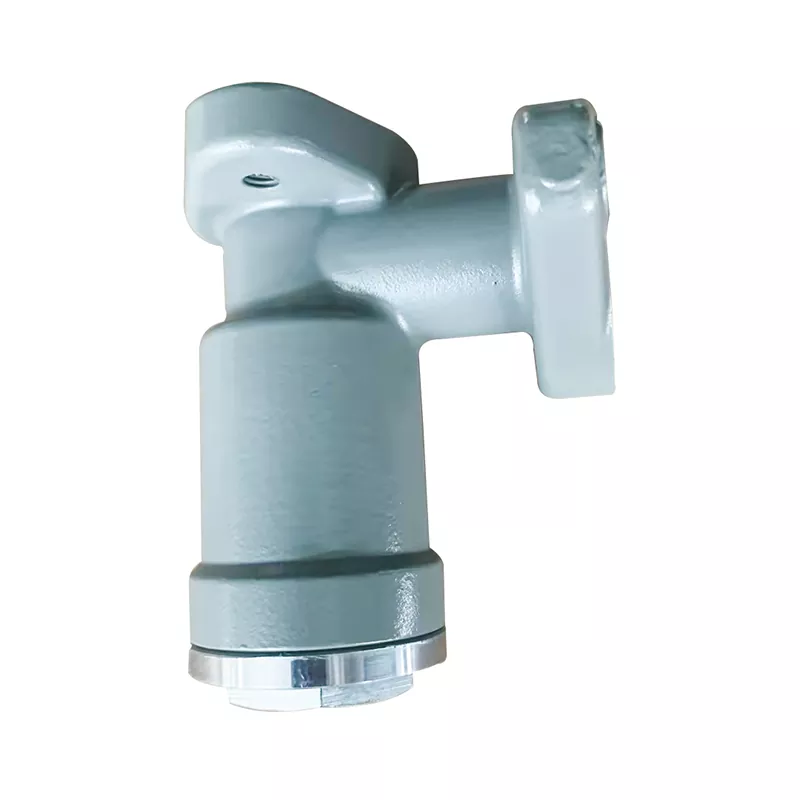

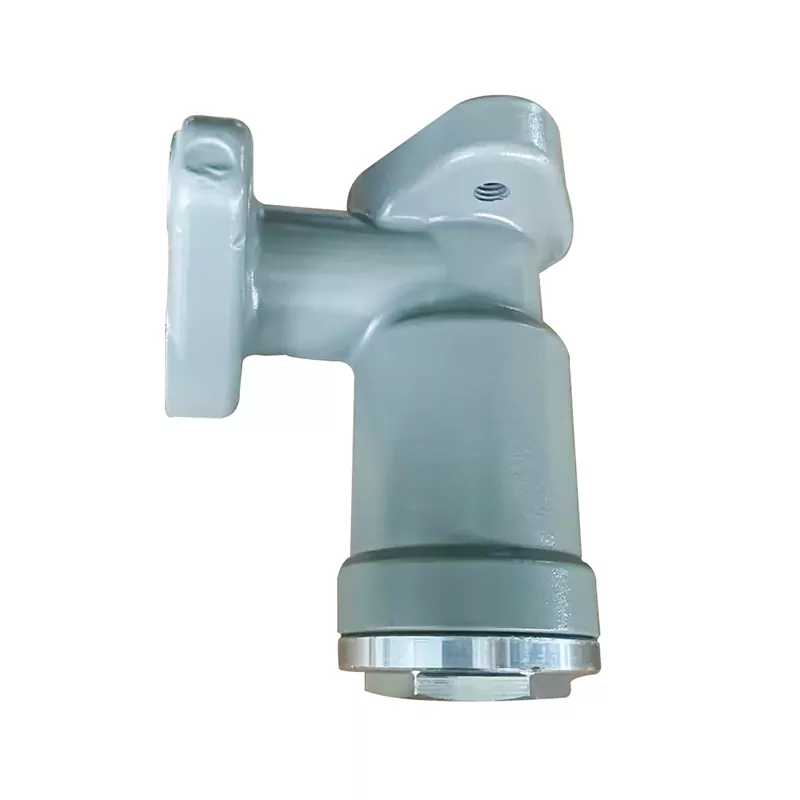

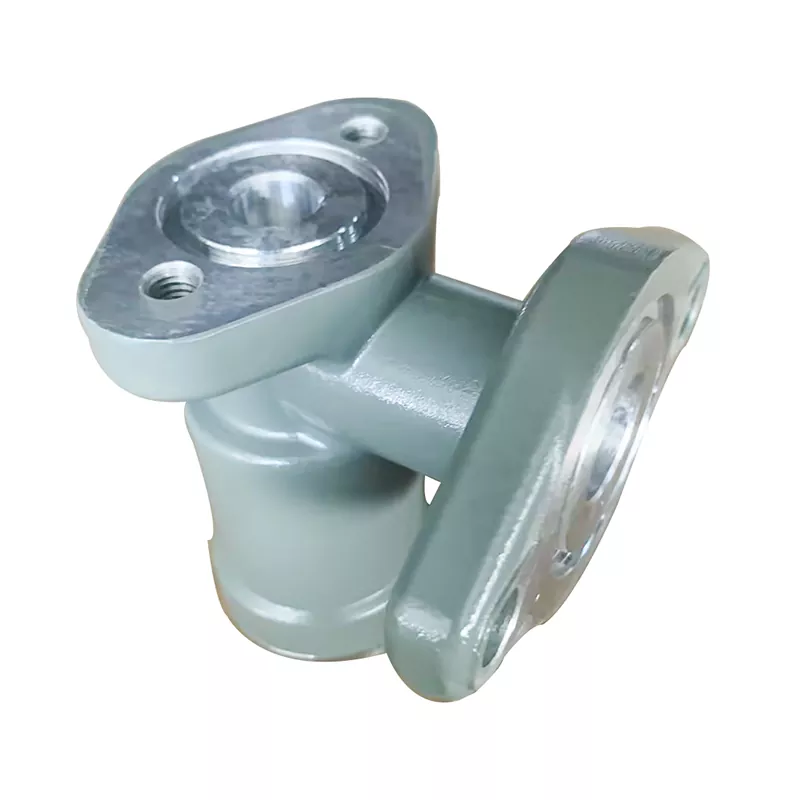

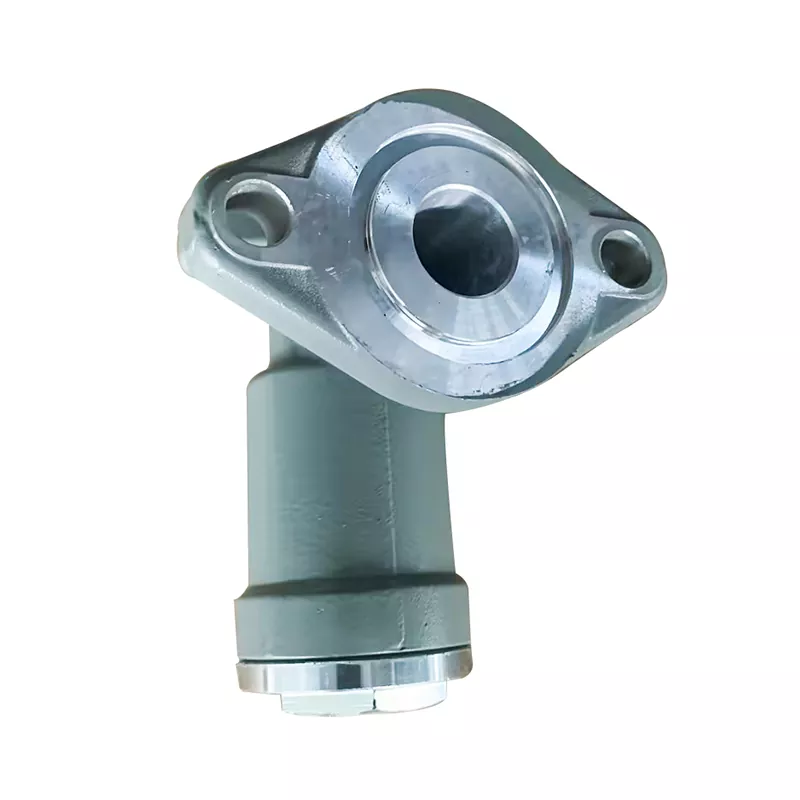

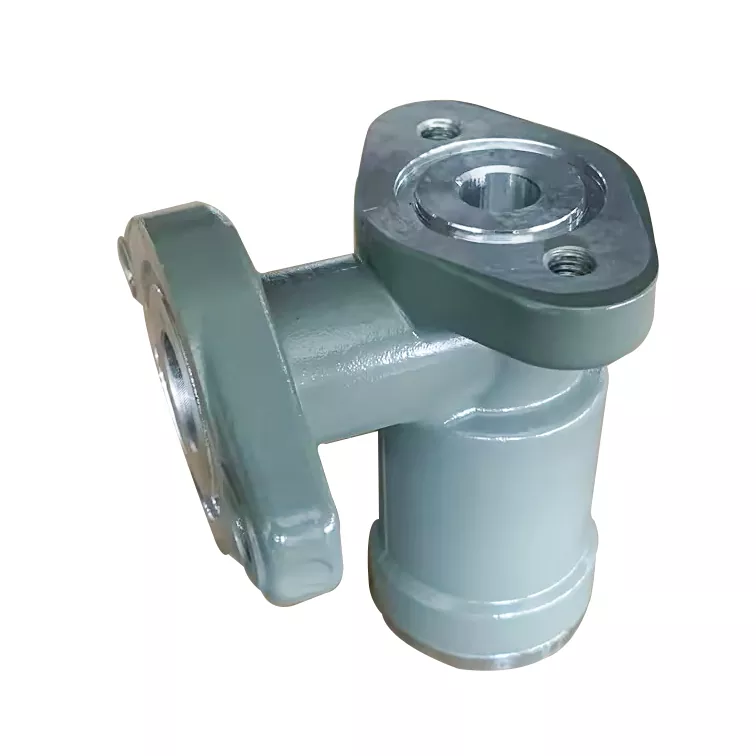

Differential pressure valve for LPG

Product Parameter (Specification)

Feature

1、Pressure resistance + dual performance of pressure control and pressure difference

The working pressure can reach 1.8 MPa, while maintaining a stable pressure difference of 0.3 MPa. This is suitable for the working conditions of LPG high-pressure storage and transportation, preventing the uncontrolled flow rate of the medium due to pressure fluctuations.

2、High flow rate + Easy integration

The maximum flow rate reaches 50L/min, meeting the flow requirements for small and medium-sized LPG refueling and transportation; equipped with standardized flange interfaces, it can be quickly integrated into the existing LPG pipeline system.

3、Practical packaging and specifications

Net weight per unit: 10kg, Gross weight: 12kg. Dimensions: 475mm × 230mm × 240mm. The packaging in 20 units per box is suitable for batch transportation and storage.

Application

1、LPG storage and transportation process: Installed at the outlet pipeline of the storage tank, it balances the pressure difference between the storage tank and the transportation pipeline, preventing the medium from "impulsive" flow.

2、LPG refueling equipment: Used in conjunction with the refueling machine, it ensures stable refueling pressure and guarantees the accuracy of each refueling volume.

3、Small-scale LPG terminal equipment: Such as the LPG gas supply system in the kitchen of restaurants, which controls the pressure at the stove end to ensure stability and prevent sudden changes in fire intensity.
