The applicable working conditions and performance indicators of DC Vapor Recovery Pump are as follows: the equipment can operate stably in the temperature range of -25℃ to 55℃, adapt to the pressure environment of 80-106 kpa, and allow 90% air humidity when the ambient temperature is 25℃; The power system adopts 36V DC power supply and matches 45W variable frequency power supply, the standard flow rate is 45L/min. It has passed Ex db II B AT3Gb explosion-proof certification and reached IP55 Protection level standard. The front-end pressure limit of the system is set at 150mbar.

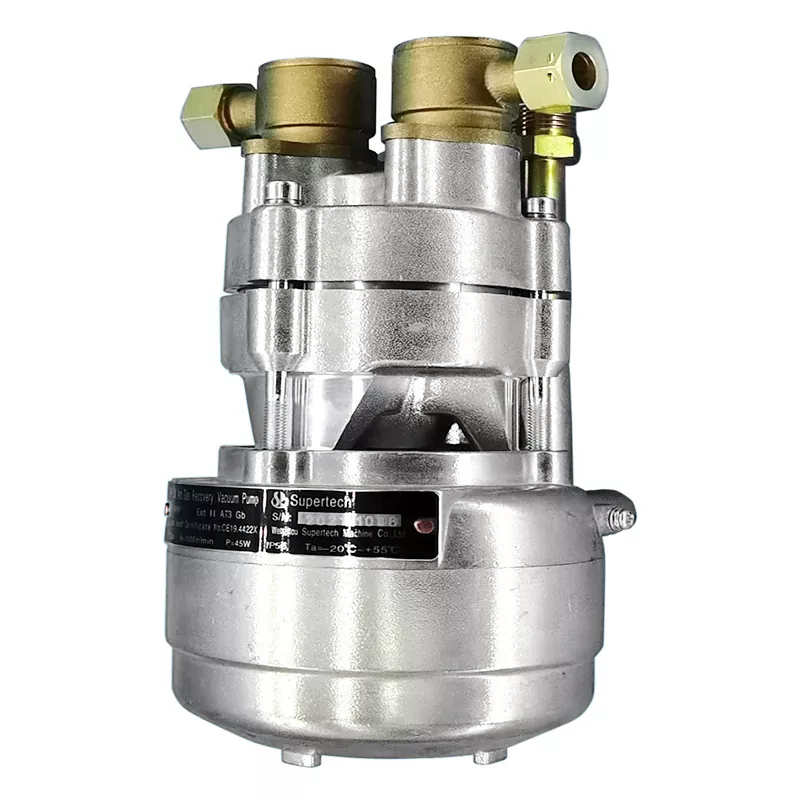

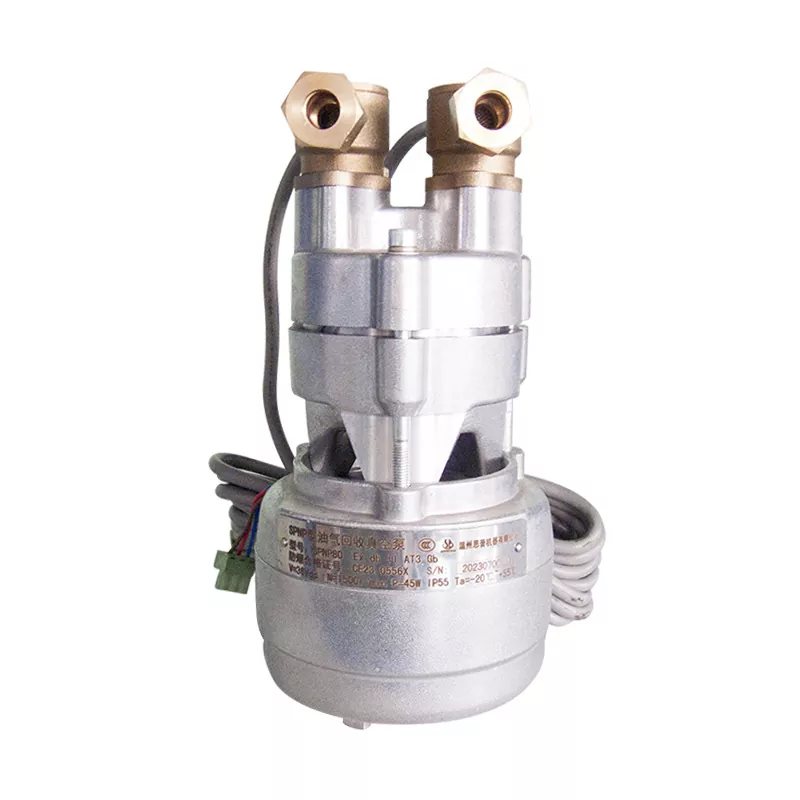

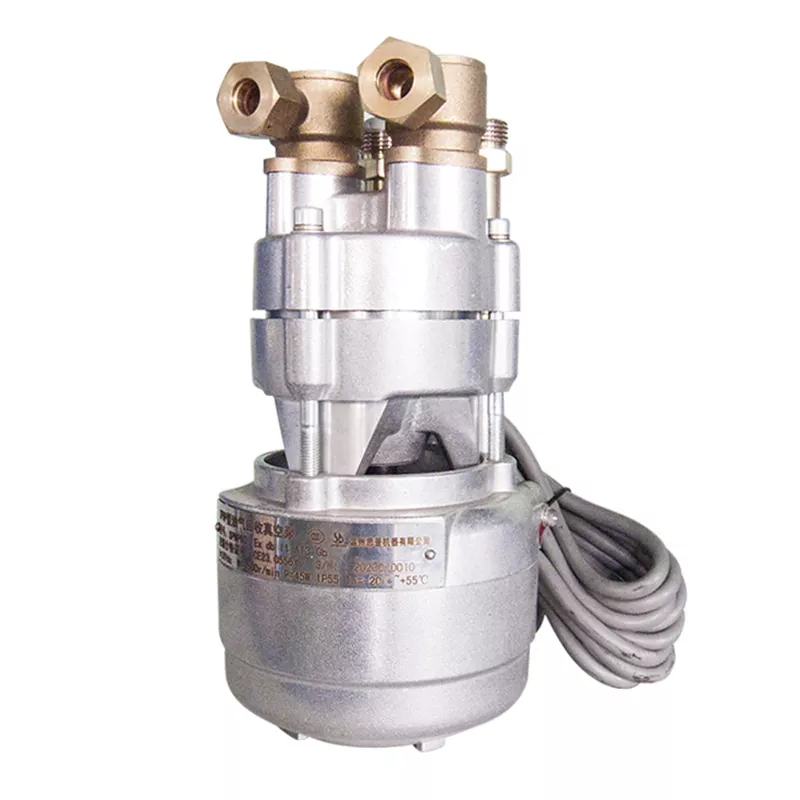

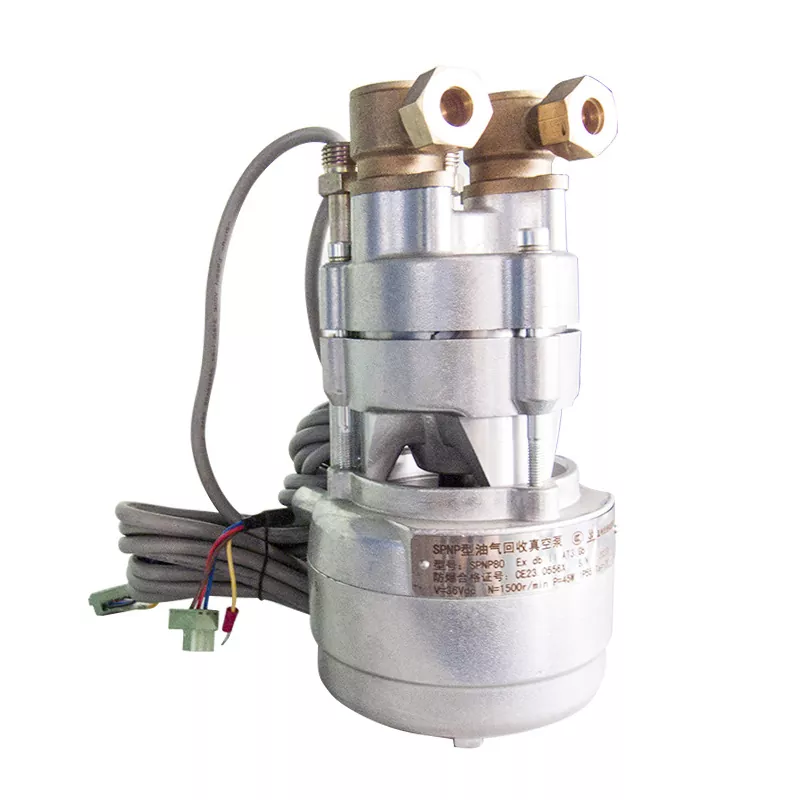

DC Vapor Recovery Pump is a high efficiency and energy saving equipment designed for oil and gas recovery system, widely used in gas stations, petrochemical industry and so on. Through the vacuum pump to absorb oil and gas in the air, DC Vapor Recovery Pump can reduce environmental pollution, efficient recovery, energy saving and environmental protection.
|
Ex-Mark： |
Ex db II B AT3 Gb |
|
Protection level: |
IP55 |
|
Voltage: |
36VDC |
|
Power: |
45W/72W |
|
Max Flow : |
80L/min |
|
Max Speed: |
1500RPM |
|
Environment temperature: |
-25℃~+55℃ |
|
Max Vacuum degree: |
≤-0.05MPA |
|
Air thread connection: |
1/2’’ |
DC Vapor Recovery Pump’s control panels are designed for NP type oil and gas recovery vacuum pumps.
1.Support 2 fuel pulse input, supports most brands of refueling machines.
2.With indicator light, can show a variety of operating states.
3.Complete NP pump control and Settings, support for positive and negative rotation Settings, support for precise speed adjustment, support for NP testing.
4.Control board circuit has multiple protection, there is circuit protection, protect the control board.
5.Automatic control of pump speed, adjust the proportion of oil and gas recovery.
