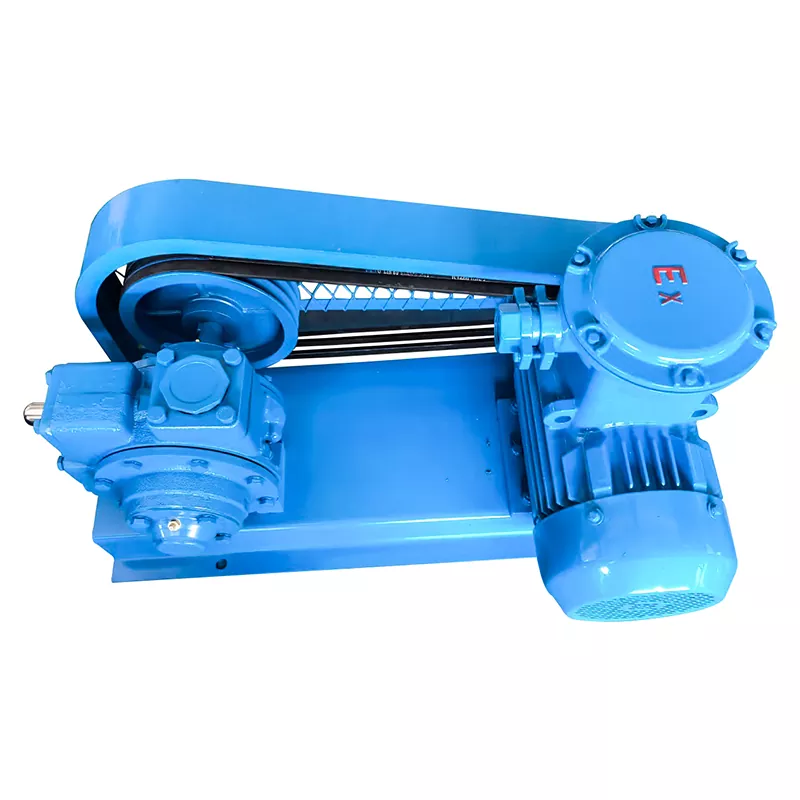

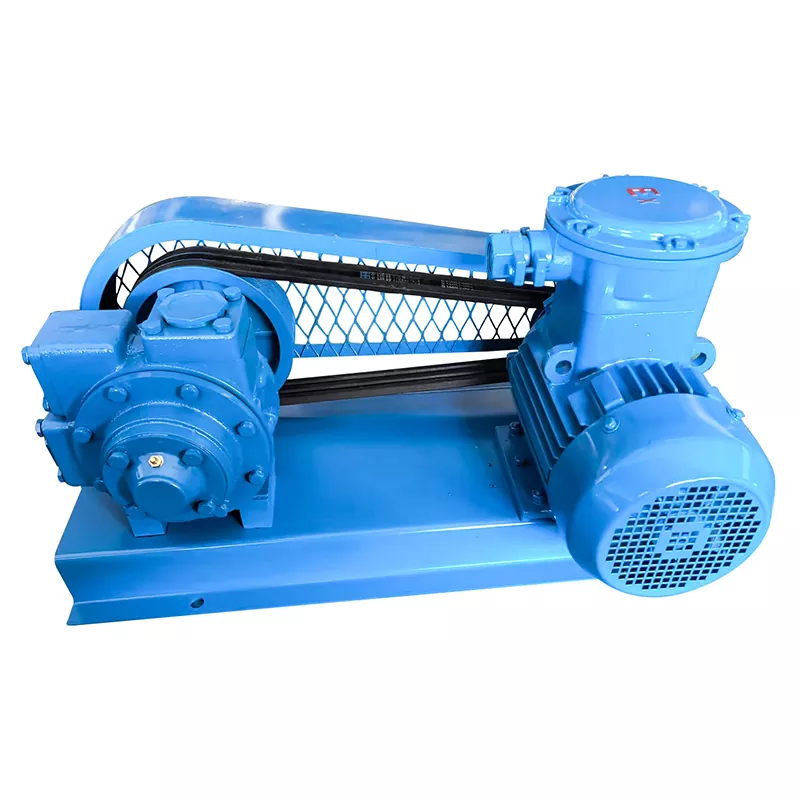

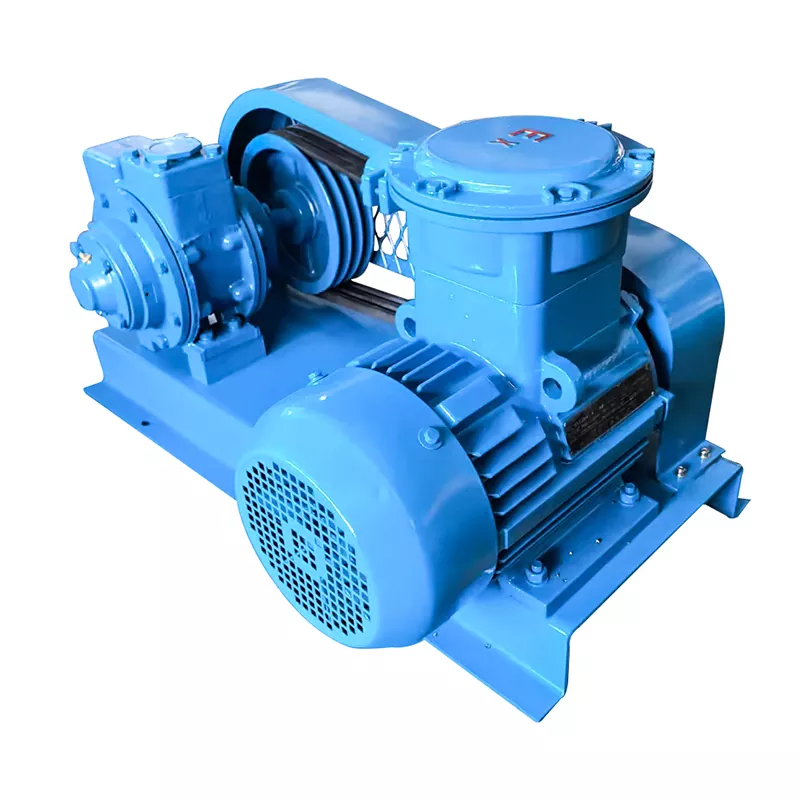

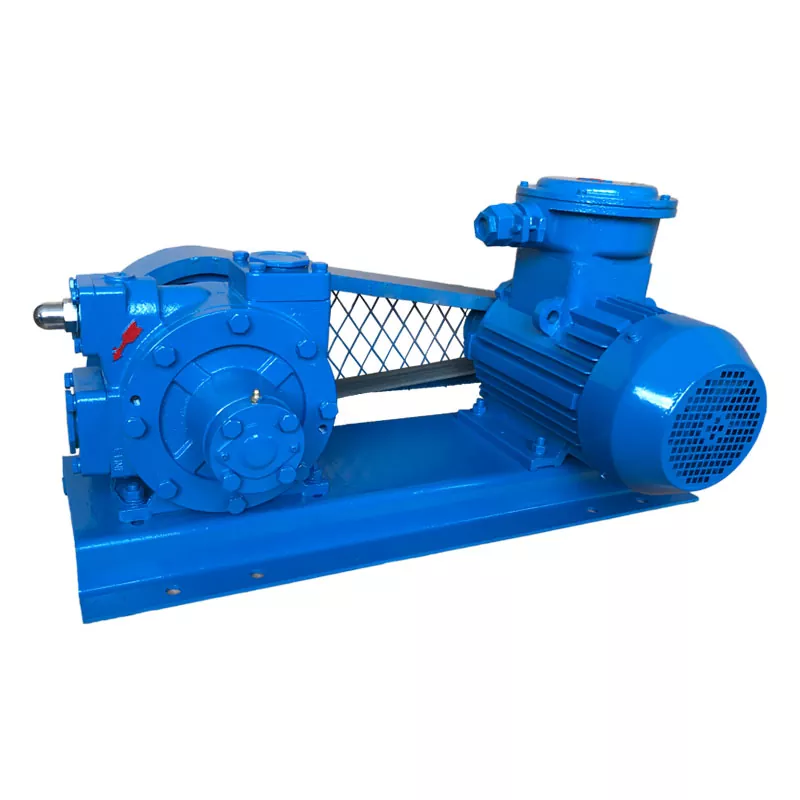

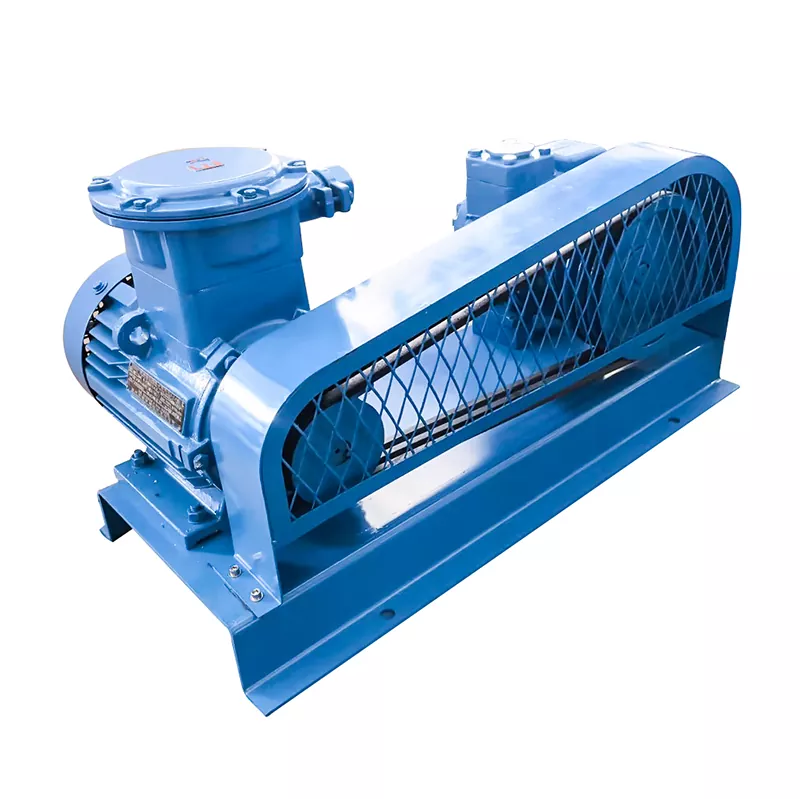

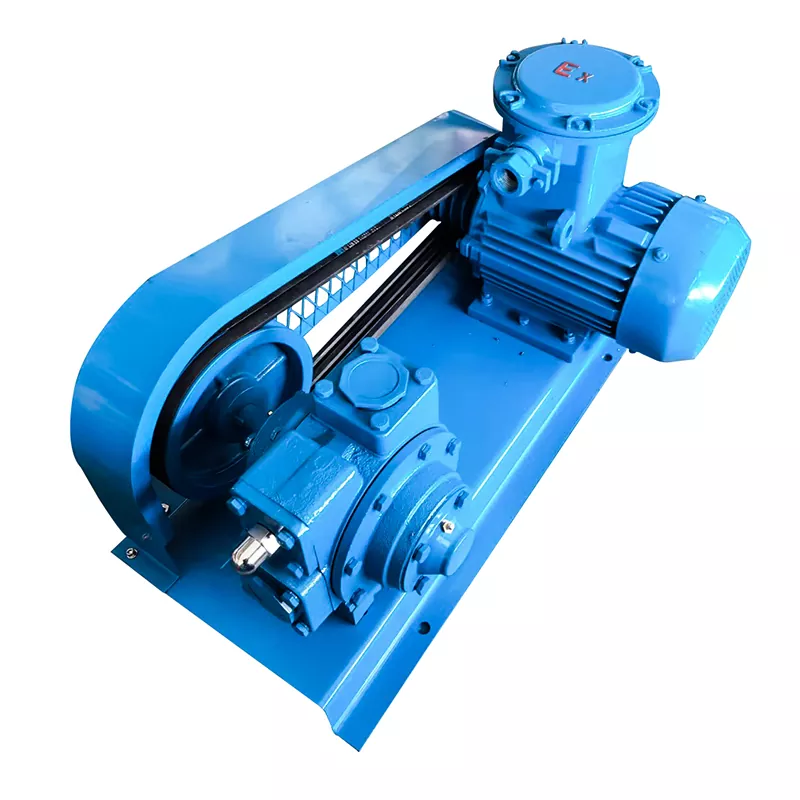

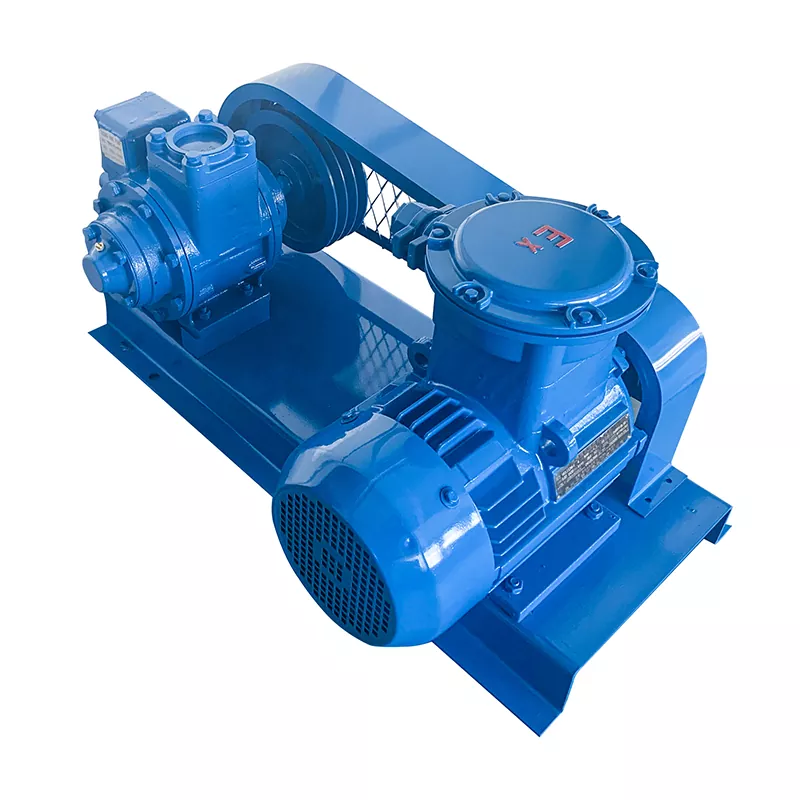

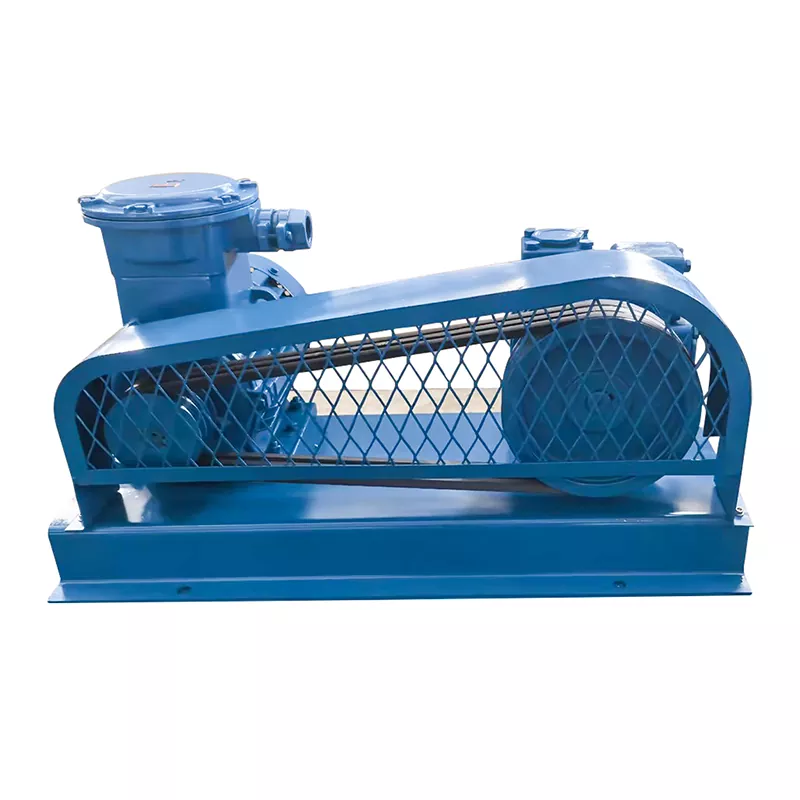

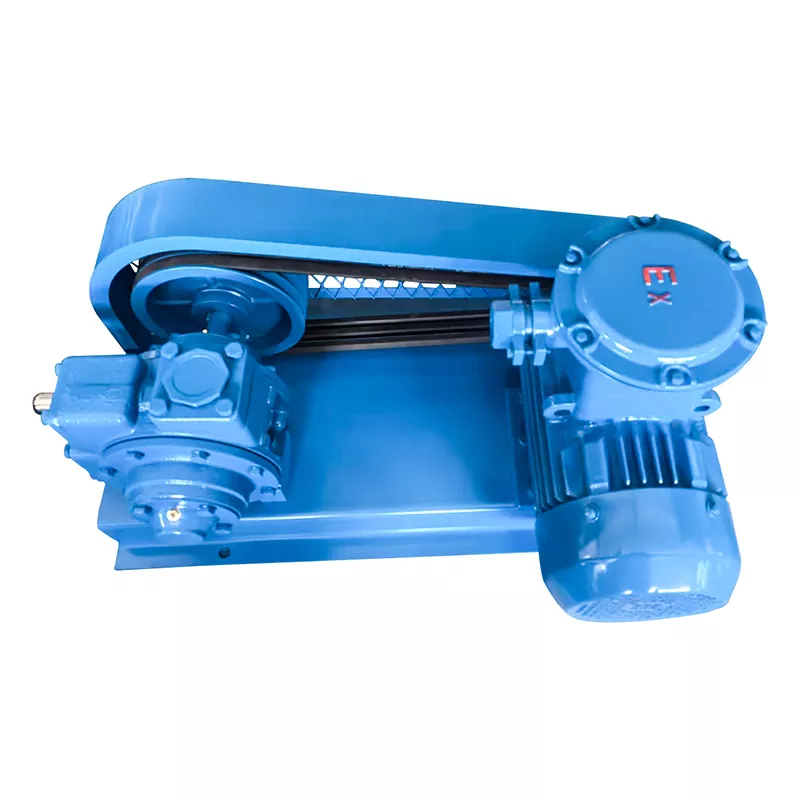

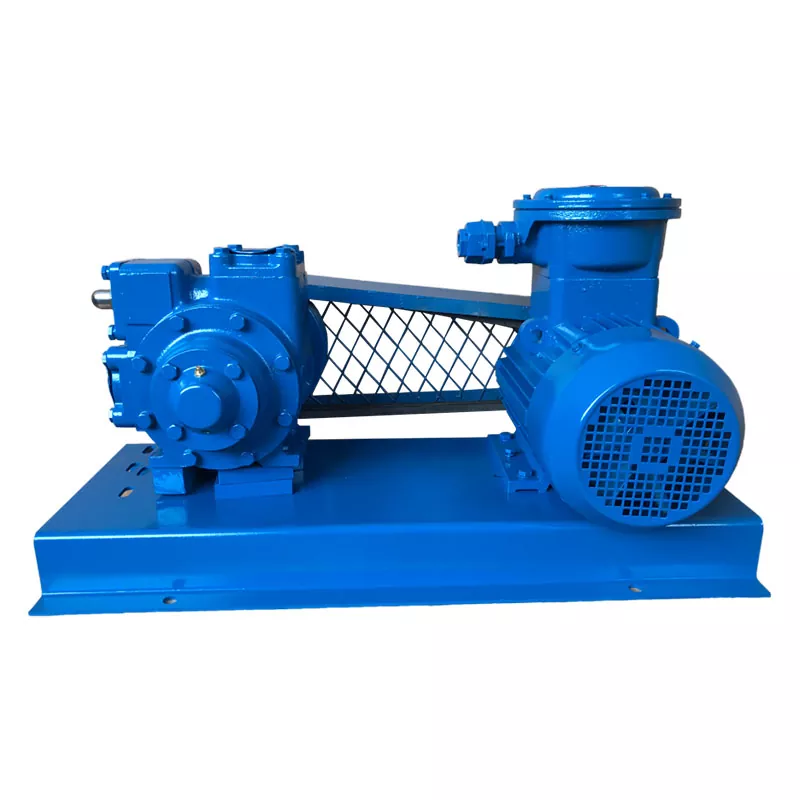

The YB50 fuel pump is a type of positive displacement pump. It incorporates advanced foreign technologies, featuring a rational structure, long service life, compact size, and high efficiency. Equipped with a built-in relief valve, it utilizes a rotor with vanes to transfer liquids. When handling viscous and volatile liquids, it consumes less power compared to other pumps of the same capacity, and offers significant advantages in low-speed, high-flow transfer applications.
|
Material: |
cast iron and ductile iron |
|
Max working pressure: |
1.21 MPa (12.1 bar) |
|
Maximum speed: |
780 rpm ( electric or hydraulic motor) |
|
Maximum temperature: |
149°C |
|
Maximum viscosity: |
0.00425 m²/s (4,250 cSt) |
|
Maximum flow rate: |
120 m³/h (1,999 L/min) |
|
Maximum differential pressure |
0.86 MPa (8.6 bar) |
The YB50 fuel pump is Compact in size, high in efficiency, smooth in operation, and strong in self-priming capability. The flow rate can be adjusted by changing the rotational speed, and the pump can operate normally even when the prime mover is at idle speed, while still meeting flow and pressure requirements.
A relief valve is installed in the pump to prevent motor overload in the event of a sudden closure of the outlet system.
Widely used for transferring non-corrosive industrial liquids and petroleum products.
