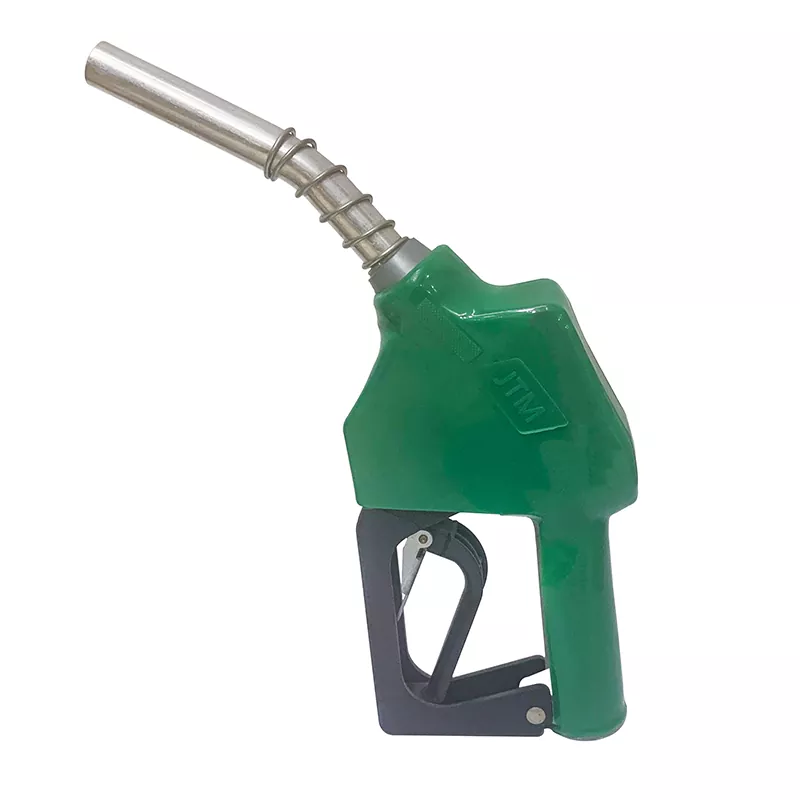

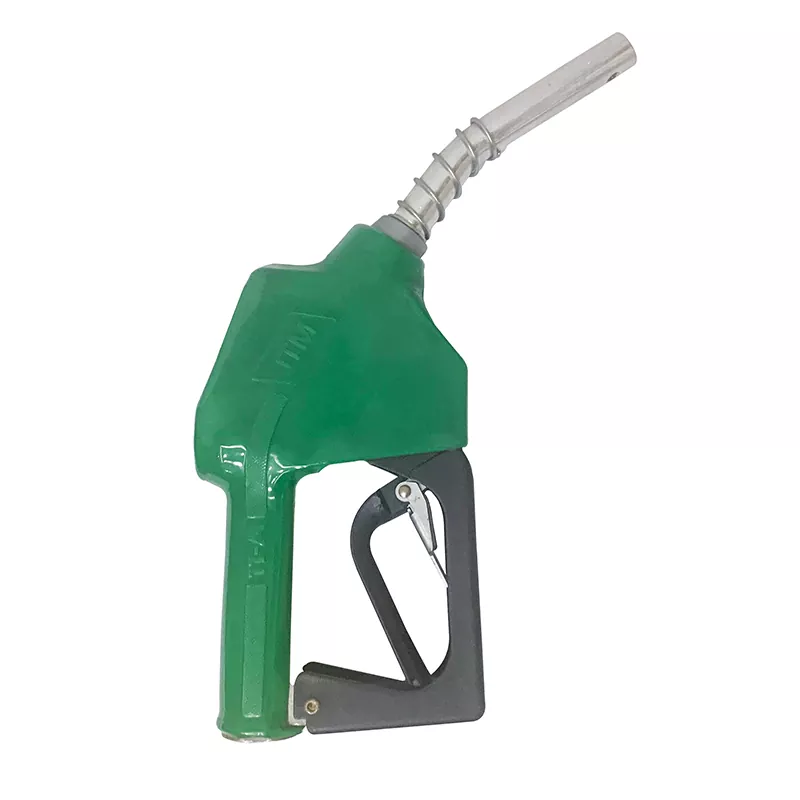

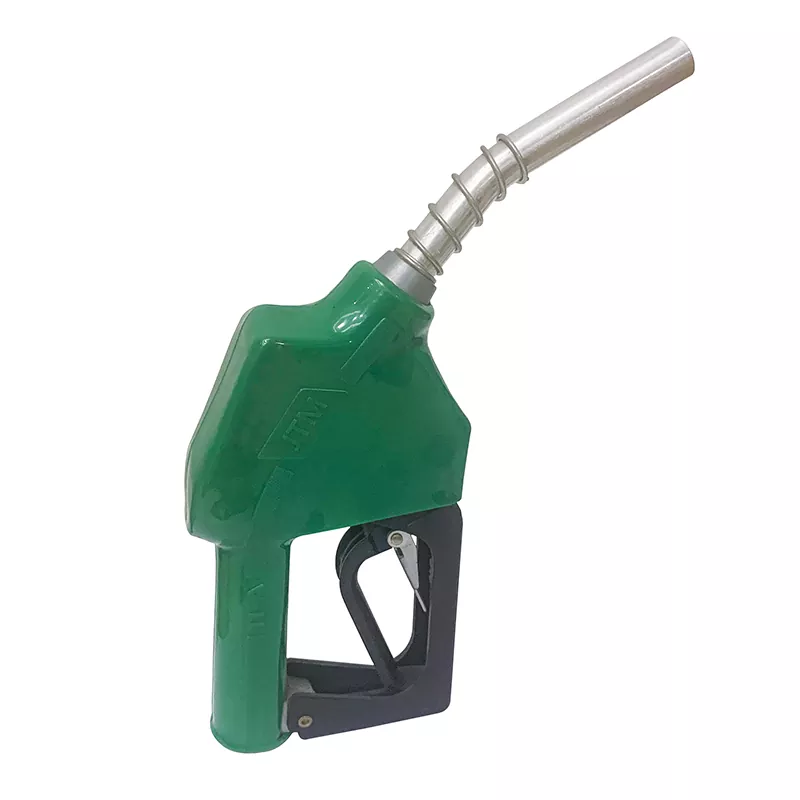

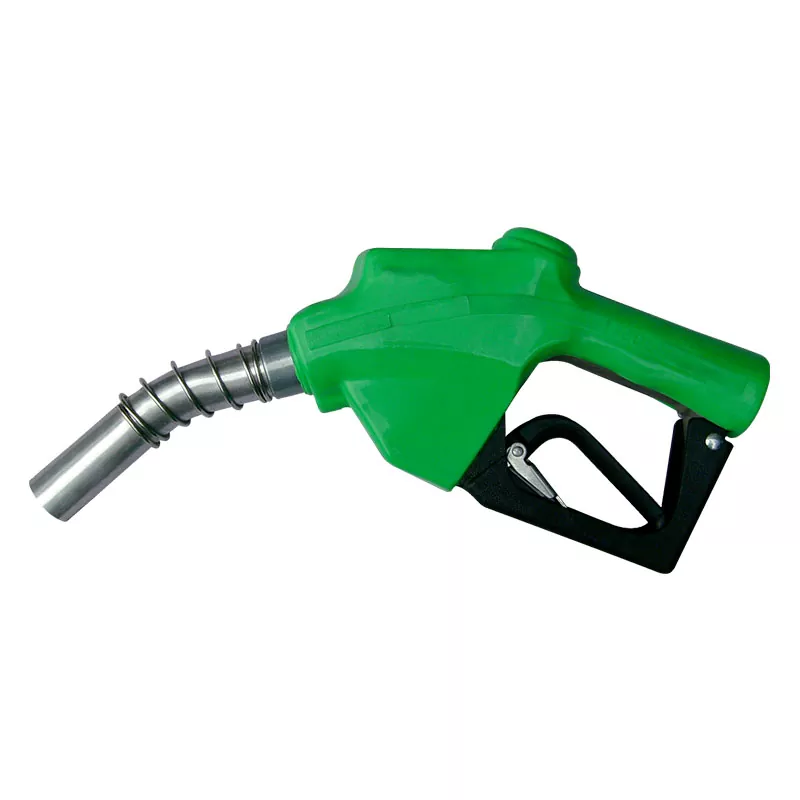

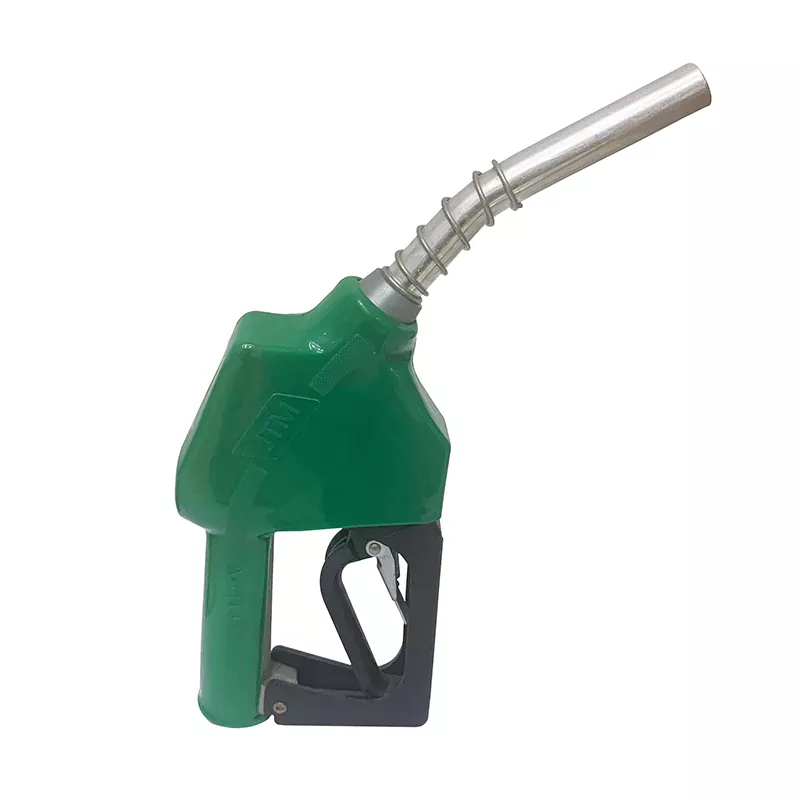

TD-11A Automatic Nozzle

The TD-11A automatic nozzle is a hand-held dispensing terminal designed for use with fuel dispensers. The body is made of high-strength cast aluminum, offering structural strength while keeping the overall weight low, reducing operator fatigue during extended use.

The nozzle is equipped with an internal automatic shut-off mechanism that stops the fuel flow when the tank is full or when fuel contacts the sensing port, preventing spillage and enhancing refueling safety. The inlet thread is available in NPT or BSF 3/4 inch, and the outer diameter of the outlet is 15/16 inch, ensuring compatibility with standard fuel hoses and tank inlets.

Additionally, the nozzle boot is available in five colors: red, green, blue, yellow, and black, allowing gas stations to visually distinguish nozzles for different fuel types or purposes

Product Parameter :

Feature

Lightweight and Durable : Cast aluminum body offers a compact structure, light weight, corrosion resistance, and suitability for heavy daily use.

Automatic Shut-off:  Automatically stops fuel flow when the tank is full, effectively preventing overflows and enhancing safety.

Ergonomic Operation : Designed for easy handling with low lever force, providing comfortable use over long periods.

Standard Connections : 3/4 inch inlet thread (NPT/BSF) for compatibility with standard fuel hoses; 15/16 inch outlet fits common tank inlets.

Multi-color Boot Options : Available in five colors (red, green, blue, yellow, black) for easy fuel type identification and site management.

High Reliability : Internal seals are wear-resistant and fuel-resistant; the shut-off mechanism responds quickly and offers long service life.

Application

Gas Stations: For daily dispensing of gasoline and diesel with fuel dispensers.

Mobile Refueling Units: Suitable for skid-mounted refueling stations and tanker truck-mounted refueling equipment.

Industrial Fuel Transfer: Ideal for fuel dispensing at factories, logistics parks, mines, and other industrial sites.

Agricultural and Construction Machinery: For refueling farm equipment, construction vehicles, generators, and other machinery.

Drum/Tank Fuel Dispensing: Used with small pumps for dispensing fuel from barrels or tanks.

Production Details

TD-11A

TD-120
