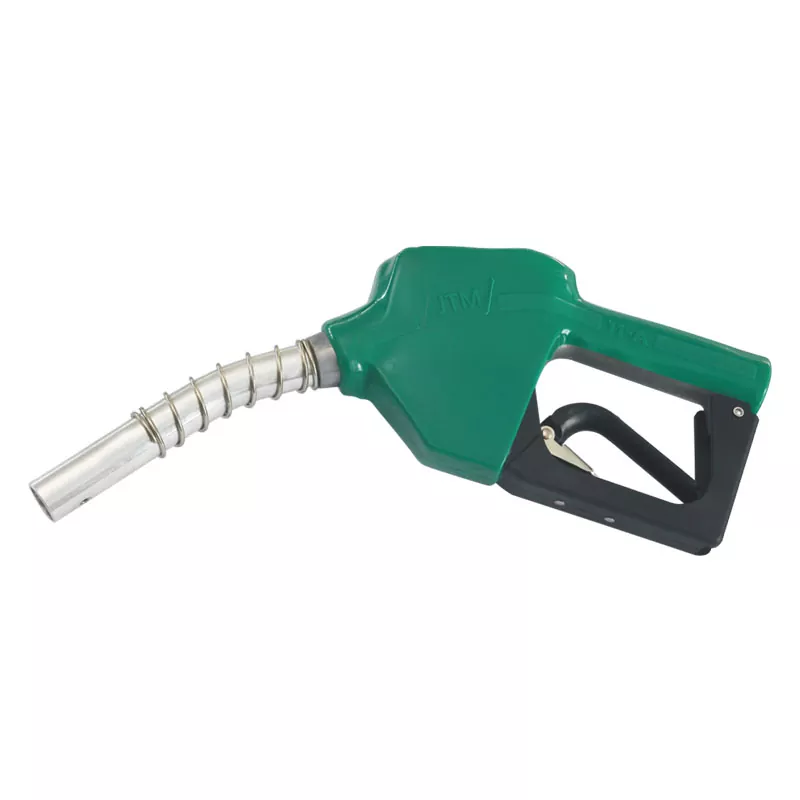

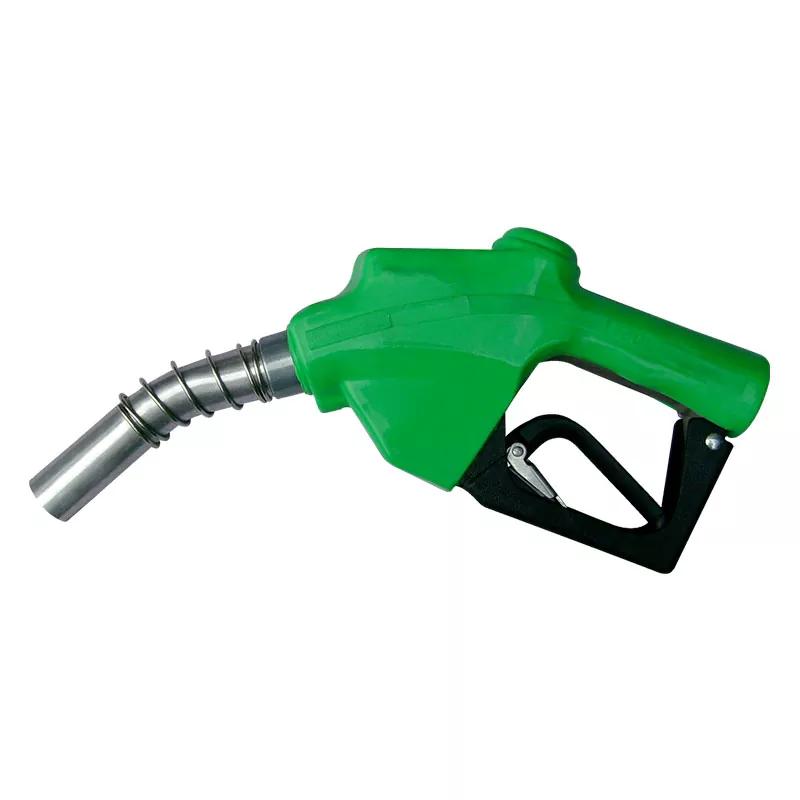

Oil Dispenser Nozzle

Oil Dispenser Nozzle is equipped with two specifications of TD-11A and TD-120, and its insulation components provide five color configurations of red, green, blue, yellow and black. The technical characteristics of the system are as follows: the TD-11A type is equipped with a 3 / 4-inch inlet port, and the TD-120 type is designed with a 1-inch inlet port. The working principle of Oil Dispenser Nozzle is that when the fuel supply stage, the main valve is started, so that the fuel flows through the main body of the device. In the internal structure of the system, the main and auxiliary double valve components operate, in which the auxiliary valve body realizes the opening state through the action of the spring, and finally promotes the fuel to be ejected through the nozzle.

Product Introduction

Oil Dispenser Nozzle is a fuel filling device equipped with anti-overflow function. Its core mechanism is to automatically cut off the oil circuit when the amount of oil in the container reaches the upper limit. The TD-11A and TD-120 series nozzles are made of aluminum alloy materials. The product design fully meets the needs of modern users and ensures ease of operation and safety.

Product Parameter (Specification)

Product Feature And Application

Oil Dispenser Nozzle as a fuel dispenser component, practical for large trucks, buses and other refueling.

1. Accurate flow control allows your customers to top off their tank to the exact amount they want, and it's easy to stop gasoline flow precisely.

2. Heavy-duty, high-flow nozzle.

3. Low cost, long life and durability.

4. High flow nozzle can help increase productivity,sales and profits.

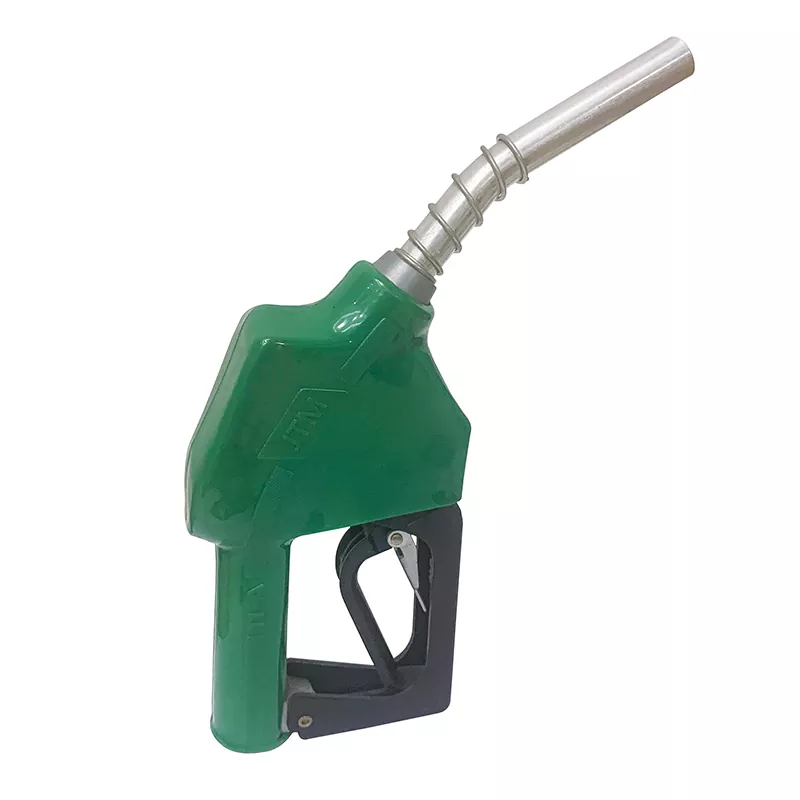

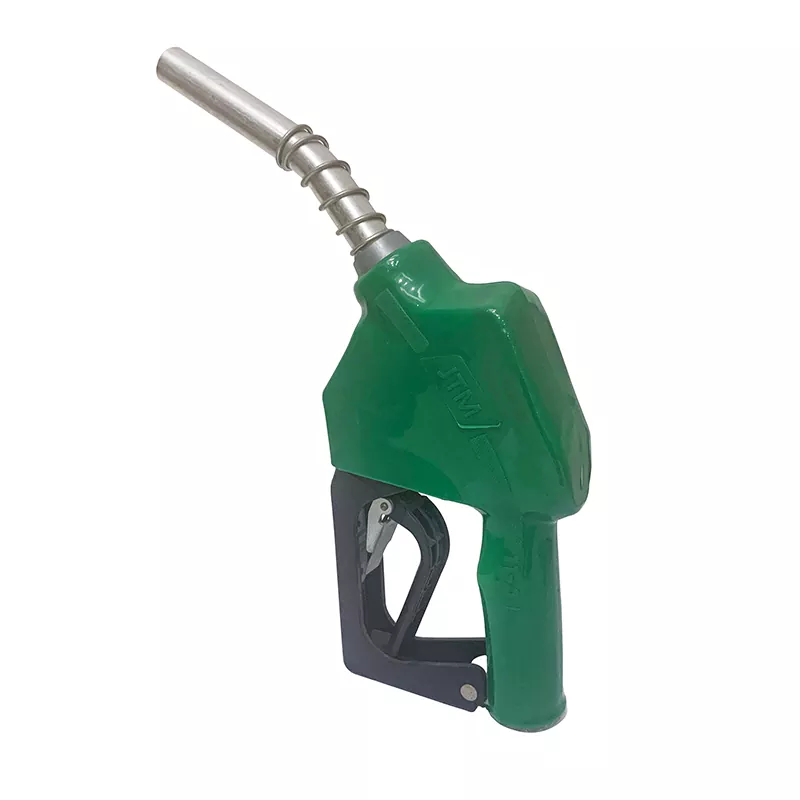

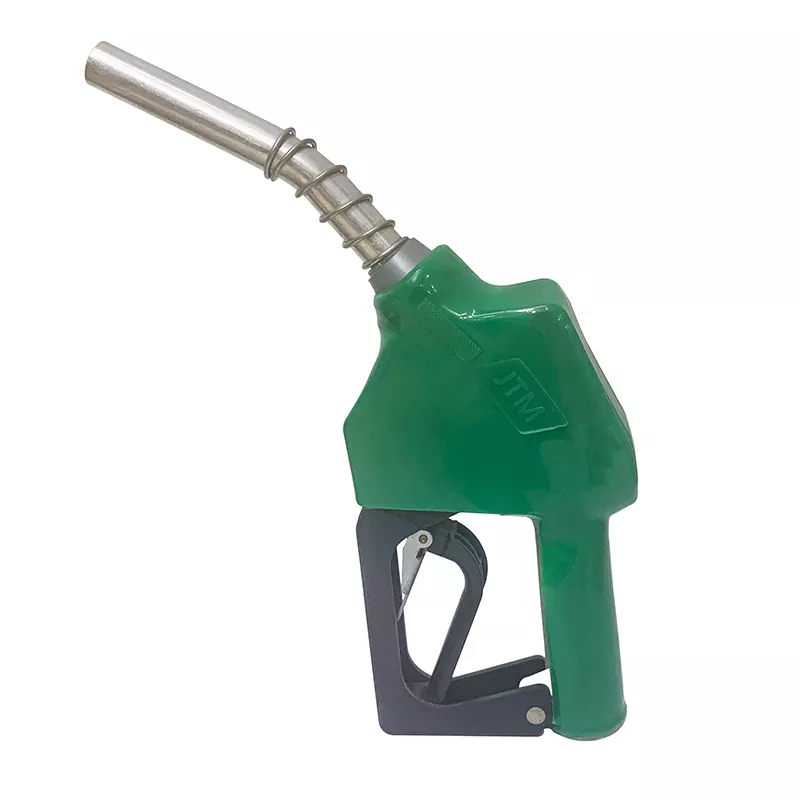

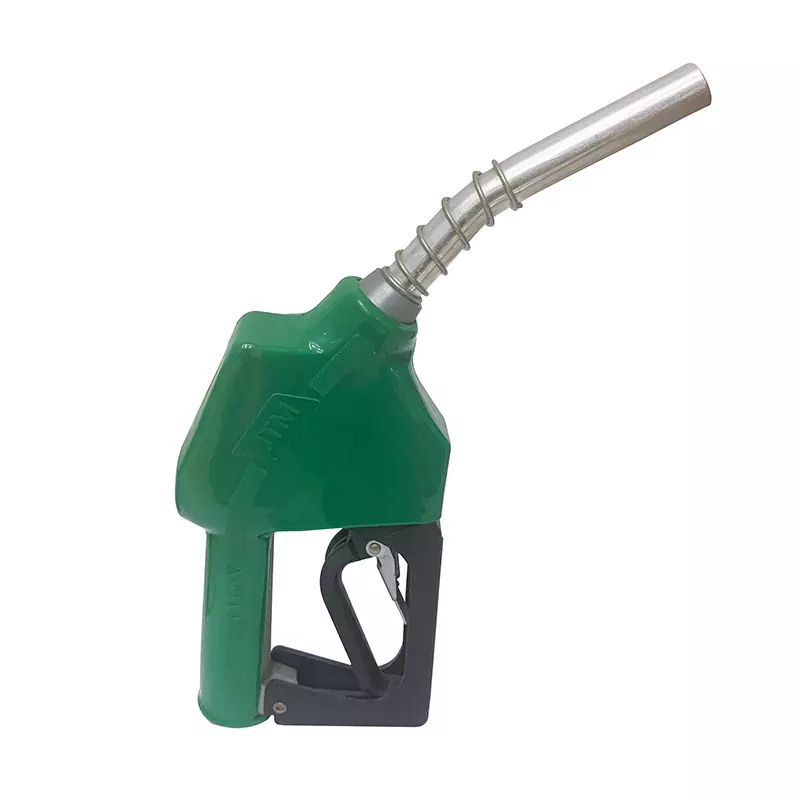

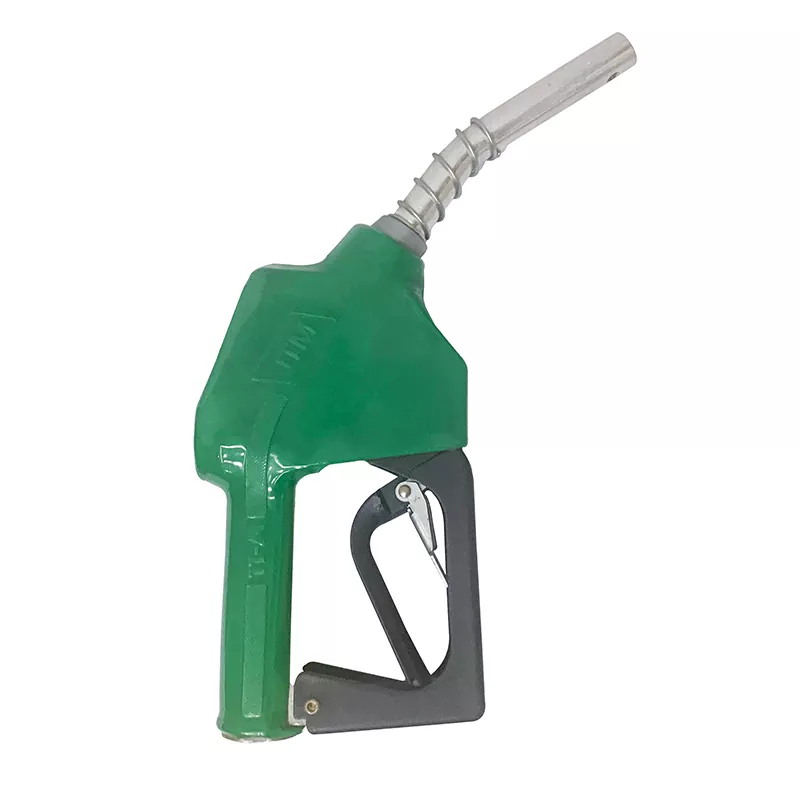

Production Details

TD-11A

TD-120
