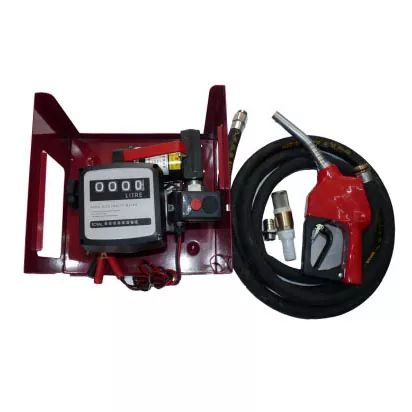

The standard configuration of the Fuel Transfer Pump assembly is: DYB40-DC12 pump, the flow meter is LLJ-120L. Manual oil gun, model J60-A, with bracket. At the same time, you can also choose other configurations of DYB40-DC24 pump , LLJ-40 Gin Gallon flow meters and automatic nozzle according to customer needs. Includes 2M inlet pipe and filter check valve.Various combinations are convenient for you to choose from.
Fuel Transfer Pump is easy to connect to the 3/4＂or 1＂ quick coupling of the drum or tank, with or without flow meter. Fuel Transfer Pump standard equipment include: self-priming pump, meter, 4m.delivery hose, manual nozzle, intake pipe. Automatic nozzle and other accessories are available on request. Flow Meter can be matched with gallon or liter according to customer’s request is available. Mechanical Flow meter can fit for customer’s demand in Gallon or Litre.
|
Model: |
YTB40 |
|
|
Standard |
Power: |
DC12/24V |
|
Flow rate: |
20~40L |
|
|
Hose: |
4m |
|
|
Manual Nozzle: |
J60-A |
|
|
Bracket: |
Yes |
|
|
Option |
Automatic Nozzle: |
Yes |
|
2M inlet pipe: |
Yes |
|
|
Filter check valve |
Yes |
|
The range of Fuel Transfer Pumps is designed to transfer light oils like diesel or kerosene in automotive,construction or other fuel-powered machined equipment.
1.Flexible combination, it have available in standard and optional configurations.
2. High-precision flow meter, easy to rear.
3. Durable nozzle made of stainless steel, with a comfortable grip and automatic design to eliminate spillage risks.
4. 2metres of inlet pipe and 4 metres of hose is very convenient, which can transfer diesel from barrels and tanks to multiple locations.
