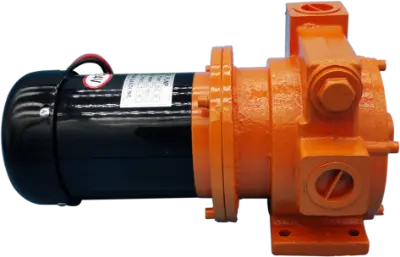

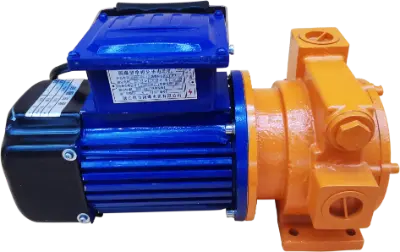

These are two types of oil barrel pumps (with anti-duplication features), The pump body is made of cast iron, and the motor is made of cast aluminum. The core structure is a vane pump. They are usually installed in small filling equipment for use.
Strong medium compatibility
The regular oil drum pump can transport non-explosion-proof media such as diesel and kerosene; the explosion-proof oil drum pump is suitable for flammable and explosive media such as gasoline and alcohol, covering various oil liquid scenarios.
Outstanding performance advantages
The maximum flow rate reaches 100L/min, achieving both "high flow rate and low noise"; equipped with an overflow valve, combined with a working pressure of 0.25MPa, it is safe and reliable to use; the vacuum degree is less than -0.03MPa, with an suction height of 3m and a discharge height of 15m, suitable for the suction and discharge requirements of conventional oil drums.
Flexible power supply
Supports 12VDC and 24VDC direct current power supply. Also compatible with 220VAC alternating current for additional protection. Suitable for various power usage scenarios such as vehicle-mounted and fixed equipment.
Mainly used for the integration of small-scale refueling equipment, it can be applied to:
Oil addition in factory workshops;
Fuel replenishment for logistics vehicles and construction machinery;
Explosion-proof medium transportation in laboratories and chemical plants;
Refilling operations in small oil depots and gas stations.
