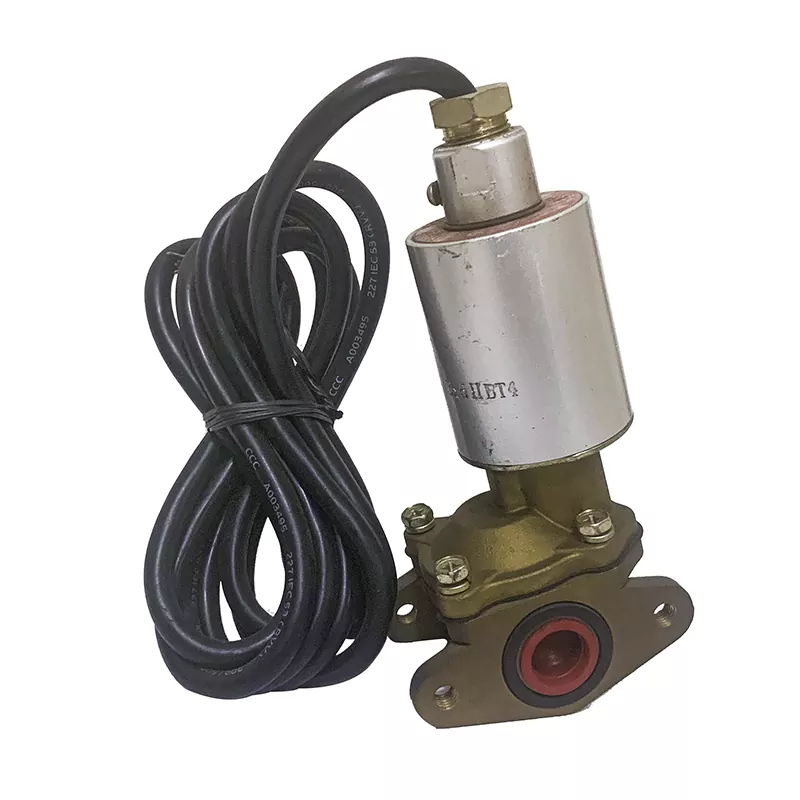

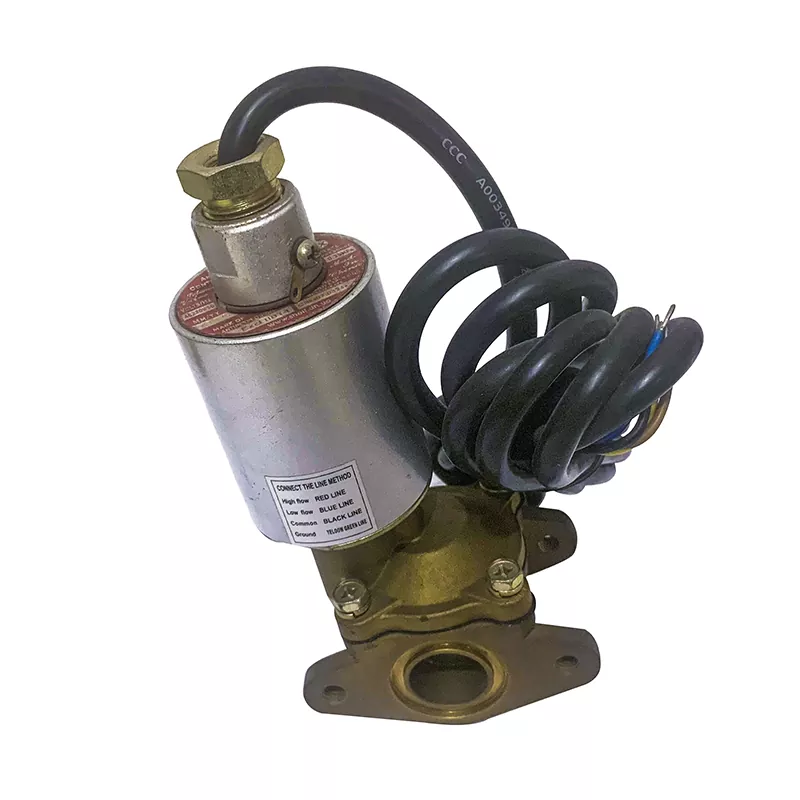

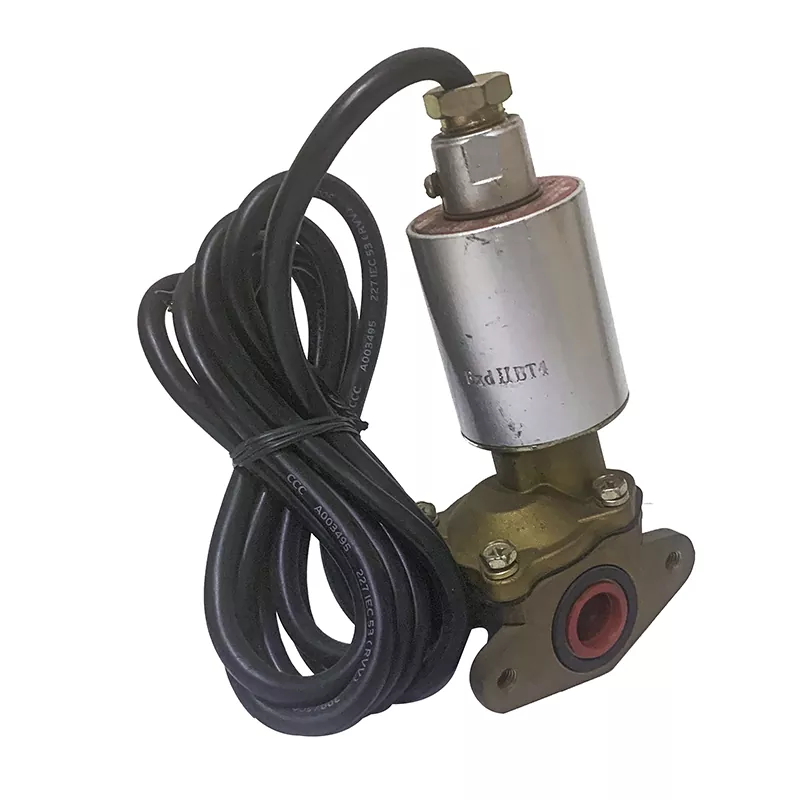

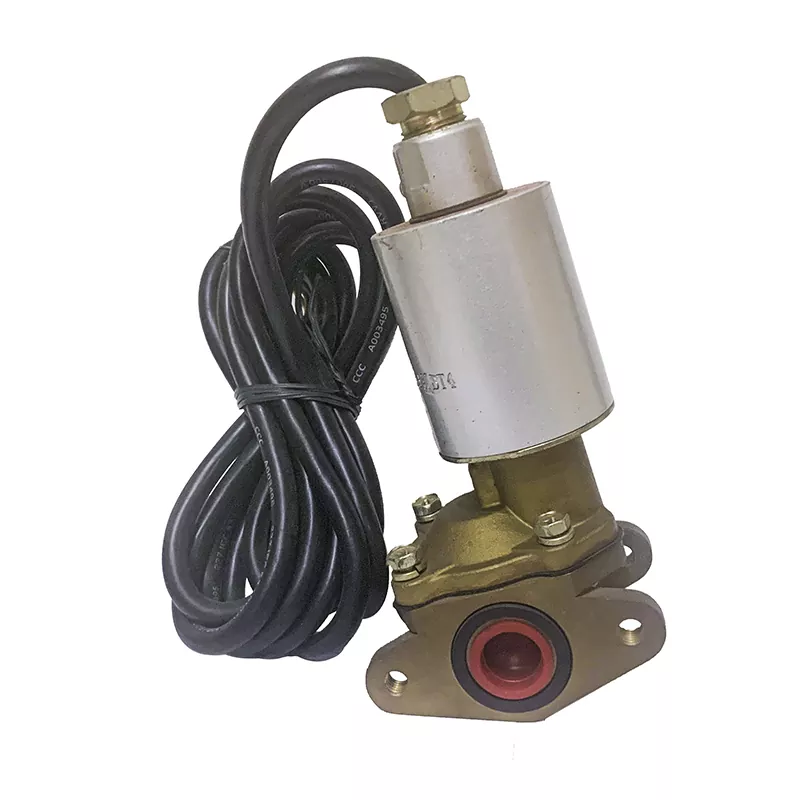

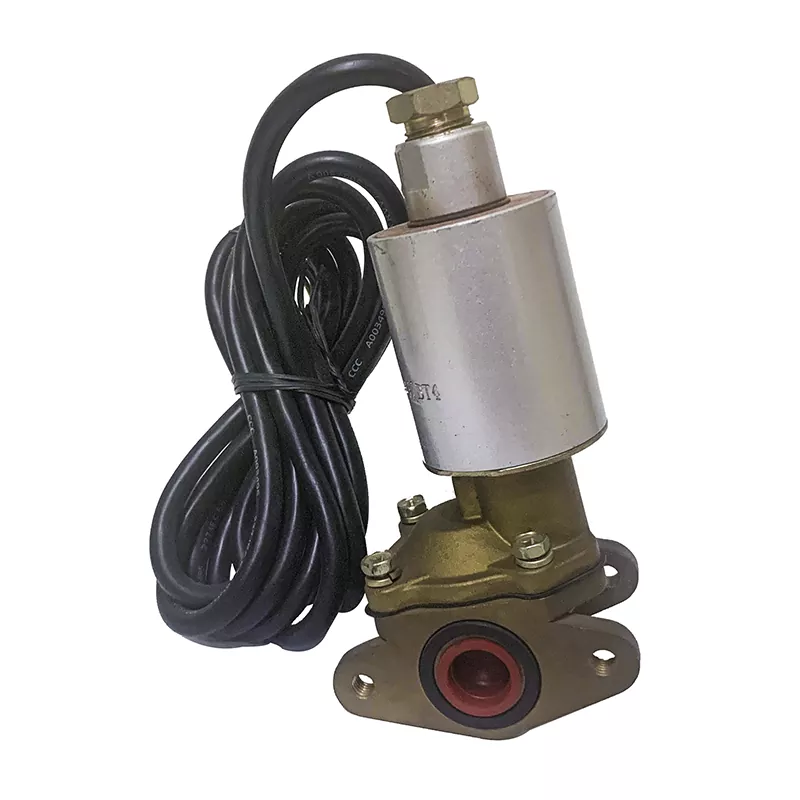

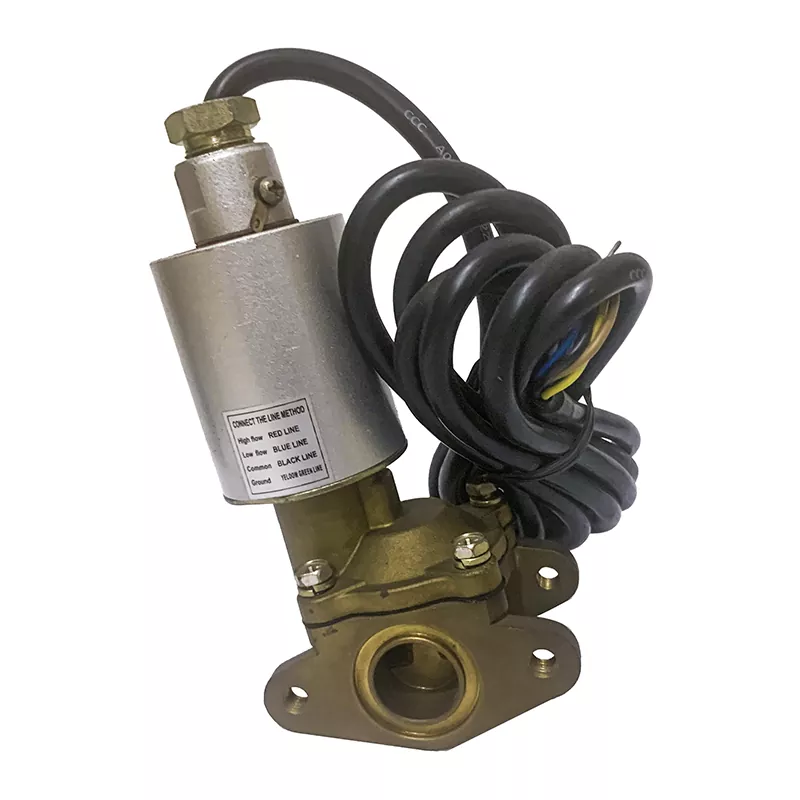

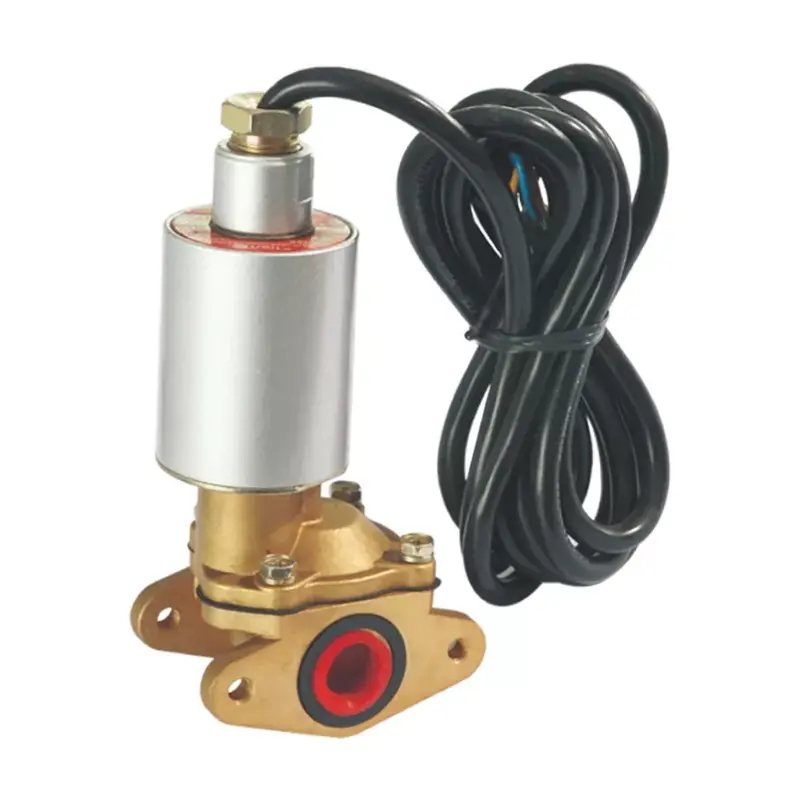

Fuel Dispenser solenoid Valve

This series of Fuel Dispenser solenoid Valve includes DSF-20 and DSF-25 specifications, which are designed for conveying fuel media such as gasoline, diesel and kerosene. The operating pressure range is 0.035-0.35 Mpa, with the DSF-20 model providing 3-50 L/min flow control and the DSF-25 model providing 80-90 L/min high flow capacity. In terms of size parameters, the DSF-20 is equipped with a 20 mm (3/4 inch pipe diameter) interface, and the DSF-25 is configured with a 25 mm (G1 inch standard thread) interface.

Product Introduction

The core role of Fuel Dispenser solenoid Valve in refueling equipment is to improve the accuracy of quantitative refueling operation. The unit is designed for fossil fuel media including gasoline, kerosene and various types of fuel oil. The Fuel Dispenser solenoid Valve has a main valve and an auxiliary valve, when the metering system detects that the oil level is close to the preset value. After starting, the main valve and auxiliary valve are opened to achieve the maximum amount of fuel. When the main valve is closed, a working pressure difference of 0.3-0.4MPa is formed, and the flow rate is 3-4.5Lmin.

Product Parameter (Specification)

Product Feature And Application

1. Fuel Dispenser solenoid Valve adapts parallel solenoid pilot valve control technology, which has the characteristics of sophisticated technology, stable and reliable operation.

2. The core component of the main valve diaphragm is made of specially customized imported rubber material, which not only has excellent corrosion resistance, but also can adapt to the extreme low temperature environment of -40℃.

3. Fuel Dispenser solenoid Valve’s magnetic system uses special stainless steel material to effectively prevent rust and eliminate hysteresis.

4. The coil components are made of imported F-grade enamelled wire, which ensures a low temperature during continuous operation while providing excellent electrical insulation.
