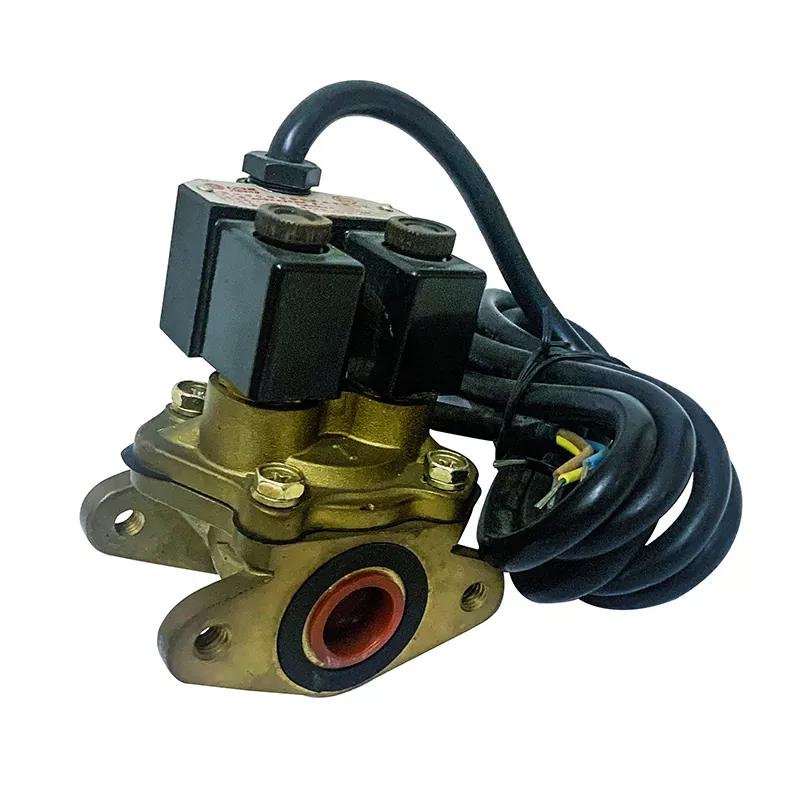

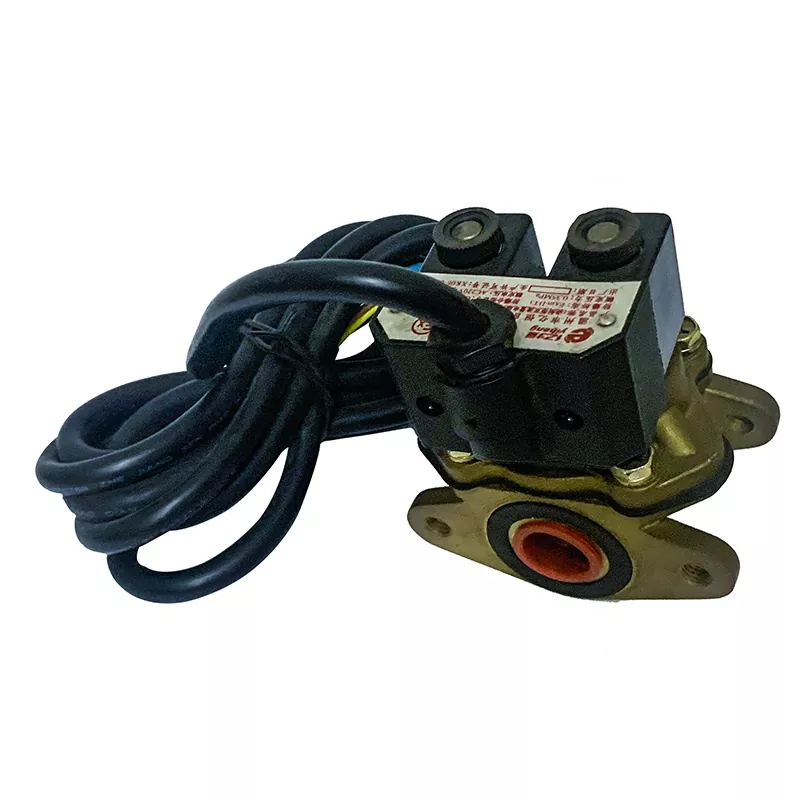

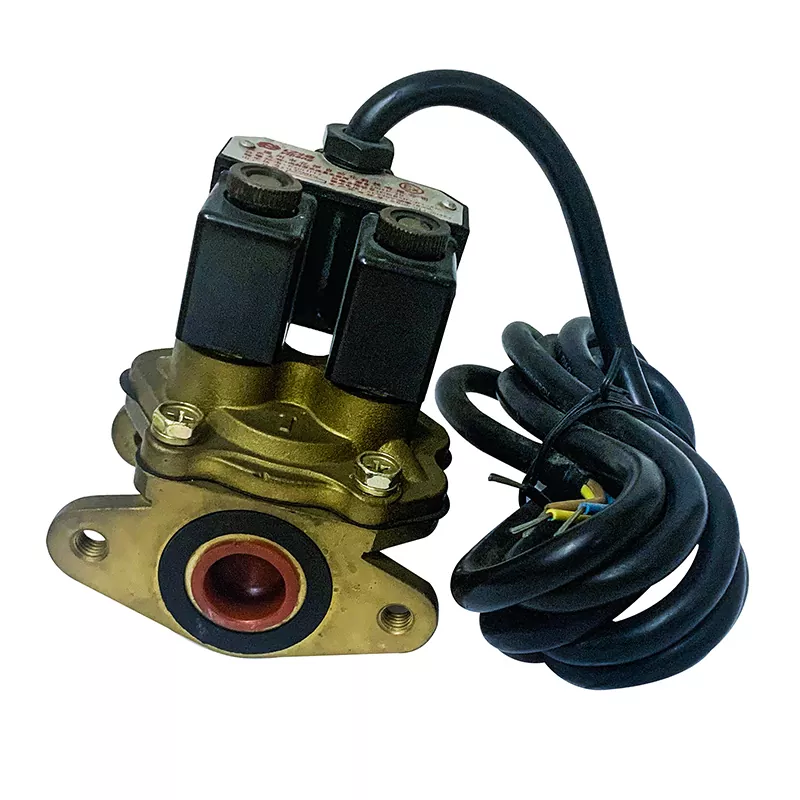

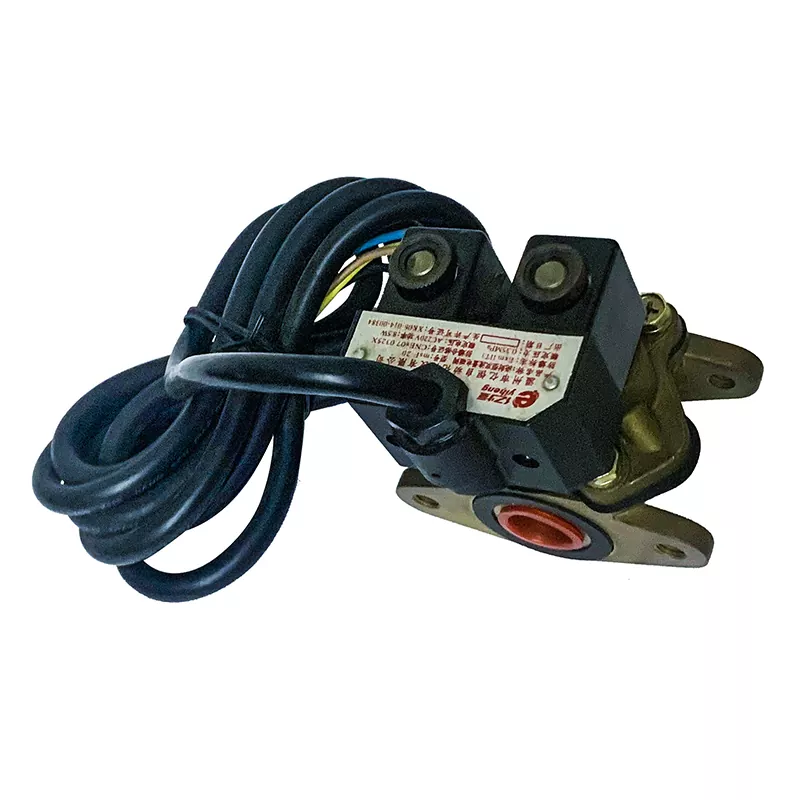

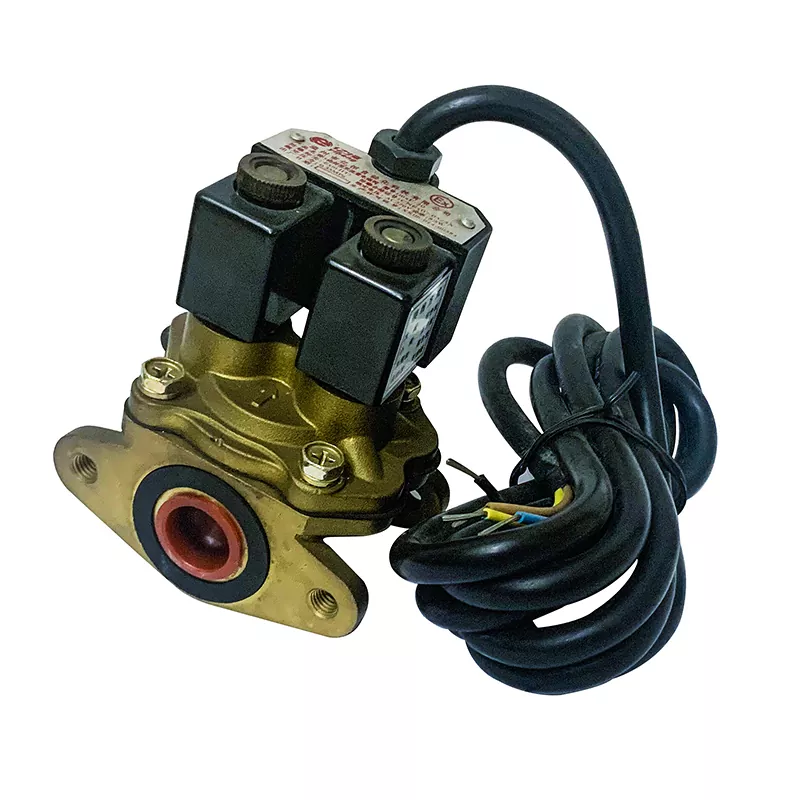

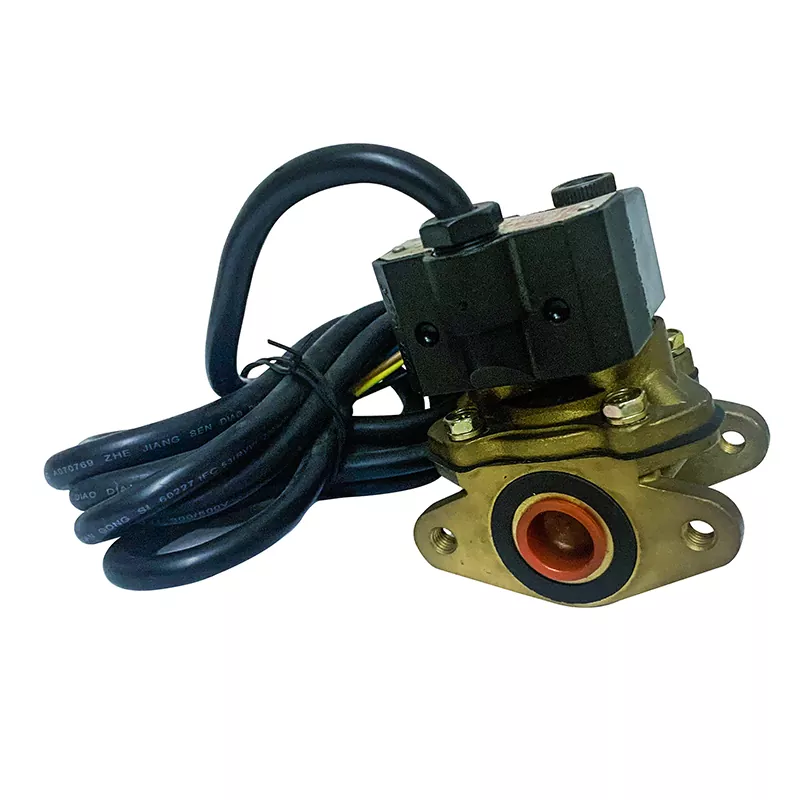

Solenoid Valve for Fuel Dispenser

The MSF-20 and MSF-25 Solenoid Valve for Fuel Dispenser belong to the special series of fuel dispenser equipment, which is suitable for industrial transportation scenarios of gasoline, diesel and kerosene. Its interface specifications: the former uses 20mm caliber, the latter is equipped with 25mm interface. In terms of performance parameters, the system operating pressure uniformly covers the 0.035 to 0.35 Mpa range, and the flow output capacity MSF-20 from 3 to 50 L/min, while the MSF-25 specializes 80 to 90 L/min. The range meets the need for precise control of fuel transfer efficiency.

Product Introduction

Solenoid Valve for Fuel Dispenser system in the refueling equipment enables the quantitative refueling function through precise flow control. The device is mainly used in oil transportation, covering gasoline, kerosene and various fuel oil and other media. The solenoid valve group is composed of a main control valve and an auxiliary regulating valve. Solenoid Valve for Fuel Dispenser’s working principle is: when the fuel metering system detects that the oil level is about to reach a preset value, the system will open the main and auxiliary valves at the same time to ensure the maximum fuel flow rate. After the main valve is closed, a pressure difference environment of 0.3-0.4MPa is formed, and a fine flow rate of 3-4.5 L/min is maintained.

Product Parameter (Specification)

Product Feature And Application

1.The Solenoid Valve for Fuel Dispenser adopts the electromagnetic pilot control of parallel structure, and realizes the high stability and lasting reliability of the equipment operation through the precision process.

2.The main valve diaphragm not only has excellent chemical corrosion resistance, but also can meet the needs of-40 °C ultra-low temperature conditions.

3.The magnetic circuit components are made of anti-rust special stainless steel, which can effectively eliminate the remanence phenomenon of ferromagnetic materials and ensure the efficiency of electromagnetic response.

4.The coil winding adopts the imported wire material of the international F-level insulation standard, and has the industry-leading insulation protection level.

Production Details
