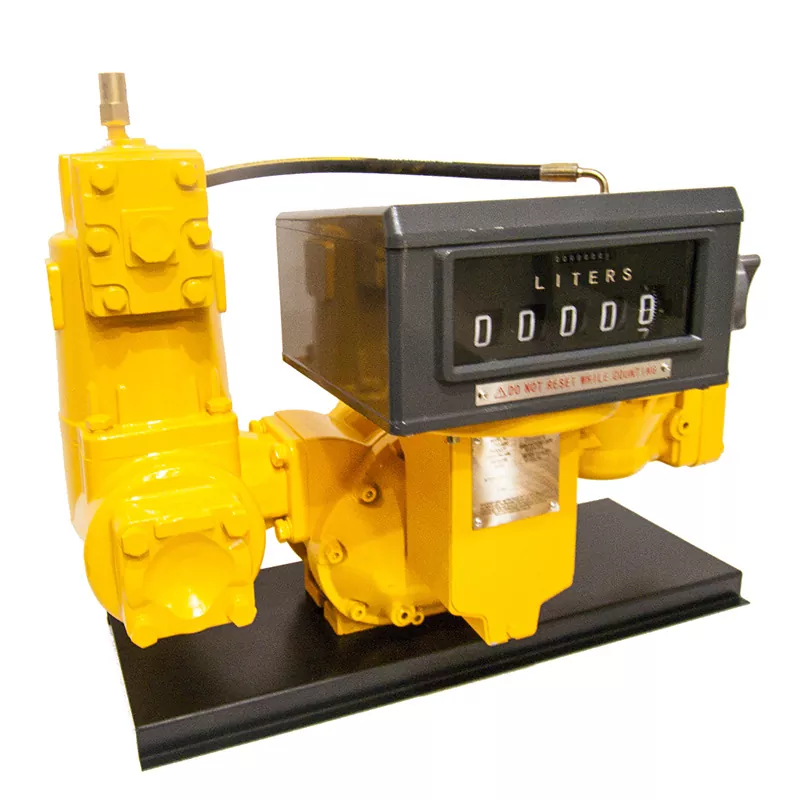

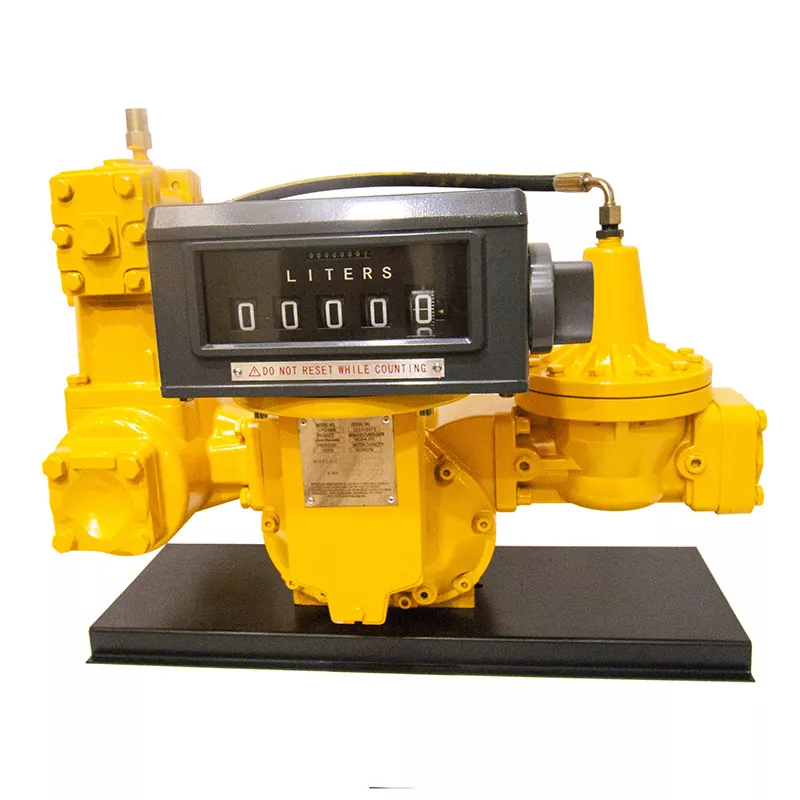

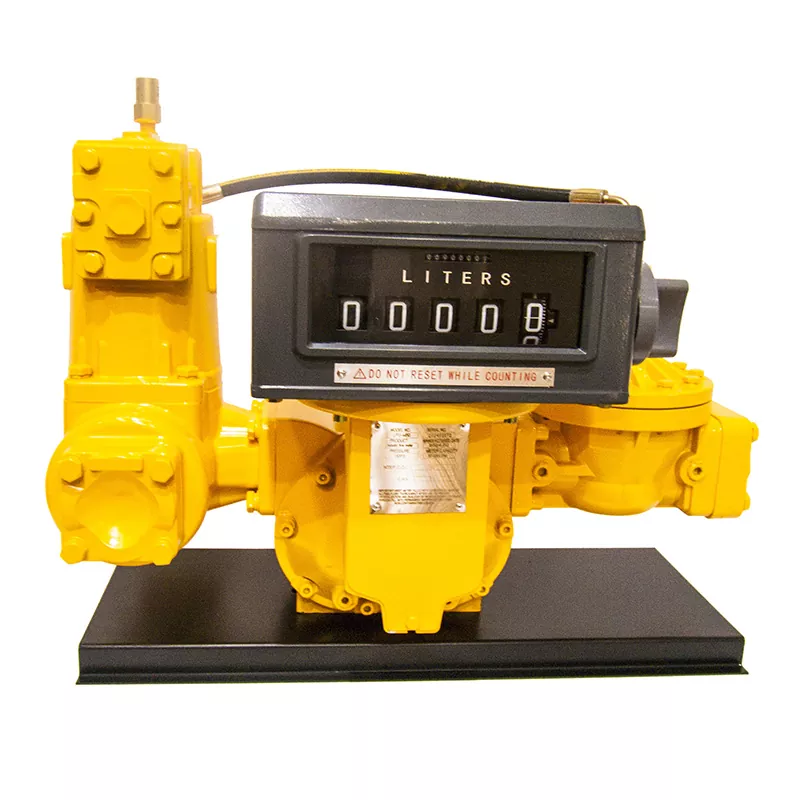

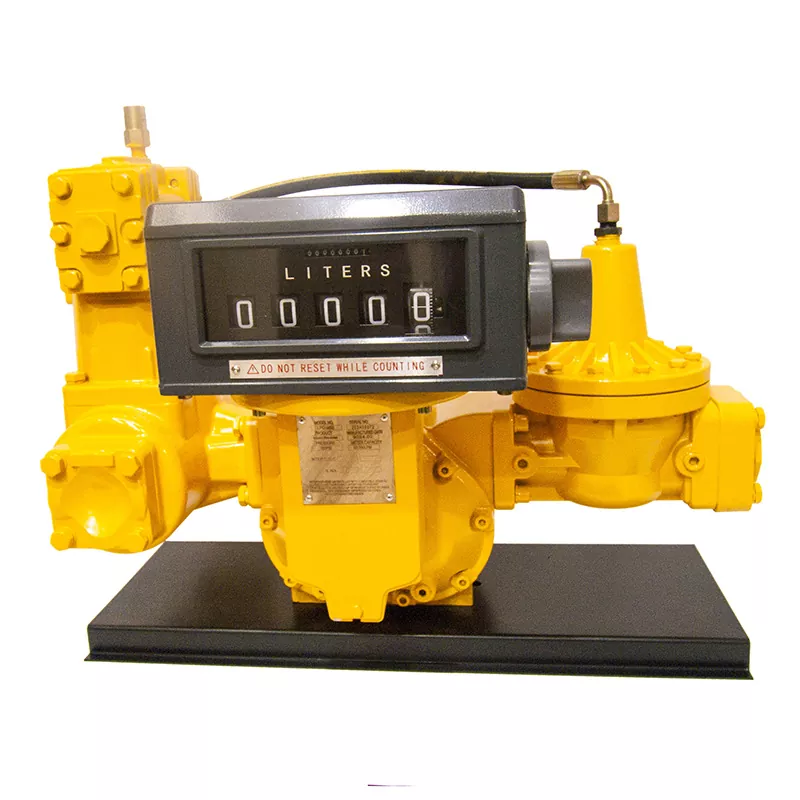

LPG Flowmeter

Simple in design yet effective in metering, the LPG flowmeter consists of a frame and three rotors that rotate in the same direction inside the meter. The flow tanks are isolated from metal-to-metal contact to ensure the accuracy of the meter, which is controlled to ±0.20%, and at the same time, the service life is extended. The rotors are supported by bearings inserted between two bearing disks, and at the end of each rotor shaft is a timing gear. By means of the timing gear each rotor is rotated at regular intervals, so that the transfer from the scale regulator to the register is made, thus producing identical and highly accurate measurements.

Product Parameter (Specification)

Feature

1. Measuring accuracy

Excellent infinite fine-tuning device (wear compensation device), can be positive and negative calibration of the flowmeter, comes with a differential pressure valve, to make sure that the flowmeter liquefied gas for the liquid state, make the accuracy of measurement highly.At the same time, the measurement results are not affected by external influences. Changes in temperature, pressure and viscosity do not affect the measurement results.Although the measuring range is large, it does not affect its high accuracy and repeatability in this range.

2. Longer service life

After the start of use, LPG flowmeter do not need to deliberately to maintain, because it pressure loss is small, is a real gravity flow meter, accordingly, its wear and tear is small, will not appear with the use of the situation of the bad.

Application

1.Refined petroleum products, unleaded gasoline, leaded gasoline, diesel fuel, kerosene, fuel oil, ethylene glycol (antifreeze), propylene; motor oil, rotary photocopying inks

2.Aviation fuels, jet fuel

3.A large range of different products: liquid sugar, cereal slurries, dextrose, fructose, sucrose, maltose, lactose, grain oils, soybean oils, cottonseed oils, coconut oils, and more.

Production Details
