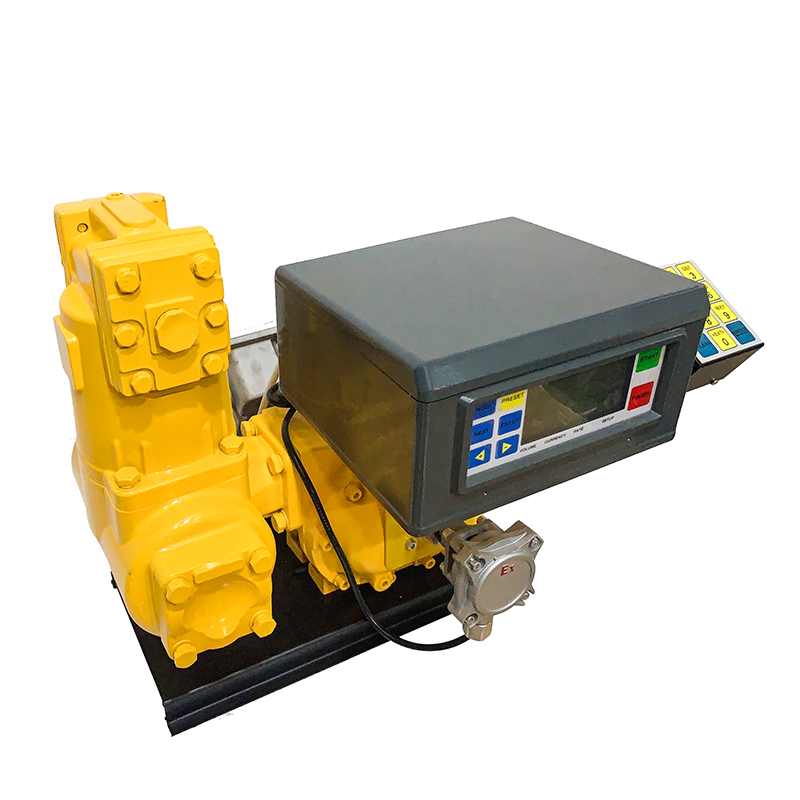

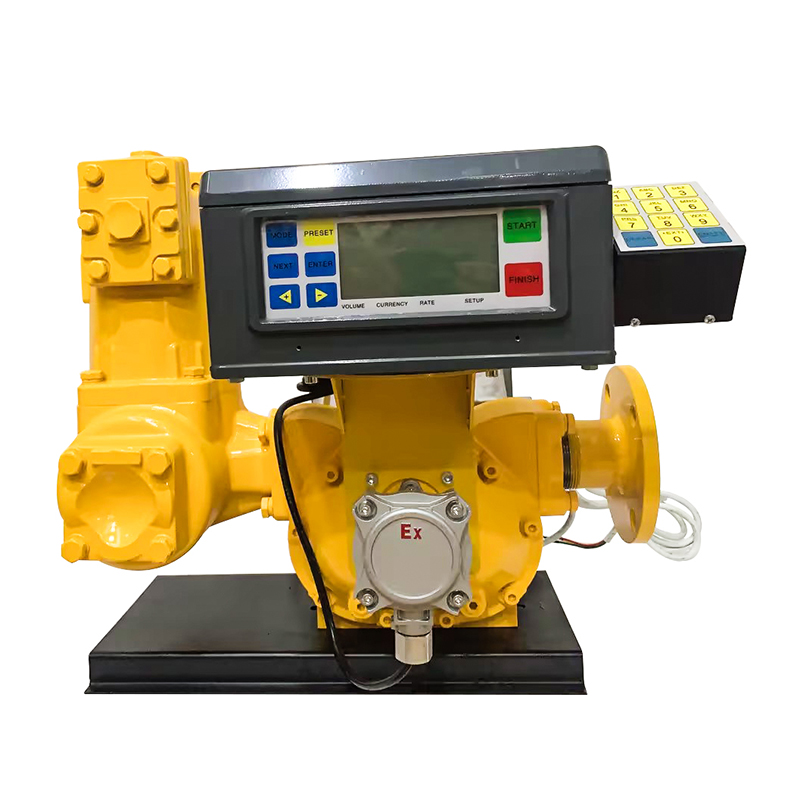

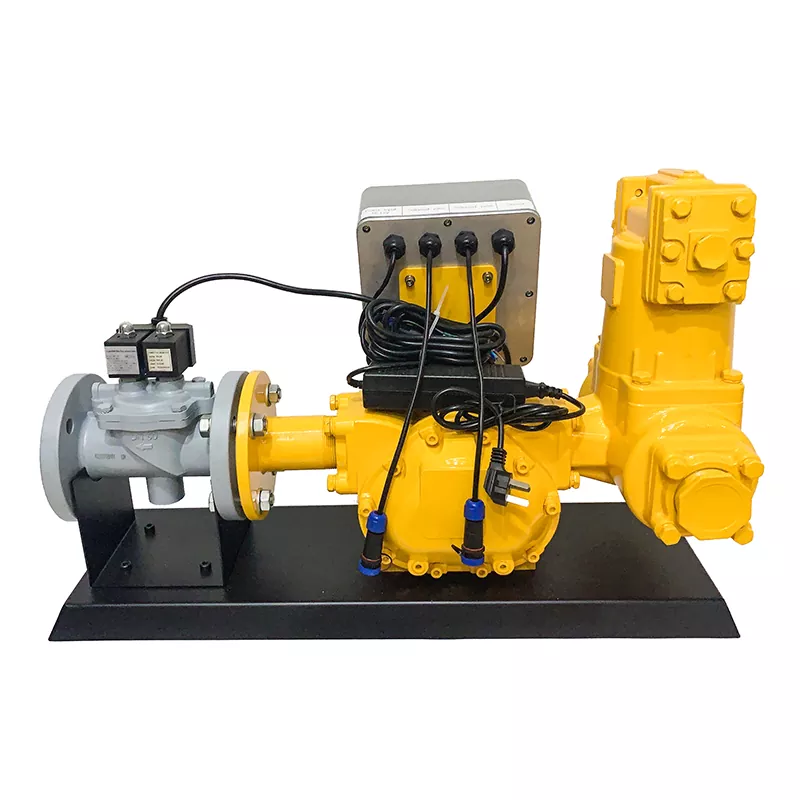

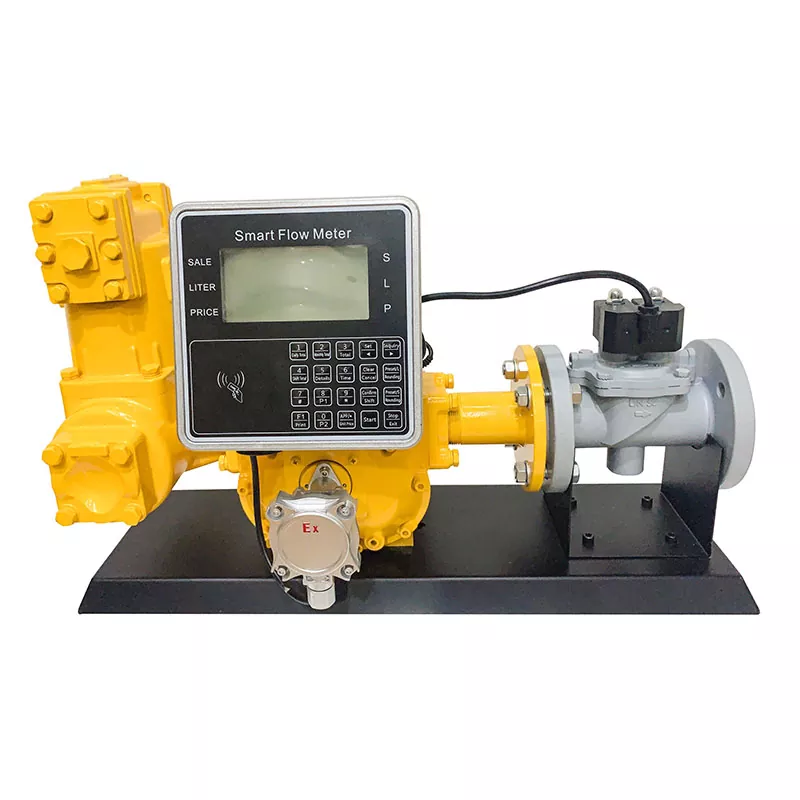

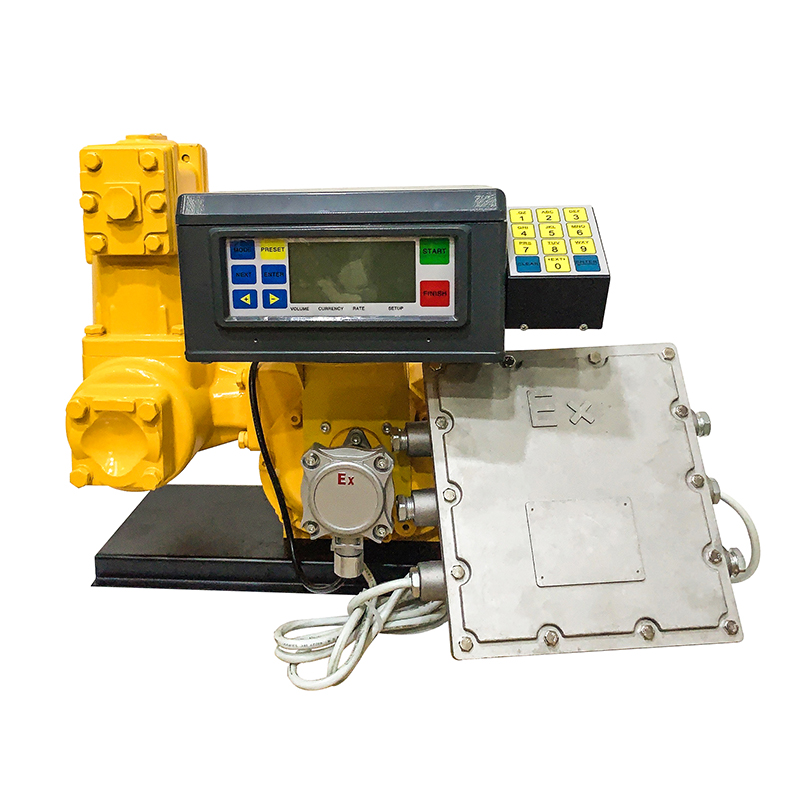

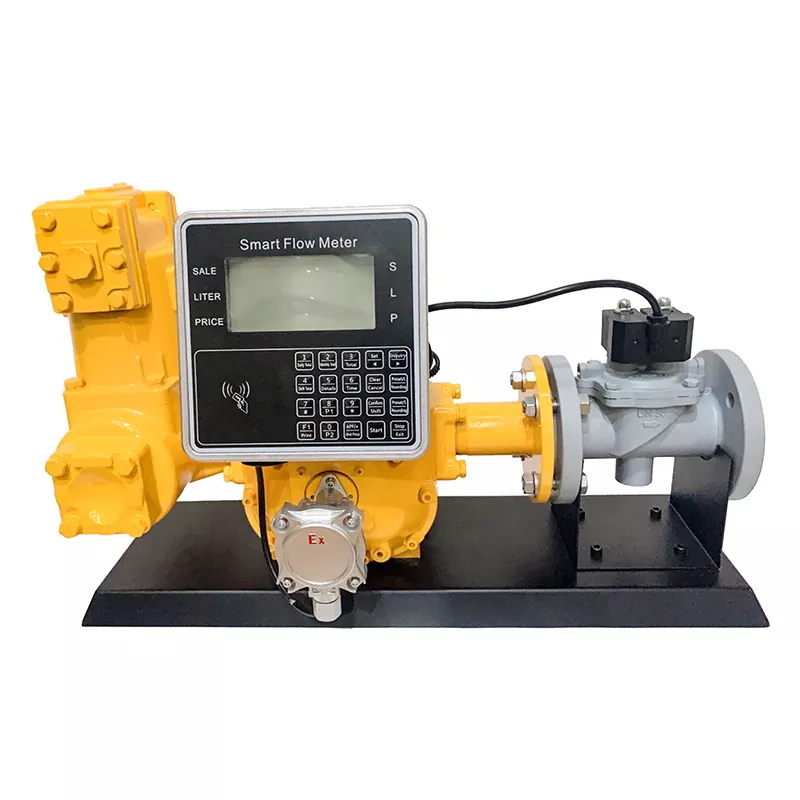

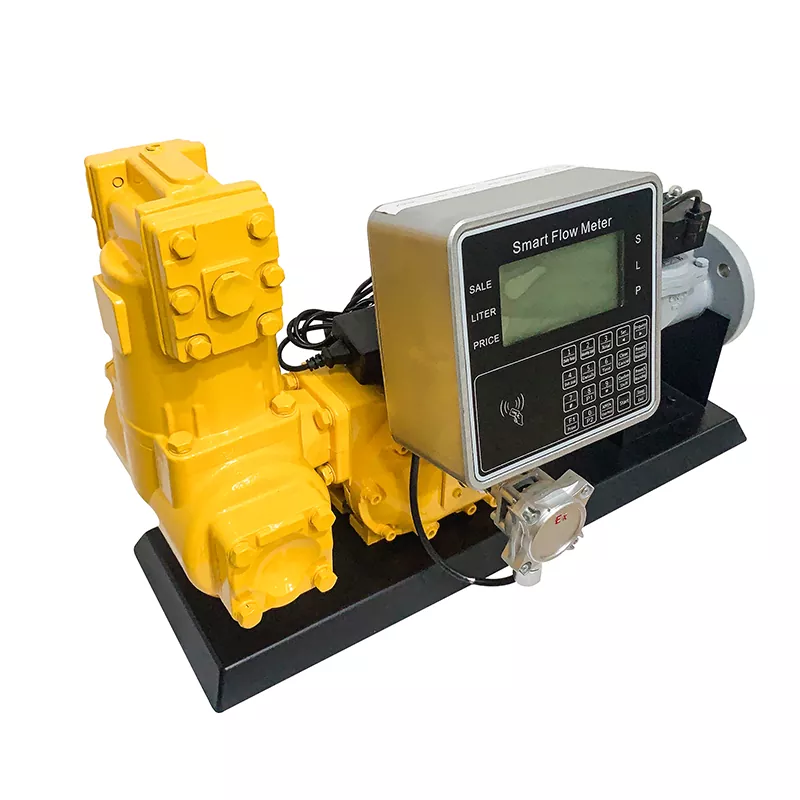

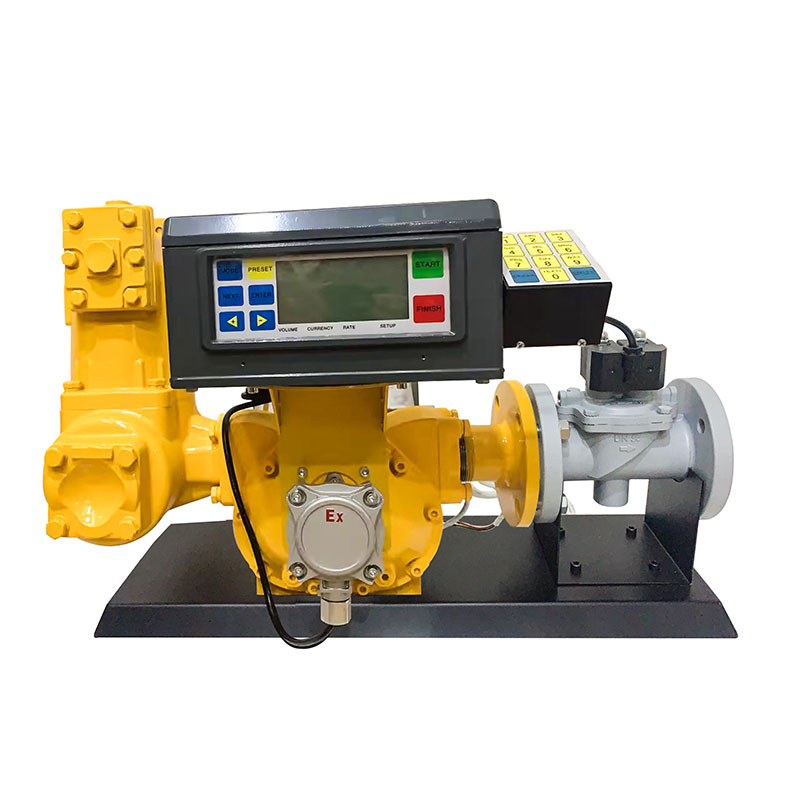

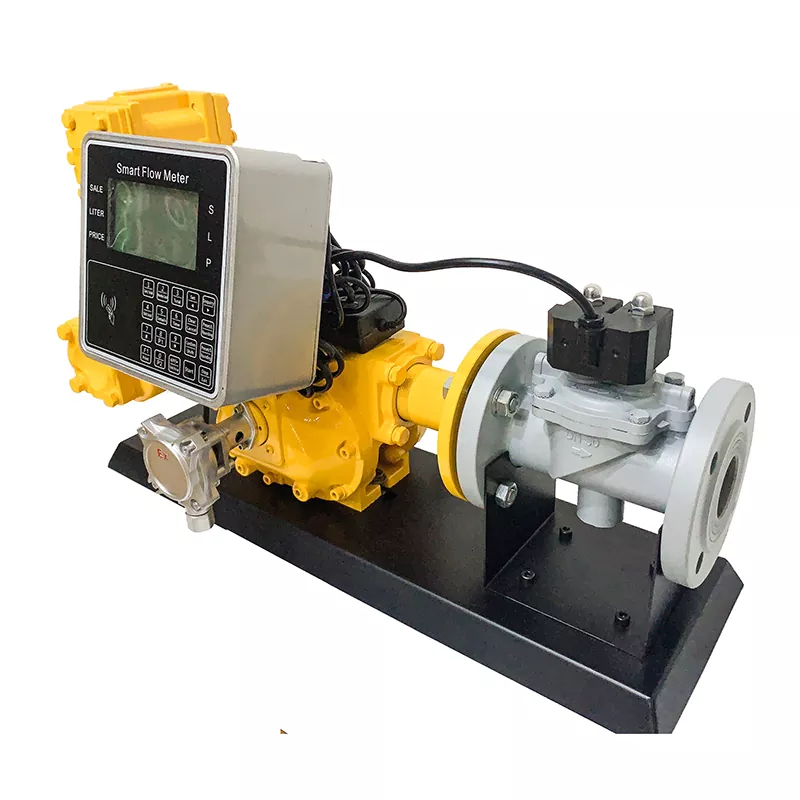

SUPERTECH Digital Flow Meter for Diesel Fuel is a intelligent fuel flow meter, equipped with strainer, oil-gas separator, air eliminator, intelligent flow meter, solenoid valve.Smart flow meter, high precision, can be operated online, supports 2G/4G. When the network encounters unexpected situations or other failures, it can work offline, refill automatically and save transaction data; when the digital Flow Meter for Diesel Fuel network system is restored, it automatically returns to the online working state.
|
Model |
M50 |
M80 |
|
Flow rate |
55~550L/min |
110~1100L/min |
|
Size |
50mm/2’’ |
80mm/3’’ |
|
Repeatable tolerance |
≤0.1% |
≤0.1% |
|
Volume per Revolution |
0.681L |
1.839L |
|
Accurancy |
≤±0.2% |
≤±0.2% |
|
Working pressure |
1.0Mpa/150PSI |
1.0Mpa/150PSI |
|
Register/Totalizer |
6digit/8digit |
6digit/8digit |
|
Max Viscosity |
800cps/3850 SSU |
800cps/3850 SSU |
|
Unit |
Liter/Gallon |
Liter/Gallon |
1. Accurately measure the amount of oil and upload the refueling data to the cloud in real time.
2. Digital Flow Meter for Diesel Fuel support mobile phones and web pages to actually view data, modify parameters, and remotely control.
3.Digital fuel Flow Meter support wireless data upload and real-time monitoring of the working status of the filling machine.
4.Automation of information collection: Use a complete management system to automatically collect transaction data, fundamentally eliminate the drawbacks of manual management and improve management level.
1.Suitable for refined petroleum products：gasoline, kerosene, diesel, fuel oil, ethylene glycol (antifreeze), propylene, motor oil, aviation fuel, jet fuel, crude oil.
2.Truck fleets, gas stations, large-scale digital management
3.Loading and unloading of petroleum products from tanker trucks and large oil storage tanks
4.Oil filling equipment is used in large trucks and airports
