Oil Flowmeter

The industrial flowmeter is equipped with an outstanding infinitely adjustable device (belonging to the category of foreign compensation devices), which can perform positive and negative calibrations on the flow rate, easily handling complex measurement scenarios. Within an extremely wide flow range, it combines high precision and high repeatability, with superior accuracy under constant flow conditions, accurately capturing even the slightest changes in flow. Moreover, the measurement accuracy is not affected by pressure fluctuations, temperature changes, or fluid viscosity, and it is suitable for various working conditions, with low pressure loss and energy-saving efficiency. The measurement chamber adopts a non-metallic contact design, reducing component wear from the source, significantly lowering maintenance costs, extending the equipment's service life, and facilitating long-term stable operation.

Product Parameter (Specification)

Feature

1、Intelligent wear compensation：Continuous fine-tuning device ensures real-time calibration accuracy, and automatically corrects positive and negative deviations.

2、Ultra-wide range and high precision：±0.2% industry-leading accuracy, repeatability≤0.10%, range 55 - 1150 L/min (span ratio 10:1)

3、Multi-material anti-corrosion：Three specifications of aluminum/iron castings/stainless steel, resistant to acid and alkali, and anti-sulfur corrosion (for use in crude oil/chemical media)

Application

1、Refining production: Crude oil (including heated high-viscosity crude oil), ethylene, ethylene glycol antifreeze ratio

2、Solvent control: Batch filling of propylene and light hydrocarbon raw materials

3、Heat transfer system: Monitoring of high-temperature conductive oil flow (supporting medium at 150℃)

4、Fuel supply: Kerosene/oil-fired boiler energy management

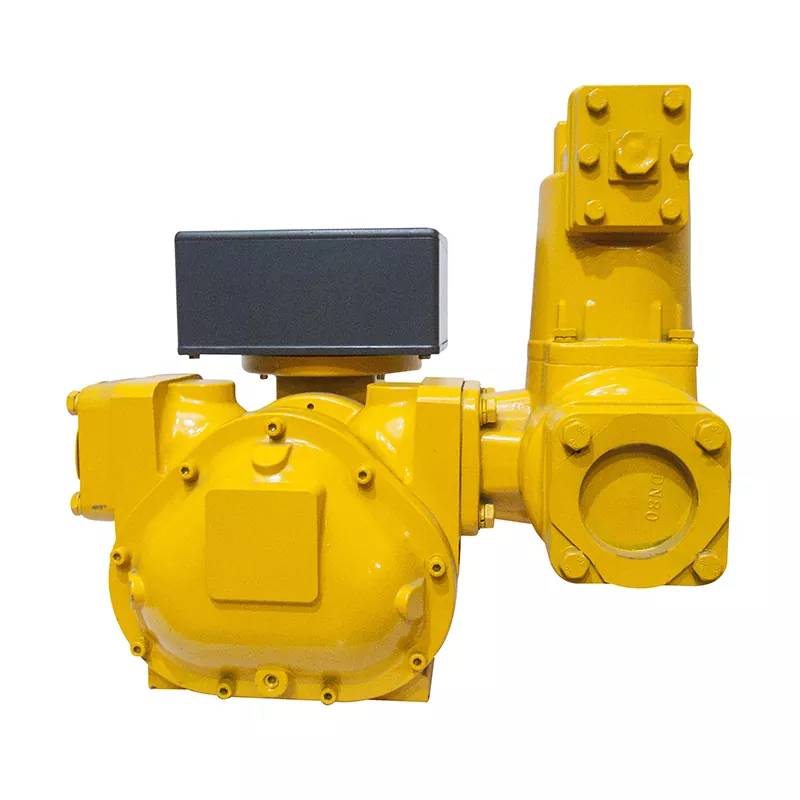

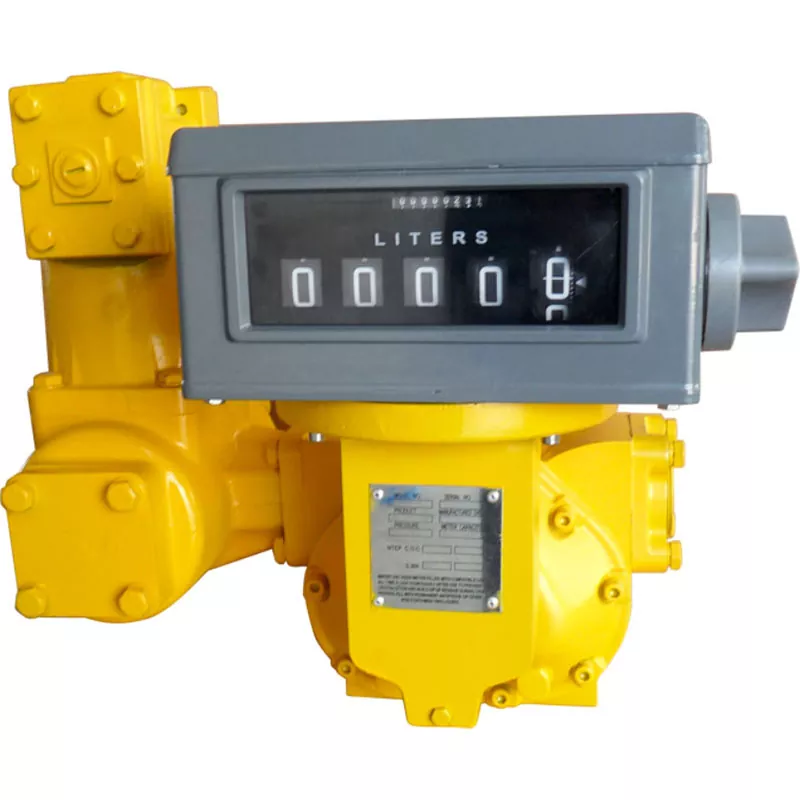

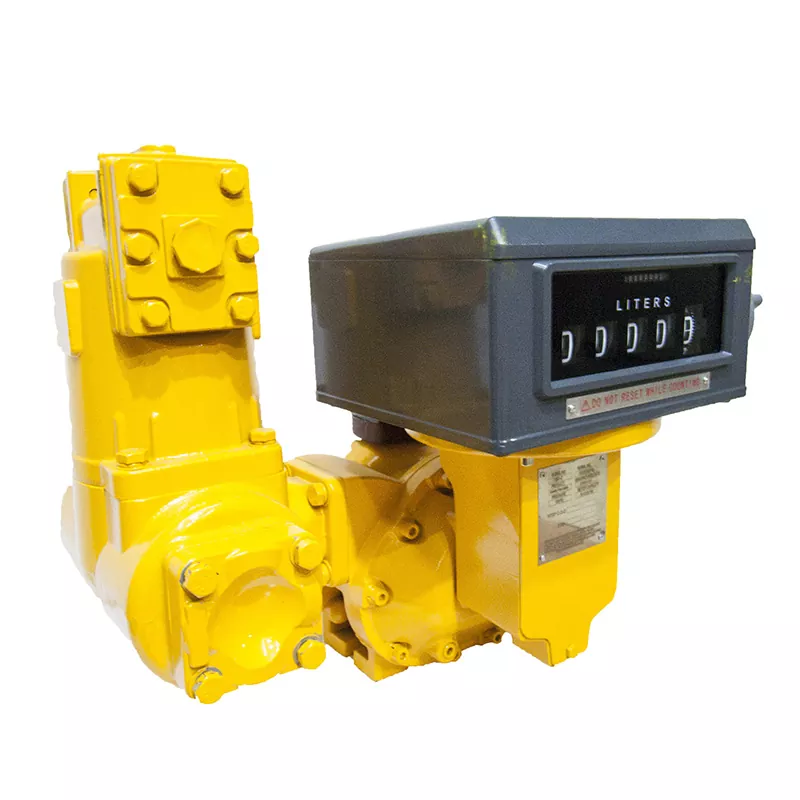

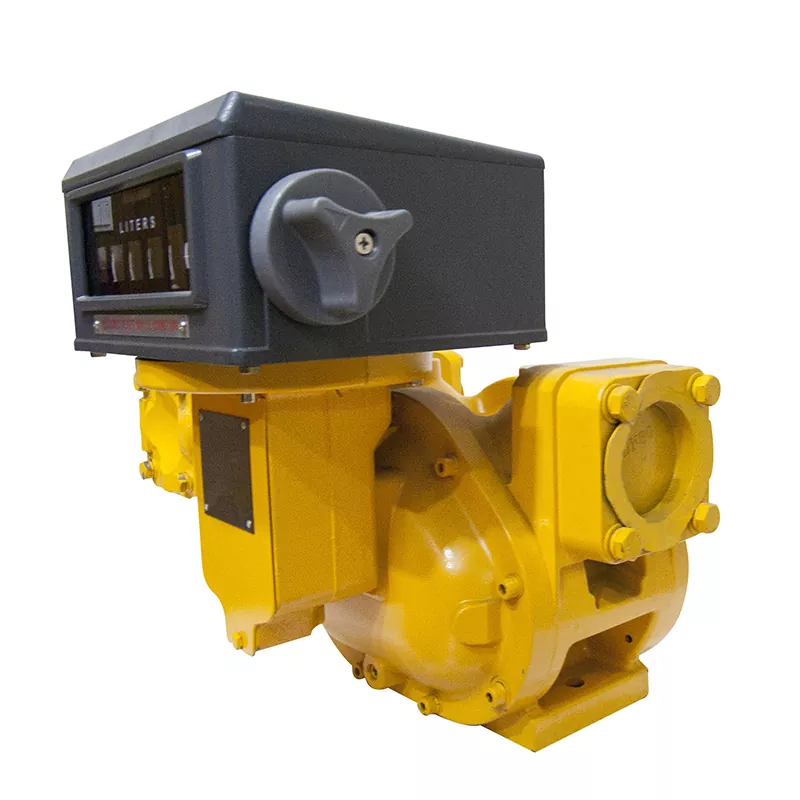

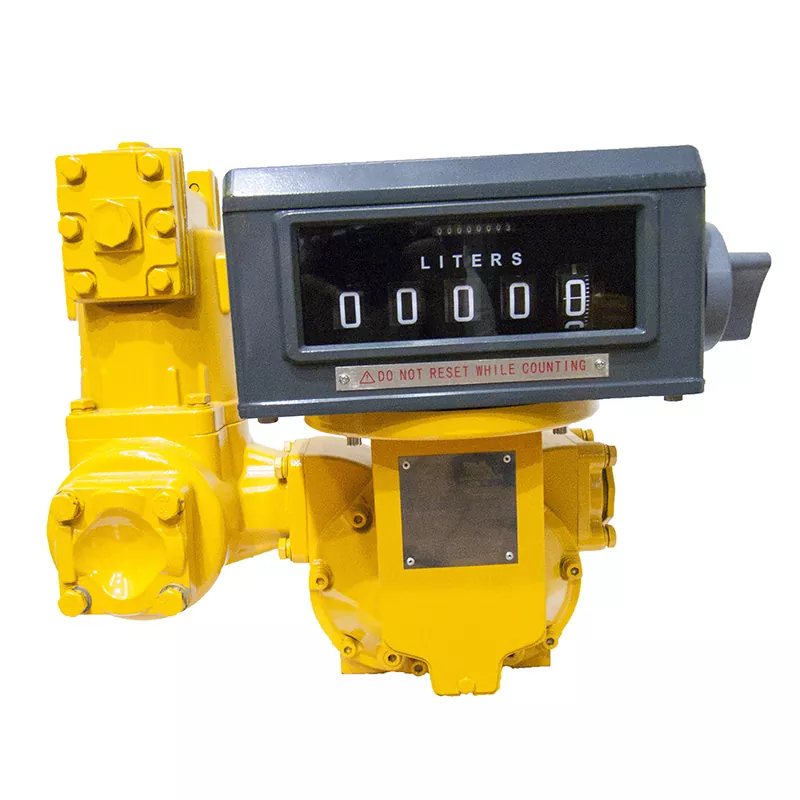

Production Details
