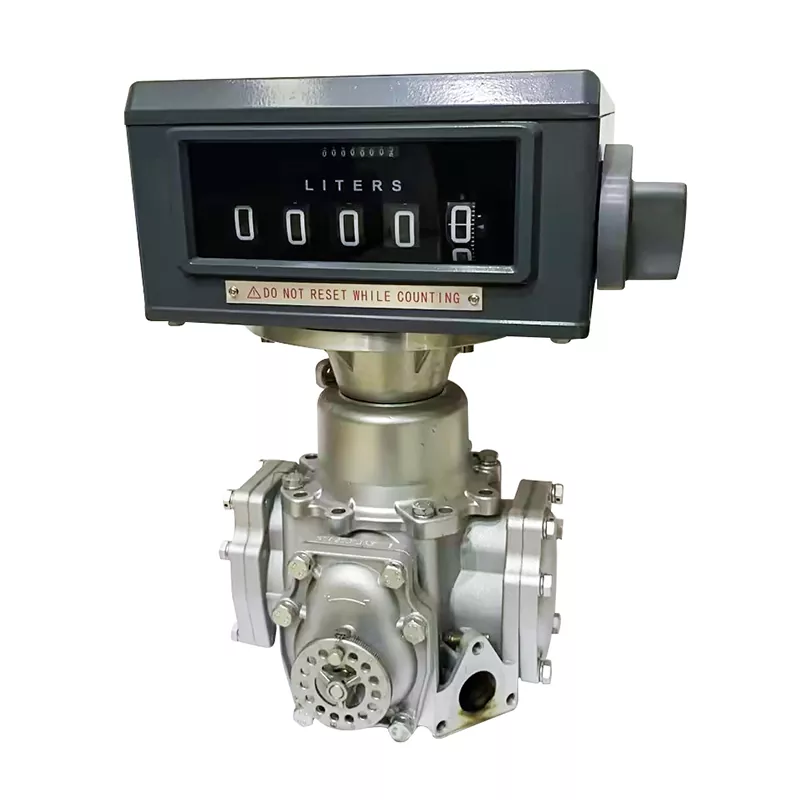

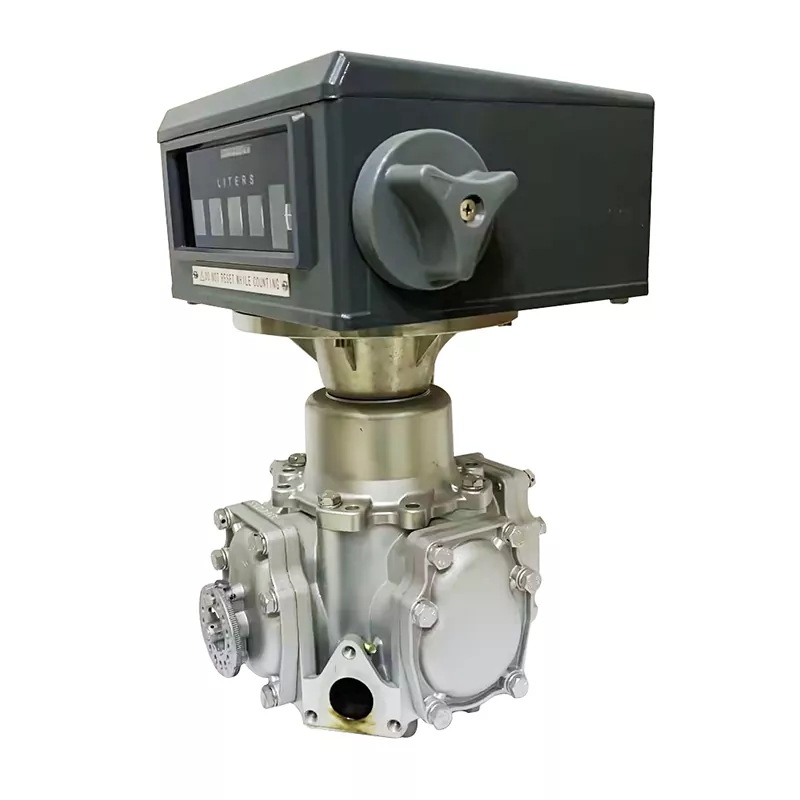

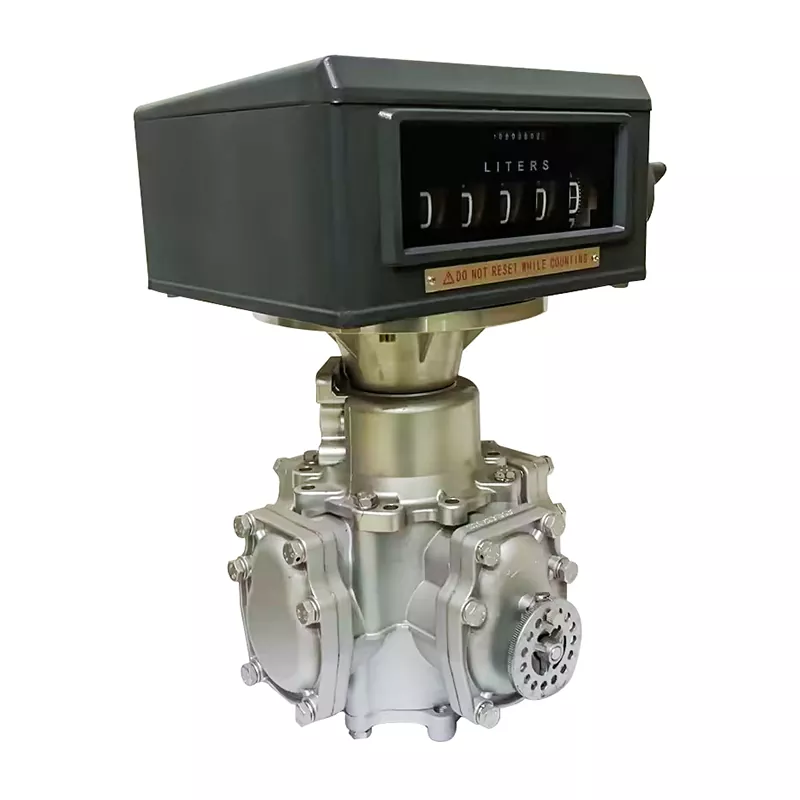

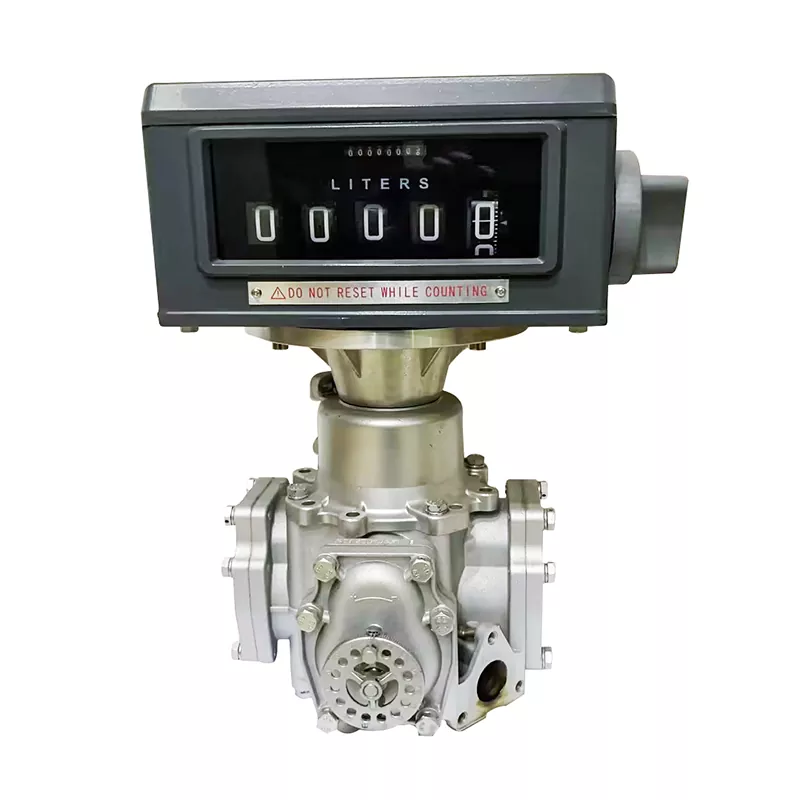

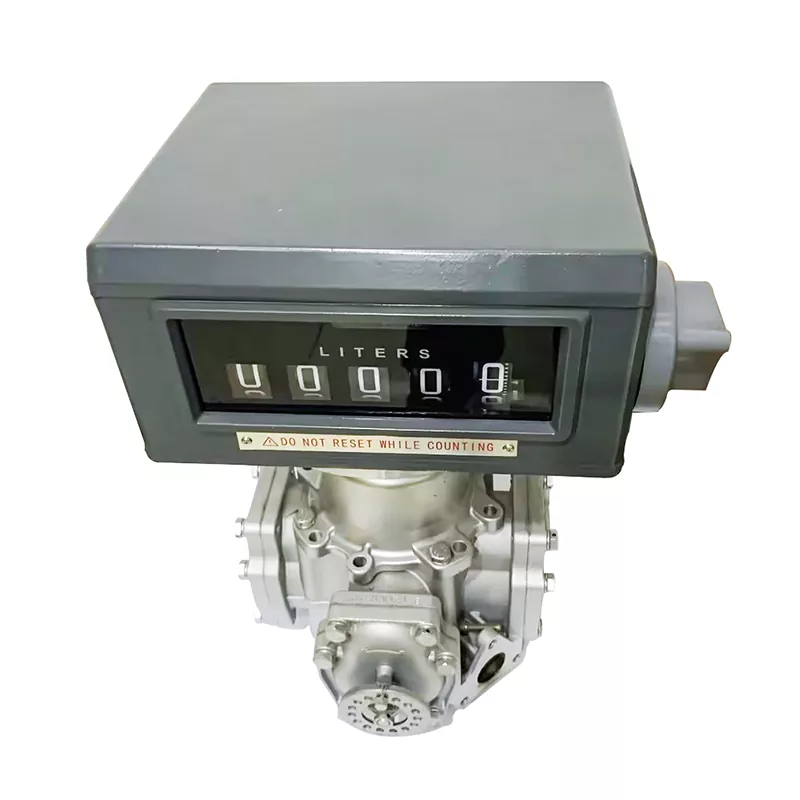

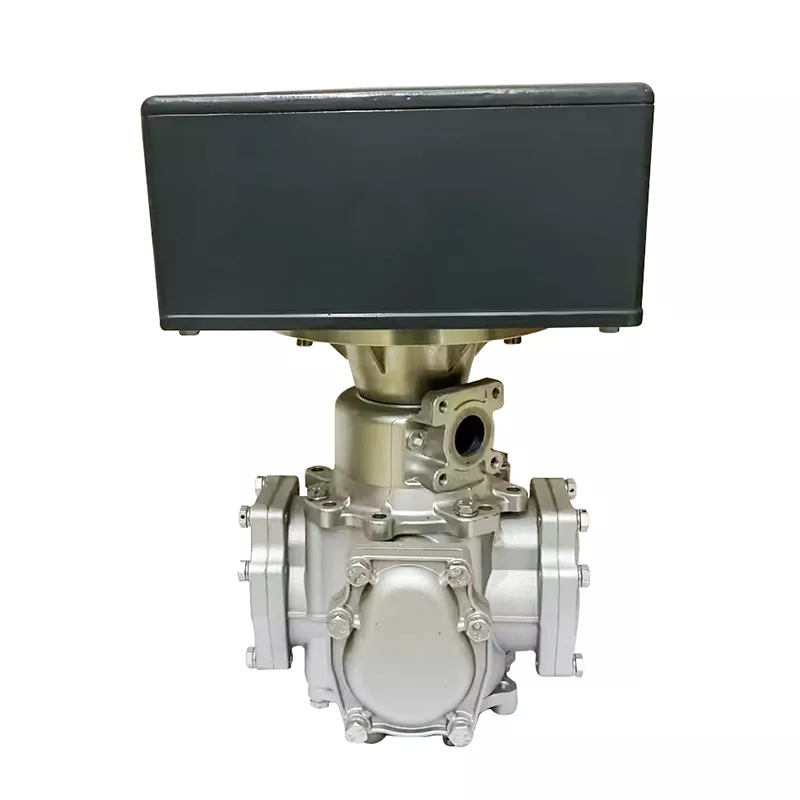

Fuel Flowmeter with Counter

Fuel Flowmeter with Counter is made of alloy aluminum and stainless steel and is suitable for flow measurement ranges from 5 to 80 L/min. Its core working principle is realized through the reciprocating movement of the reciprocating piston driven by the switching of the distributing valve, which can accurately discharge 0.5 L of oil per working cycle. Fuel Flowmeter with Counter is equipped with a mechanical counter for cumulative measurement. On the basis of repeatable tolerance ≤0.07%, the overall measurement accuracy reaches a high standard of ±0.2%, which can meet the needs of high-precision monitoring of fuel and gas flow in the industrial field.It have three types,include Variable Area Air & Gas Flow meters, Variable Area Petrol Flow meters and Variable Area Oil Flow meters.

Product Introduction

The FM4B in the Fuel Flowmeter with Counter is a precision metering device designed for fuel filling equipment. The device adopts a four-cylinder symmetrically distributed piston structure design. Each complete working cycle can accurately output 0.5 liters of fuel.  The matching MJ4 in the Fuel Flowmeter with Counter is a reliable solution in the field of industrial metrology, and its excellent performance has been fully verified in the energy and chemical industry : in the oil supply chain, from oil field exploitation, oil pipeline to storage and transportation base, until the terminal distribution of tankers. In the chemical production process, it is especially suitable for the cumulative measurement requirements of the material mixing ratio link to ensure the accurate recording and real-time display of production data.

Product Parameter (Specification)

Product Feature And Application

Fuel Flowmeter with Counter has wide compatibility with kerosene, diesel and composite fuels.FM4B structure adopts connecting rod limit, high measurement accuracy, easy operation and maintenance. The accompanying MJ4 also plays a big role.

1. Using high-definition digital display to ensure that numerical information can be clearly identified under various lighting conditions.

2. Use the latest technology and materials to ensure the stable operation of the equipment up to 250 RPM.

3. Equipped with a knob reset device with clear tactile feedback.

4. Maximum cumulative capacity of 99,999,999 units, equipped with a five-digit real-time reading window.

5. Acetal resin components for smooth operation and long equipment life cycle.

6.Suitable for all flow metering devices in the current market, with a wide range of compatibility.

Production Details
