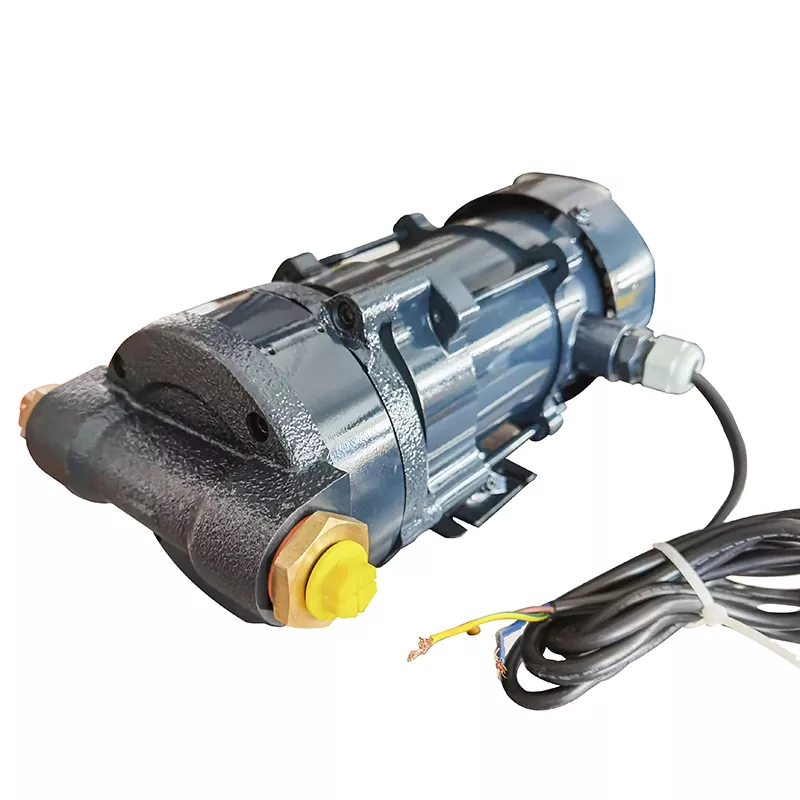

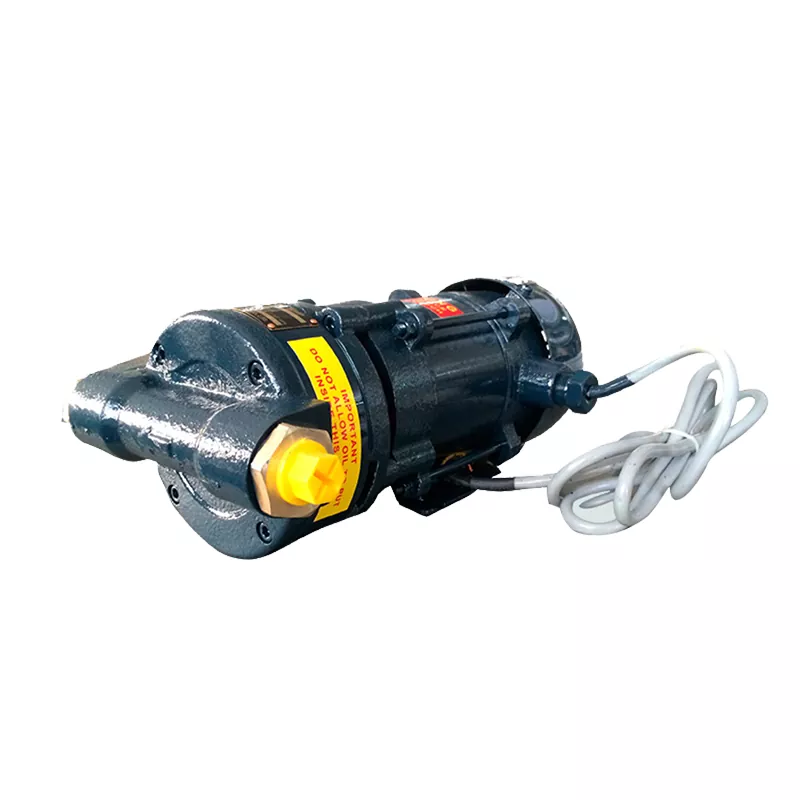

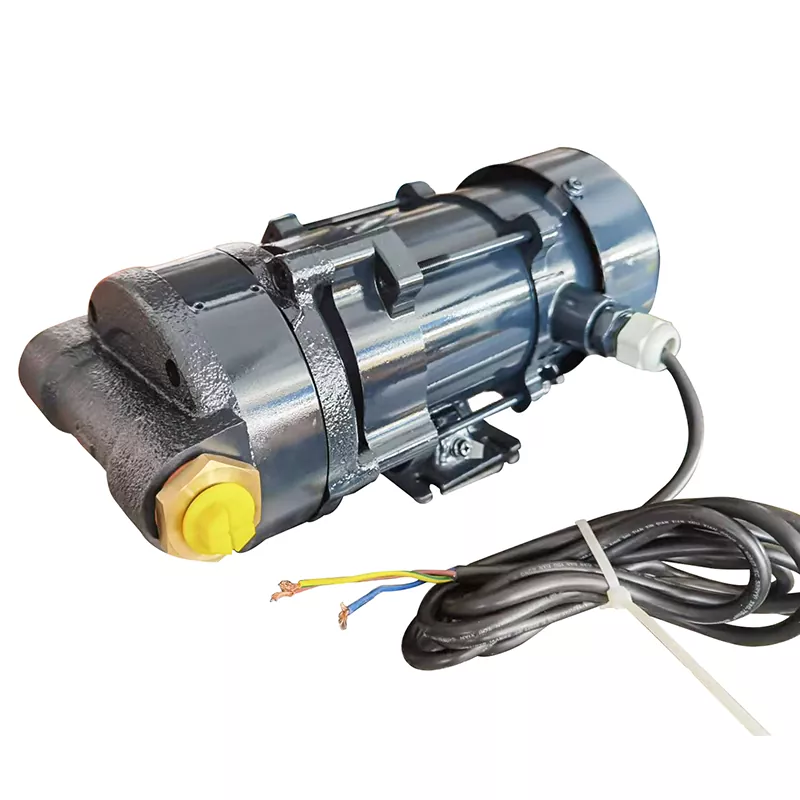

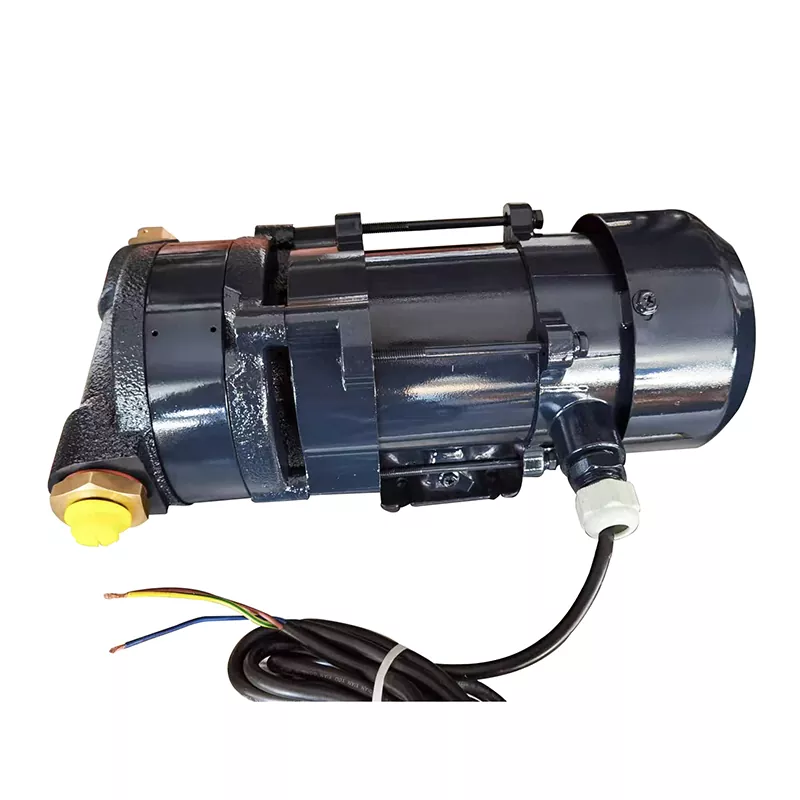

AC Vapor Recovery Pump

The explosion-proof certification of the AC Vapor Recovery Pump is Ex db II B T4 Gb standard, and the whole machine is equipped with IP55 protection system. The equipment adopts 220 volt and 380 volt dual voltage adaptation design, rated output power of 120 W. AC Vapor Recovery Pump performance parameters include: peak transmission capacity of 110 L/min, maximum operating value of 2800 RPM, applicable working conditions of ambient temperature range -25℃ to 55℃. The vacuum degree is less than or equal to -0.022mpa , and the pipe connection is made of G1/2 inch standard pipe thread interface.

Product Introduction

As a high-efficiency environmental protection equipment, AC Vapor Recovery Pump can be operated independently or integrated into the gas station oil and gas recovery system. The device effectively reduces environmental pollution and significantly improves energy efficiency.With the continuous improvement of environmental pollution and energy utilization requirements, AC Vapor Recovery Pump will be widely used in this field.

Product Parameter (Specification)

Product Feature And Application

1. With an oil-free design and no need for regular maintenance, AC Vapor Recovery Pump has a long service life.

2. Can be adapted to both traditional mechanical proportional valves and modern electronic proportional valve systems.

3. Suitable for electronic proportional valve, inlet and outlet are equipped with integrated flame arrester. users can freely adjust the fluid inlet and outlet direction according to the actual working conditions, to achieve multi- scenario installation adaptation.

Production Details
