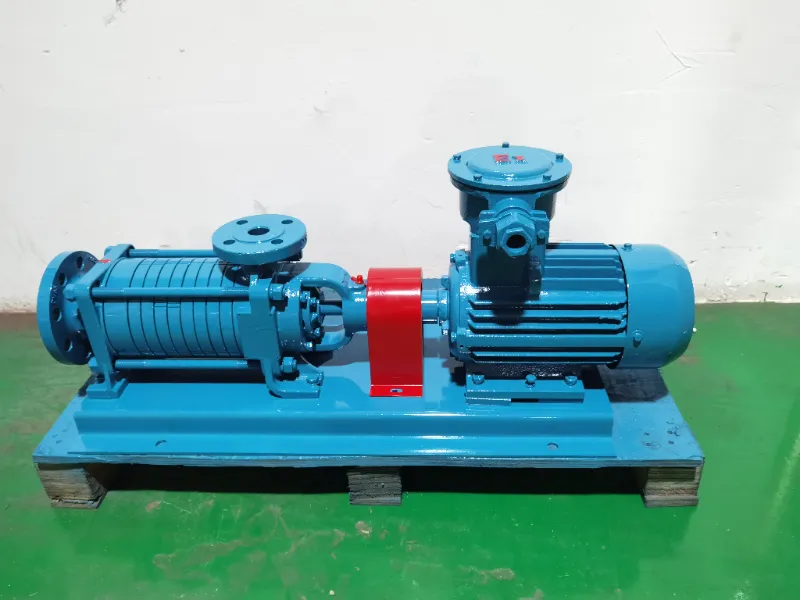

The lpg 4 stage centrifugal pump is a four-stage centrifugal pump specifically designed for LPG and light oil product transfer. Through four impeller stages working in series, it converts motor power into stable high-pressure output, easily handling cylinder filling, storage tank transfer, and tanker loading and unloading. Whether facing long pipeline resistance or pressure differentials between storage tanks and transport vehicles, this pump maintains steady flow and pressure output, helping facilities achieve efficient, uninterrupted LPG transfer operations.
This lpg 4 stage centrifugal pump features a horizontal four-stage design with impellers arranged in series for progressive pressure buildup, delivering high head and large flow output while maintaining smooth operation. A noteworthy innovation is the pre-compression turbine integrated at the suction end, which significantly reduces the NPSH requirement. Even when inlet pressure is low or medium temperature is high, the pump continues to run stably, effectively preventing cavitation damage to the impellers from the source.
In terms of structural design, the shaft uses a mechanical seal that requires no external cooling water, eliminating complex auxiliary systems and making installation and daily maintenance simpler and more straightforward. The compact design ensures smooth operation and is well-suited for continuous heavy-duty service. The four main assemblies—support structure, transmission system, bearings, and seals—are precision-matched to ensure reliability under high-pressure conditions while also facilitating future inspection and repair. The pump demonstrates excellent adaptability across LPG, kerosene, diesel, and similar media, allowing a single unit to cover multiple transfer needs.
In cylinder filling, the four-stage design steps up pressure progressively, giving filling stations the muscle to run multiple filling heads at once. The result is noticeably faster cycle times—especially valuable when demand spikes and every minute counts.
When pulling LPG from above-ground storage and pushing it toward dispensers or process units, the pump handles the changing head pressure as tank levels drop, keeping outlet pressure steady without constant adjustment.
For tanker loading and unloading, pressure differential between the truck and the storage tank is often the limiting factor. This pump’s four-stage design delivers the extra head needed to close that gap quickly, cutting wait times and turning trucks around faster.
And because it handles kerosene and diesel as readily as LPG, mixed-product facilities can use one pump across different jobs—simpler, leaner, and easier on the equipment budget..
Adopting this lpg 4 stage centrifugal pump effectively boosts facility transfer capacity and operational efficiency. Energy costs are more economical—no extra power consumption for cooling water systems means lower long-term operating expenses. The mechanical seal requires no cooling water, meaning one less piping system, one less failure point, and significantly reduced maintenance burden. The horizontal design facilitates easier inspection and repair, while the pre-compression turbine effectively suppresses cavitation, extending the service life of both the impeller and the complete unit. Combined with proper startup procedures and inlet strainer protection, safe operation is better assured.
Wenzhou Supertech Machine Co., Ltd. , as a specialized manufacturer and direct supplier of LPG transfer equipment, is committed to providing global customers with efficient and durable pumping solutions. The lpg 4 stage centrifugal pump we offer is a four-stage centrifugal pump specifically designed for LPG and light oil product transfer. Featuring a horizontal four-stage design with progressive pressure buildup, it is suitable for cylinder filling, above-ground tank transfer, and tanker loading and unloading, with compatibility across LPG, kerosene, diesel, and similar media. Incorporating a pre-compression turbine at the suction end for low-NPSH operation and a mechanical seal requiring no cooling, it offers compact structure and smooth operation. As a direct manufacturer and supplier, we welcome inquiries regarding product selection and technical applications, and we are pleased to provide comprehensive technical support and after-sales service.
