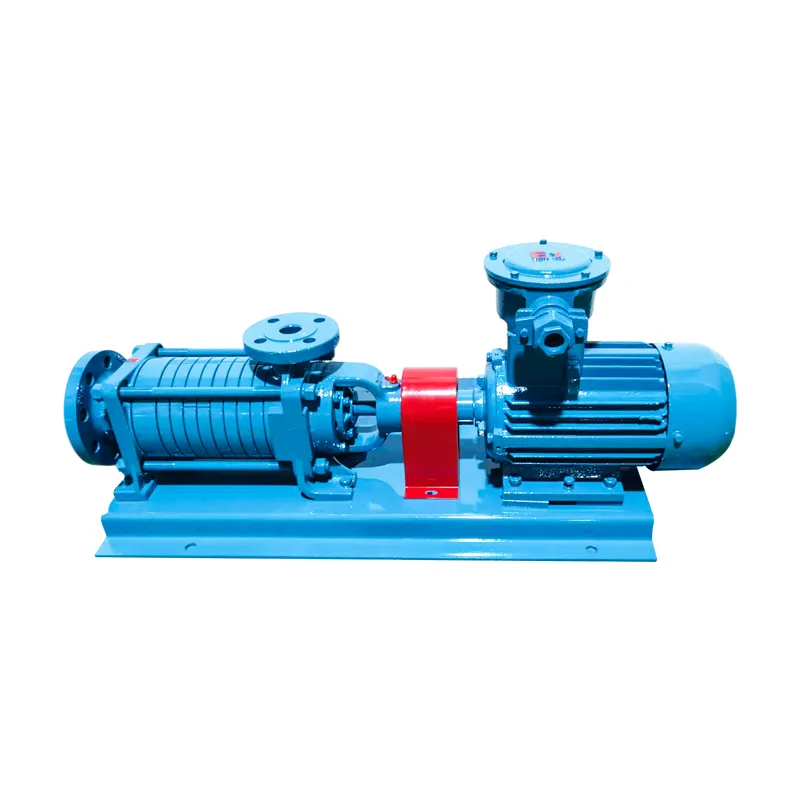

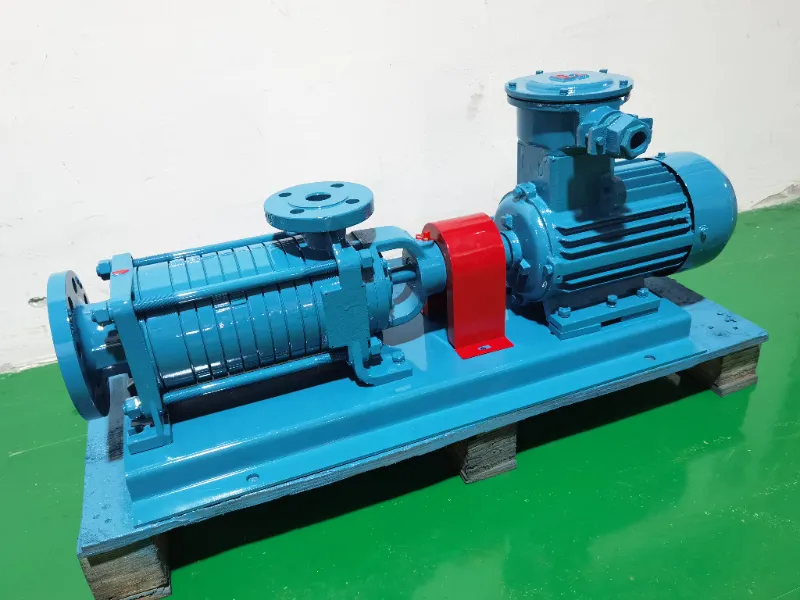

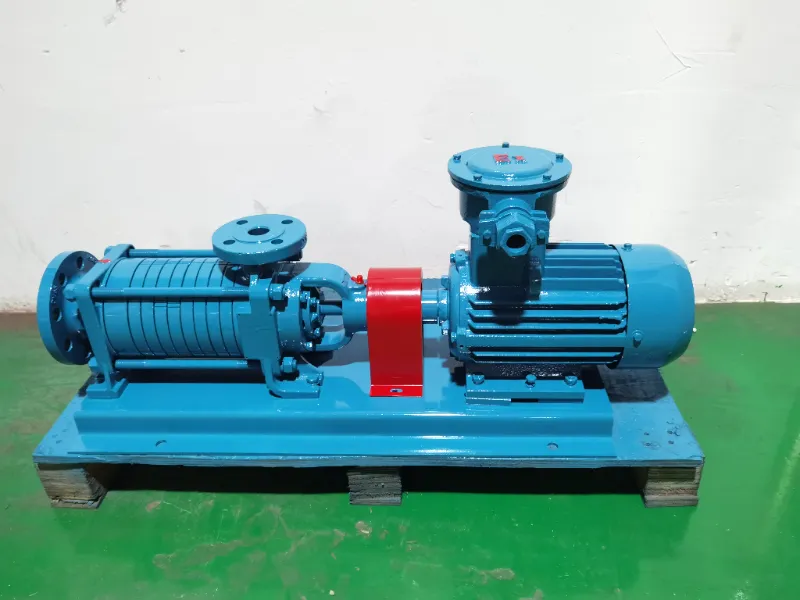

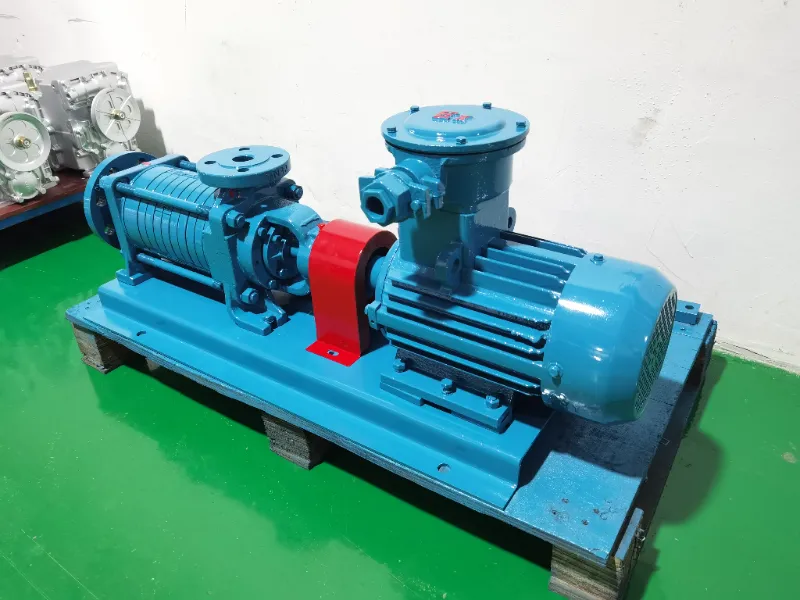

Engineered as a LPG 4 Stage Centrifugal Pump, this unit is purpose-built for LPG transfer. Its self-contained mechanical seal eliminates the need for auxiliary cooling, while the suction-end pre-compression turbine guarantees stable operation even in low-NPSH scenarios. The multistage design unlocks high-flow, high-pressure performance across a versatile media range—from LPG and kerosene to diesel and various light oils.
The parameter is as follow.
| Rotation Direction | Counterclockwise when facing the drive shaft end |
| Flow Rate | 7m³/h |
| Speed | 1450rpm |
| Power | 3KW, 380V |
| Ambient Temperature | -30°C to 60°C |
| Maximum Differential Pressure | 1.4Mpa |
Combining high-head delivery with substantial flow, this LPG 4 Stage Centrifugal Pump is a powerhouse for fluid transfer.
The seal design is smart and simple—no extra cooling needed, which cuts down on installation work and upkeep.
Even with low inlet pressure, the suction-end pre-compression turbine maintains stable operation by effectively reducing NPSH.
Designed for dependability, its sturdy yet compact structure ensures smooth running and long-term durability under heavy loads.Horizontal 4-stage design delivers high head and large flow output
LPG cylinder filling
Pumping LPG from underground storage
Bulk filling operations
Loading/unloading of bulk trucks and transport trailers
An inlet strainer of 100-mesh or finer is mandatory.
Prior to startup, the LPG 4 Stage Centrifugal Pump must be fully primed—ensure the casing is filled with liquid and all trapped air is purged. Dry operation is strictly prohibited, as it can lead to overheating, excessive vibration, and permanent equipment failure.
Rotation direction of the motor must be verified before the first start.
Extended running with the discharge valve closed is not recommended, as this will adversely affect pump longevity.
A: Please compare your operating parameters (medium, temperature, head, and flow rate) with the product specifications. If you're unsure about any of these, feel free to send them to our customer service team—we'll provide complimentary selection recommendations to help you find the right fit.
A: For in-stock orders, shipments are typically dispatched within 30 business days. Large items are sent via freight logistics by default, and delivery times vary by region. After placing your order, you can contact customer service for a more specific estimated arrival date.
A: We have been specializing in LPG pump components for over 14 years. Every pump undergoes performance testing before leaving our factory. We offer free pre-sale selection guidance and post-sale support to ensure you purchase with confidence and use with peace of mind.
