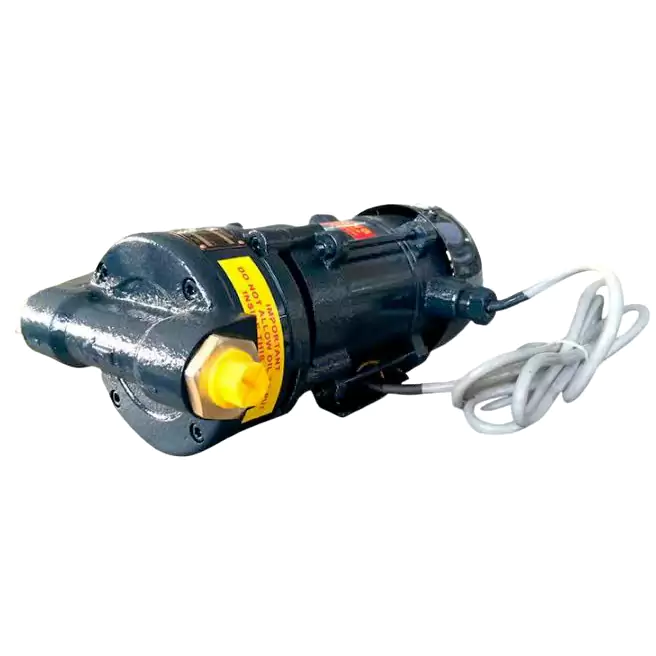

Oil and Gas Recovery Pump

The VRP-110 vapor recovery pump is an explosion-proof gear pump specifically designed for secondary vapor recovery systems at gas stations. It features an oil-free, maintenance-free structure and a 120W motor, delivering a maximum flow rate of 110 L/min, a maximum rotational speed of 2800 RPM, and a vacuum level of ≤ -0.022 MPa. Both the inlet and outlet are integrated with flame arresters, and the interface direction can be flexibly adjusted to suit on-site installation conditions. The pump is also compatible with both mechanical and electronic proportional valves, offering a combination of safety and system adaptability.

Product Parameter (Specification)

Feature

The VRP-110 vapor recovery pump is a self-developed and manufactured product designed specifically for gasoline dispensers at gas stations, enabling two-stage fuel vapor recovery. The main advantages of the VRP-110 lie in its combination of high safety and low maintenance cost. Featuring an oil-free, maintenance-free design, it eliminates the need for daily lubrication and servicing, significantly reducing long-term operational expenses. As an explosion-proof gear pump, it integrates one-piece flame arrestors at both the inlet and outlet, and allows flexible adjustment of connection orientations, making it highly adaptable to complex on-site installation conditions. Additionally, powered by a 120W motor delivering a high flow rate of 110 L/min and a vacuum level of ≤ -0.022 MPa, it ensures efficient vapor recovery performance. It is compatible with both mechanical and electronic proportional valves, allowing seamless integration with various types of fueling systems.

Application

1. Secondary oil vapor recovery system at gas stations:

As the core power component, it is installed inside the fuel dispenser. During the refueling process, it actively recovers the oil vapor expelled from the car fuel tank and prevents it from spreading into the atmosphere.

2. Retrofitting of fuel dispensers compatible with different proportion valves:

Due to its ability to accommodate both mechanical and electronic proportion valves, this pump can flexibly adapt to new and old types or brands of fuel dispensers, and is suitable for the environmental protection upgrading projects of existing gas stations.

3. Oil and gas transportation in explosion-proof environments:

With its explosion-proof design and integrated flame arrester at the inlet and outlet, this pump can be safely applied in locations with the risk of flammable gases, ensuring the safety of the oil and gas transportation process.

4. Distributed recovery scenario with high flow requirements:

With a maximum flow rate of 110L/min and a vacuum degree of ≤ -0.022MPa, it is also suitable for distributed oil vapor recovery points that require high recovery efficiency, such as large gas stations or those equipped with high-flow fuel dispensers.
