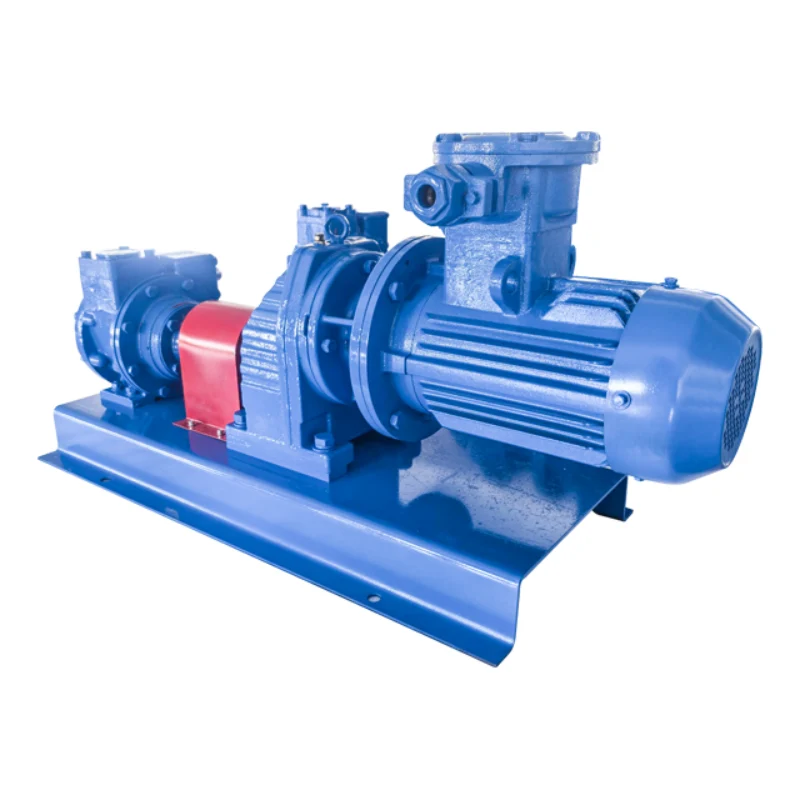

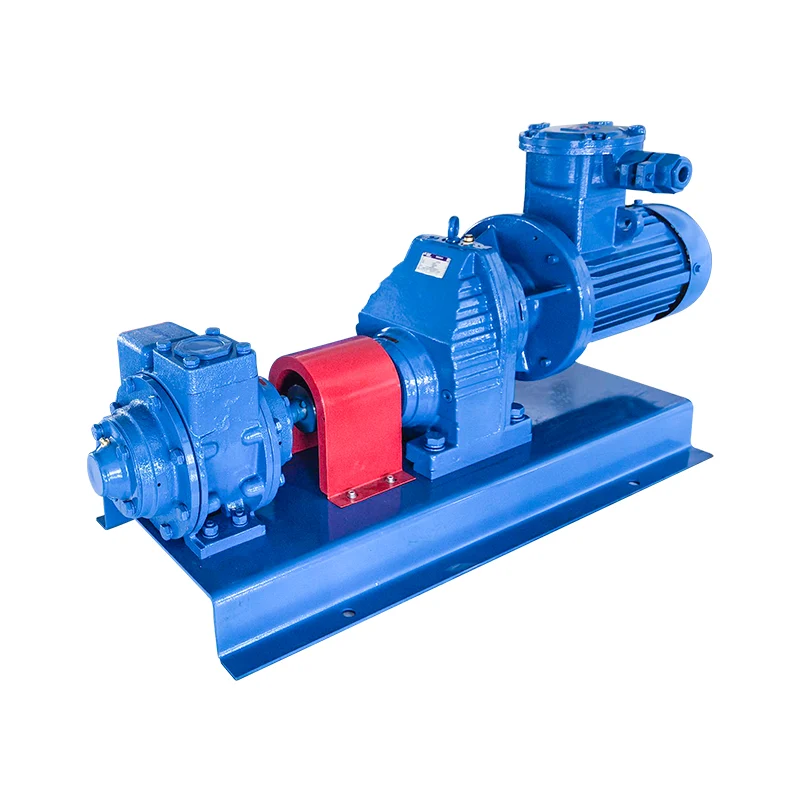

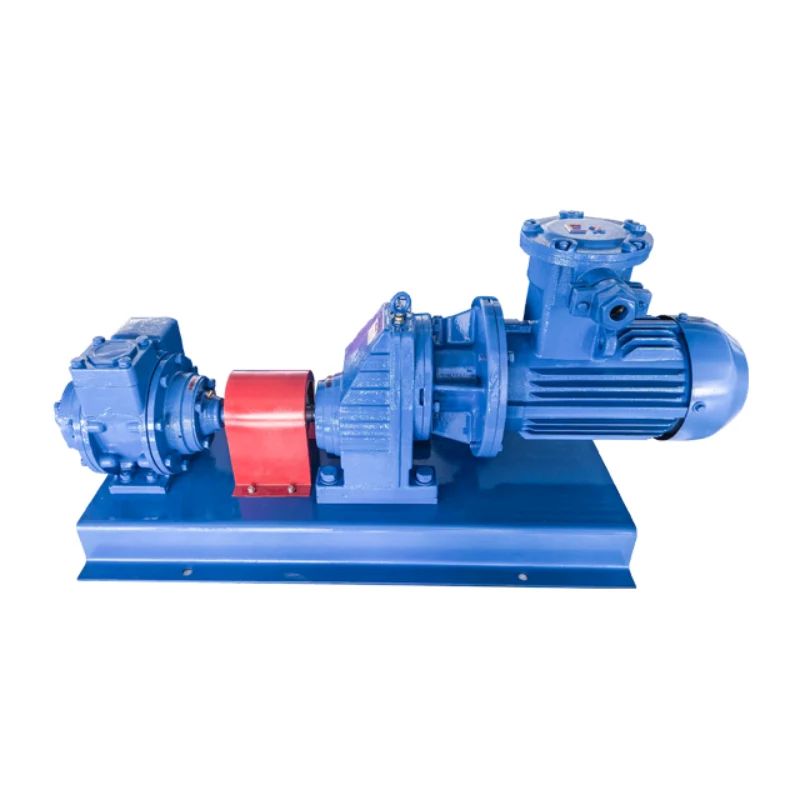

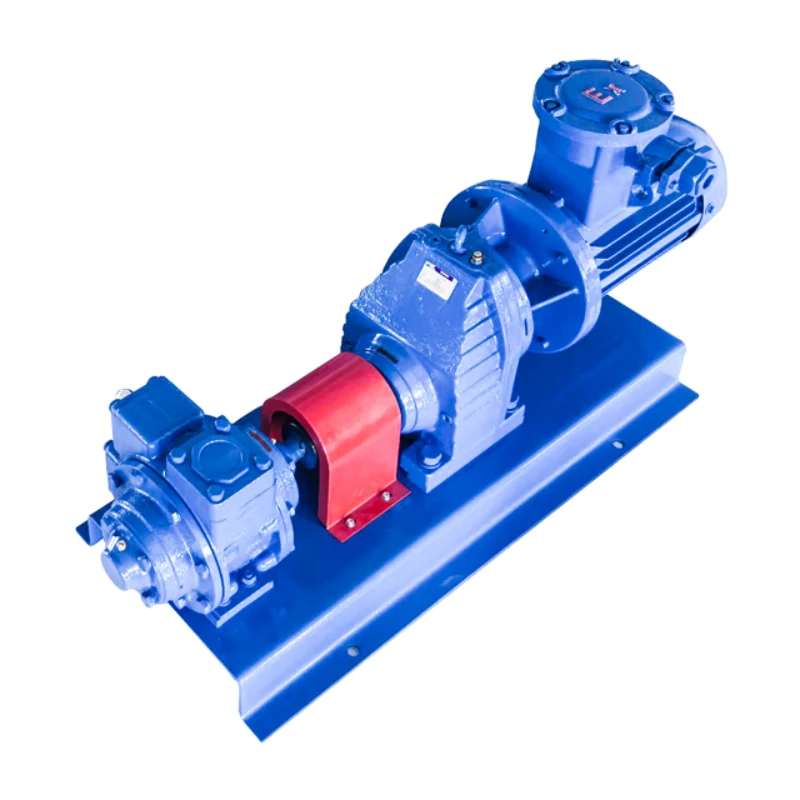

The pump is a positive displacement pump that incorporates advanced foreign technology with reasonable structure, long service life, compact size, and high efficiency. This 2 inch fuel rotary pump uses a rotor with vanes to transfer liquids and features a built-in relief valve. When handling viscous and volatile liquids, it consumes less power compared to other pump types, with clear advantages in low-speed, high-flow transfer applications. The pump body is available in cast iron and ductile iron, with special elastomers compatible with fuel and biofuels.
The parameter is as follow.
| Flow Rate | 300L/min |
| Maximum Working Pressure | 0.345Mpa |
| Speed | 650rpm |
| Hose Power | 3.2hp |
| Suction Time to 5m Height | 15s |
| Power | 5.5kw |
This 2 inch fuel rotary pump offers compact size, high efficiency, smooth operation, and strong self-priming capability. Flow rate is adjustable by speed change – it performs well even at idle speed while meeting flow and pressure requirements. The built-in relief valve protects the motor from overload in case of sudden outlet system closure. With compact structure, easy maintenance, and long service life, it delivers reliable performance in demanding applications.
Widely used for transferring non-corrosive industrial liquids and petroleum products, suitable for fuel transfer, oil loading and unloading, and similar applications – particularly well-suited for small to medium-scale fueling operations and tanker offloading at service stations.
Required Order Parameters:
Pump model, or required flow rate and working pressure at operating conditions
Detailed properties of the medium to be transferred (name, temperature, density, viscosity, etc.)
Recommended Spare Parts:
Mechanical seal,Rotor assembly (vanes, shaft),Gaskets,O-rings,Bearings
A1: The MOQ is 1 unit.
A2: Shipping cost depends on the specific delivery address. Please provide your detailed address and we will calculate the freight for you.
A3: This product is packed in a wooden case to ensure safe transportation.
