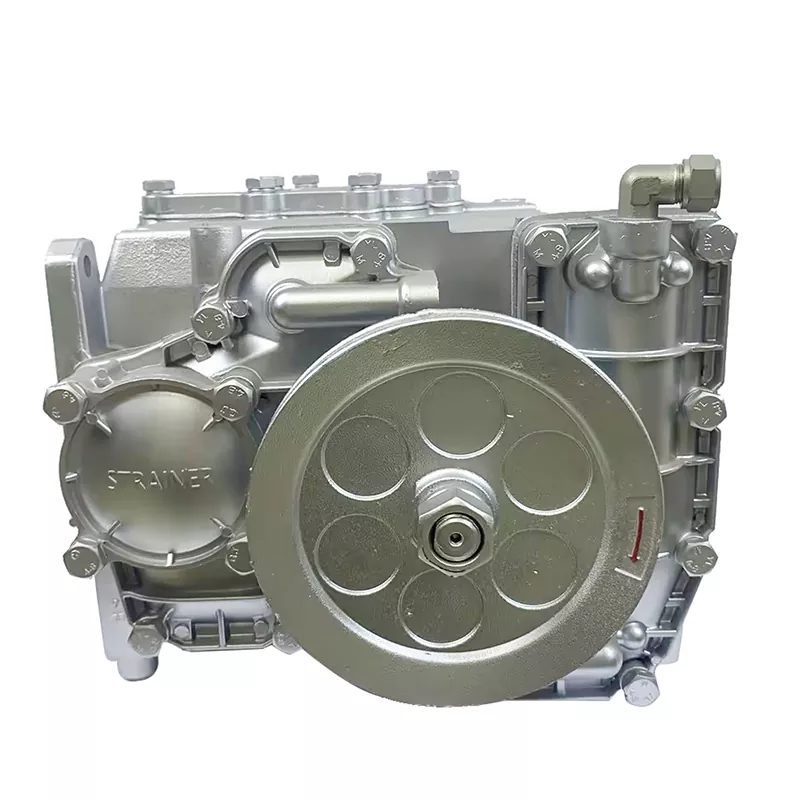

Gear Pump for Fuel Dispenser

Gear Pump for Fuel Dispenser is a high performance and durable product. It can produce a speed of 680~980RPM, and the flow rate can reach 45 L/min ~90L/min, which makes it very efficient when operation. Aluminum alloy low pressure casting ground pump body, so that it has a long service life.Gear Pump for Fuel Dispenser is adaptable to temperatures between Minus 25 to 55 degrees Celsius, which allows it to operate well in a variety of environments. The working pressure of the Gear Pump for Fuel Dispenser is between 0.18 and 0.3Mpa, noise below 72dB and vacuum degree is less than or equal to -0.054Mpa.

Product Introduction

The Supertech brand Gear Pump for Fuel Dispenser, whose material of body is low pressure cast aluminum alloy. It’s applicable to gasoline, kerosene, diesel oil and compound of them.The pump body is equipped with air separator, by pass valve, check valve, inlet and outlet strainer, decompression. Gear Pump for Fuel Dispenser have good quality.At the same time,we provide the appropriate after-sales protection.

Product Parameter (Specification)

Product Feature And Application

Gear Pump for Fuel Dispenser can be used with gasoline, kerosene and mixed fuel. It combines a water pump and an air separator. Gear pump for fuel dispenser has the following features.

1.Small volume and compact structure.

2.High efficiency and energy saving. Its gear design helps it reduce energy loss and thus stable output.

3.Long working life. The pump body is cast in aluminum alloy at low temperature, and the precision bearing is configured to support continuous operation at high speed.

4.The unique tooth shape technology allows it to operate with low noise, so that educe working environment interference.

5.It has a wide range of adaptability and can adapt to high temperature or cold environment.

6.The strong ability to separate oil and gas is also its advantage.

Production Details
