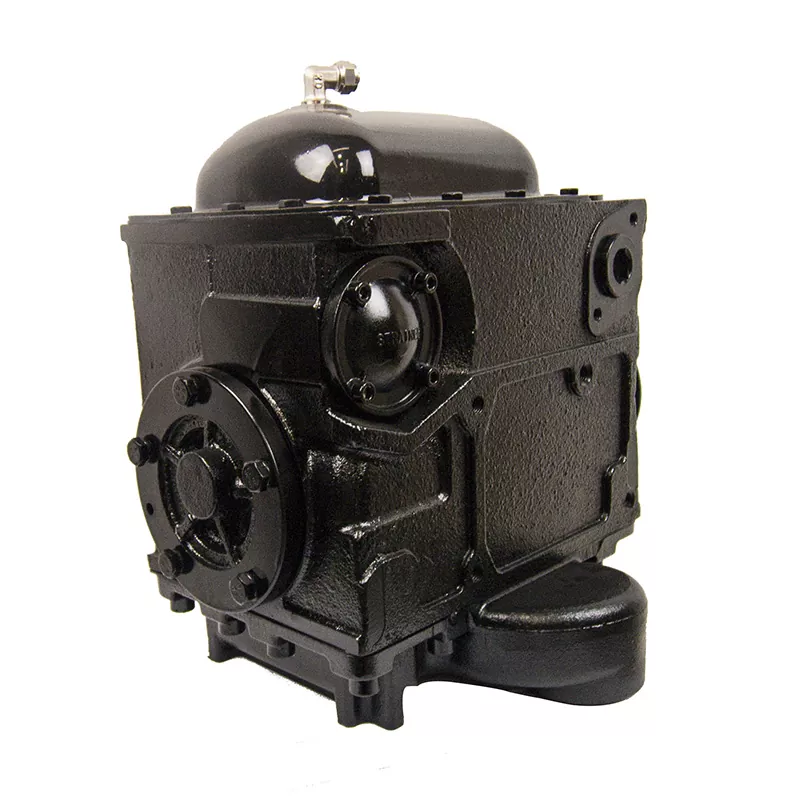

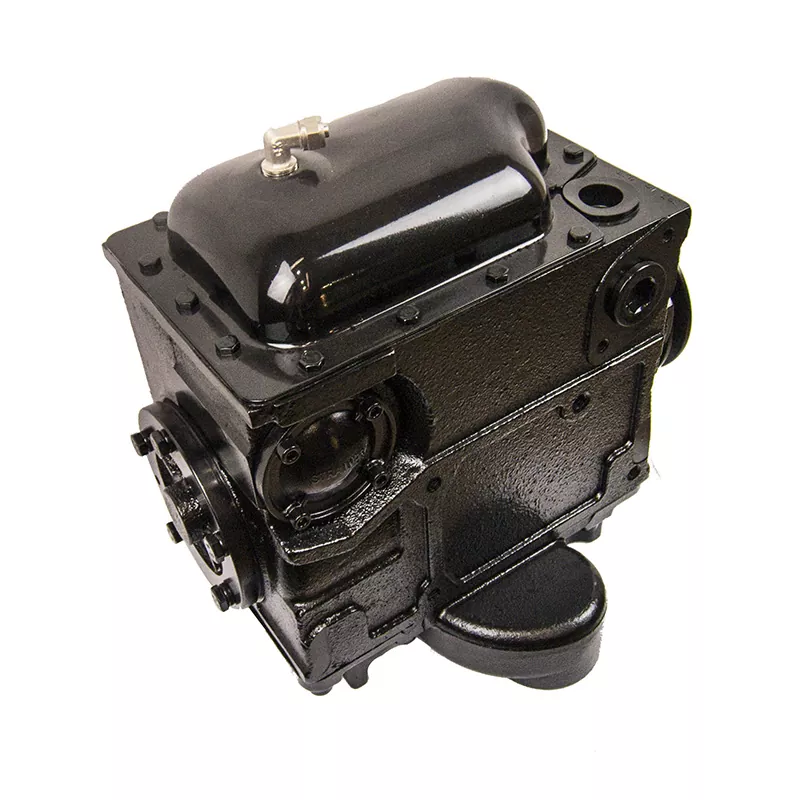

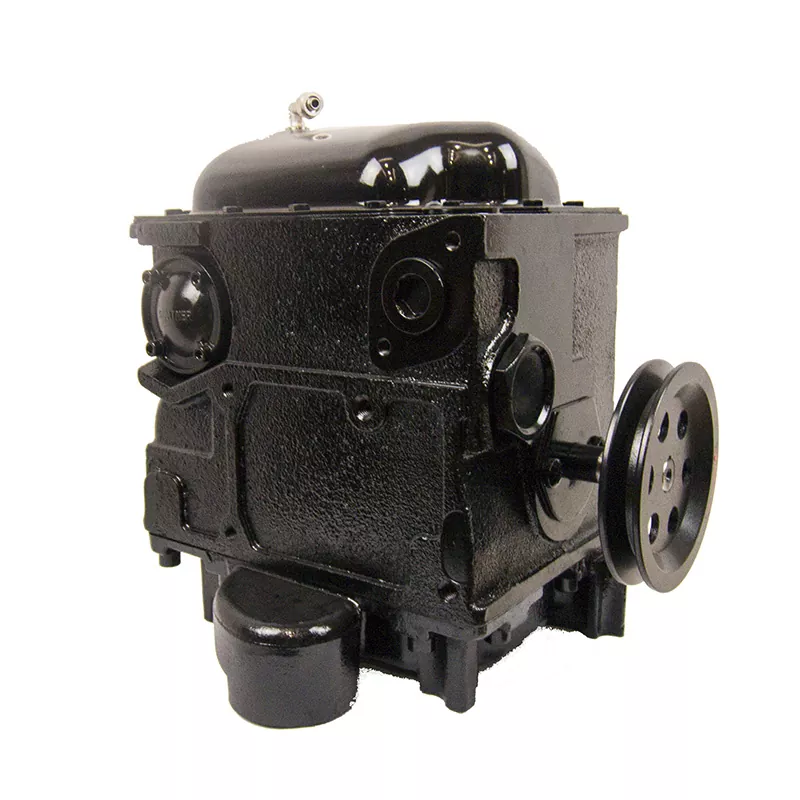

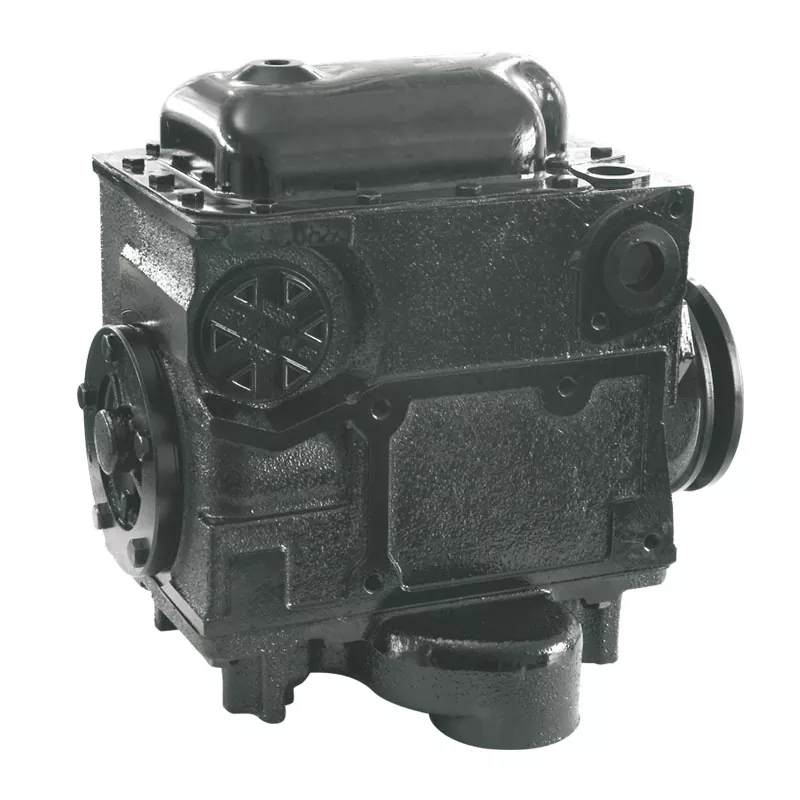

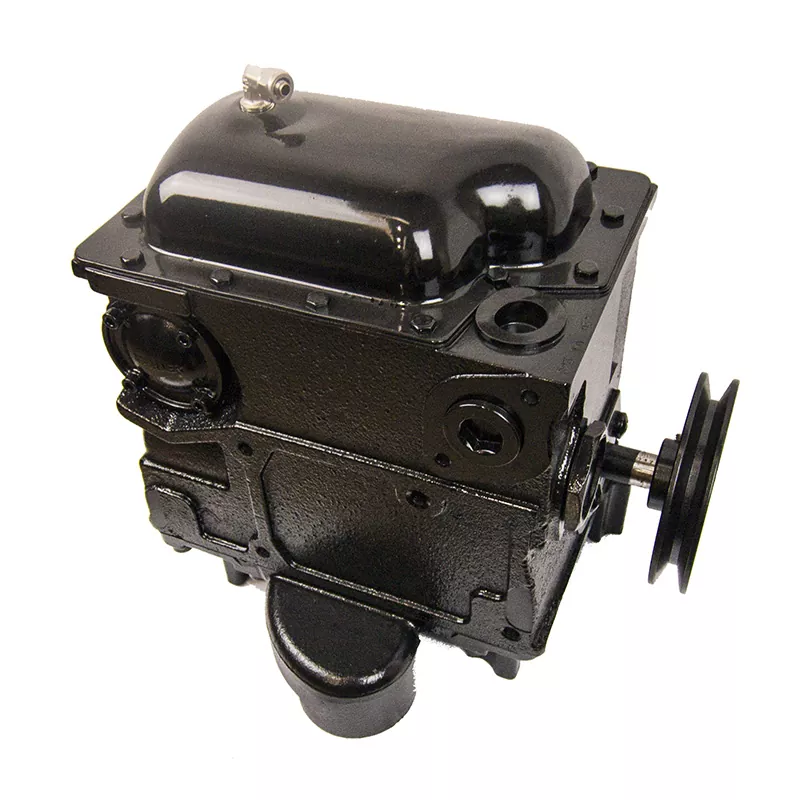

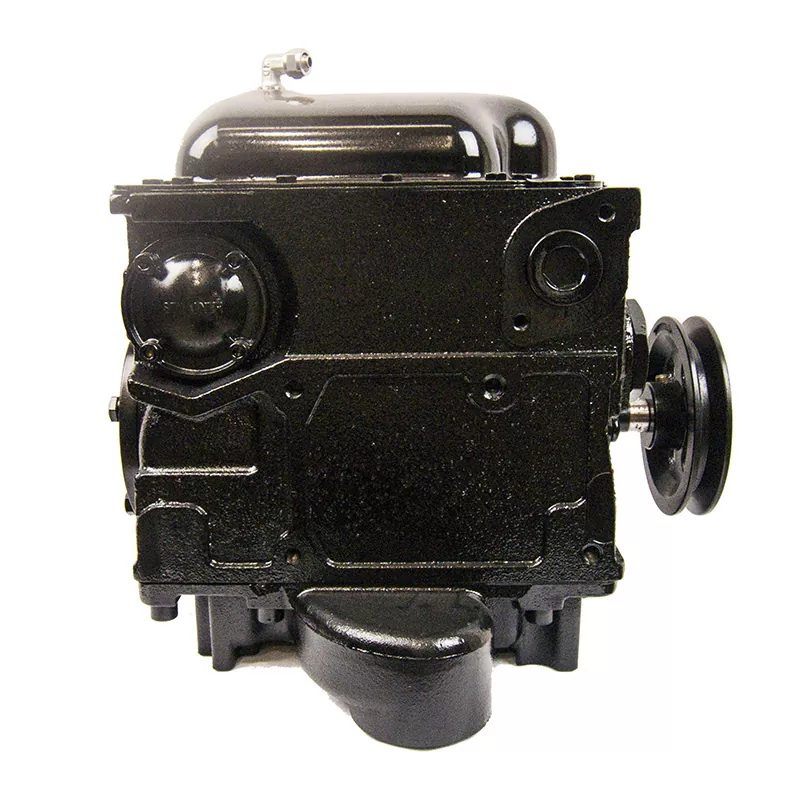

Dispenser Gear Pump

The fuel dispenser gear pump  is the core power component in fuel dispensing equipment, specifically designed to meet the requirements of high-precision metering and safe, reliable operation in fuel dispensers. It adopts a positive displacement gear pump structure, offering excellent self-priming capability that enables it to quickly draw fuel from the storage tank and establish delivery pressure upon startup. Unlike conventional gear pumps, the fuel dispenser gear pump integrates an efficient vapor separation mechanism that effectively separates and discharges vapor from the fuel through centrifugal or cyclone separation principles, ensuring that only liquid fuel passes through the flow meter. This guarantees metering accuracy and eliminates the phenomenon of "air lock" or inaccurate dispensing. Furthermore, given the special nature of handling low-flash-point flammable media such as gasoline, this type of pump often employs copper gears or explosion-proof structural designs to eliminate the risk of sparks caused by friction. It is also equipped with safety valves and other protective devices that automatically relieve pressure in the event of pipeline blockage, ensuring safe and reliable operation of the complete unit.

Product Parameter (Specification)

Feature

The fuel dispenser gear pump offers several outstanding advantages. First, it adopts a positive displacement structure with strong self-priming capability, allowing for rapid startup without the need for external priming, steadily drawing fuel from the storage tank and establishing delivery pressure. Second, it integrates an efficient vapor separation mechanism that effectively separates and discharges vapor from the fuel, ensuring that only liquid fuel enters the flow meter, thereby guaranteeing metering accuracy and eliminating issues such as "air lock" or counting errors. Third, the pump features a compact structure, smooth operation, and uniform flow, enabling it to meet continuous dispensing requirements under various operating conditions. Furthermore, given the special nature of handling flammable media such as gasoline, the fuel dispenser gear pump often employs copper gears or explosion-proof designs in its material selection, eliminating the safety risk of sparks caused by friction. It is also equipped with safety valves and other protective devices that automatically relieve pressure in the event of pipeline blockage, enhancing the overall safety and reliability of the unit. Overall, the fuel dispenser gear pump demonstrates excellent performance in terms of metering accuracy, self-priming capability, safety protection, and operational stability.

Application

1. Commercial Gasoline Stations

The most widespread application scenario for fuel dispenser gear pumps is in various commercial gasoline stations, including urban stations, highway service area stations, and stations along national and provincial roads. Their high-precision metering capability ensures fair and accurate fuel transactions, meeting strict regulatory requirements for trade settlement. Their excellent self-priming performance allows them to adapt to underground storage tanks at varying depths, while explosion-proof design ensures safe operation in flammable and explosive environments.

2. Oil Depots and Loading Racks

In the loading areas of oil depots, fuel dispenser gear pumps are installed on loading racks to transfer fuel from storage tanks into tanker trucks, barrel containers, or directly dispense into large vehicles. Such applications require the pump to have a high flow output capacity and stable continuous operation. Meanwhile, the vapor separation function effectively handles gases generated in depot storage tanks due to temperature fluctuations between day and night, ensuring the accuracy of loading metering.

3. Corporate and Fleet Fueling Stations

Large logistics companies, public transportation companies, mining enterprises, construction firms, and other organizations with their own fleets often set up internal fueling stations to reduce operating costs. Fuel dispenser gear pumps, with their compact structure, easy maintenance, and high reliability, are well-suited for such non-commercial applications where metering accuracy and safety remain important requirements, effectively meeting the needs of centralized daily vehicle refueling.

4. Specialized Fuel Dispensing Applications

Beyond conventional automotive fuels, fuel dispenser gear pumps are also used in marine fuel dispensing at docks, airport ground service refueling equipment, and fuel supply for certain agricultural and construction machinery. In specialized scenarios such as marine and airport applications, the pumps must offer higher corrosion resistance (for marine fuels) and stricter explosion-proof ratings, while maintaining stable startup and operation under varying ambient temperatures to ensure reliable fuel supply for critical equipment.

Production Details
