On the basis of safety and reliability, the maximum flow rate of Ex-Proof Petrol Oil Drum Pump can reach 100L/min.The product power reaches 600W, the working pressure is 0.25Mpa, and the vacuum degree is lower than -0.03Mpa. Maintain stable flow output to meet the needs of high-precision transportation.Pump voltages are 220VAC. High efficiency self-priming, pump suck range up to 3m. High pressure conveying, lift up to 15m head.

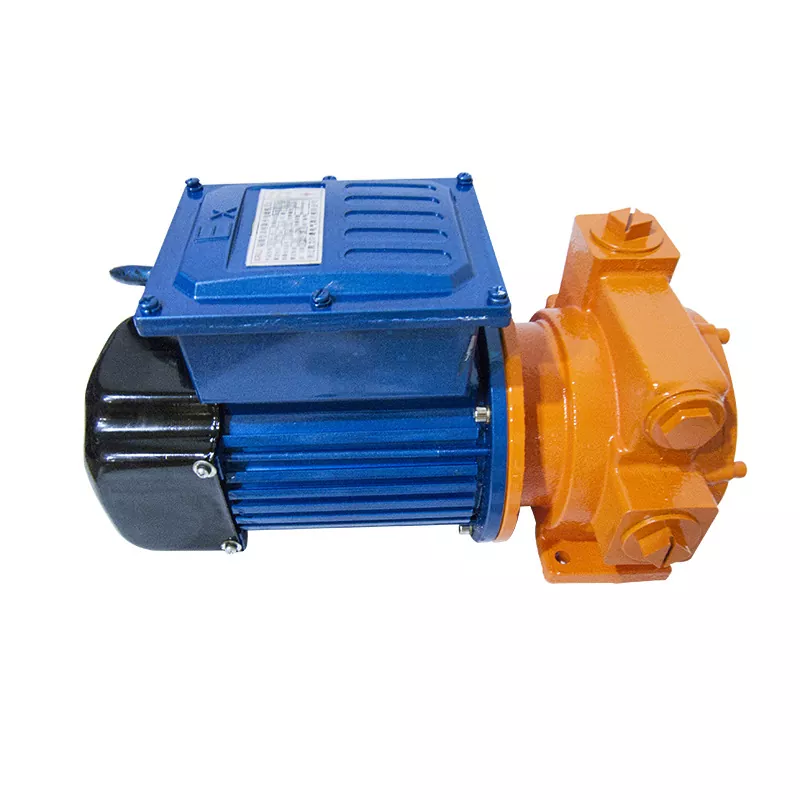

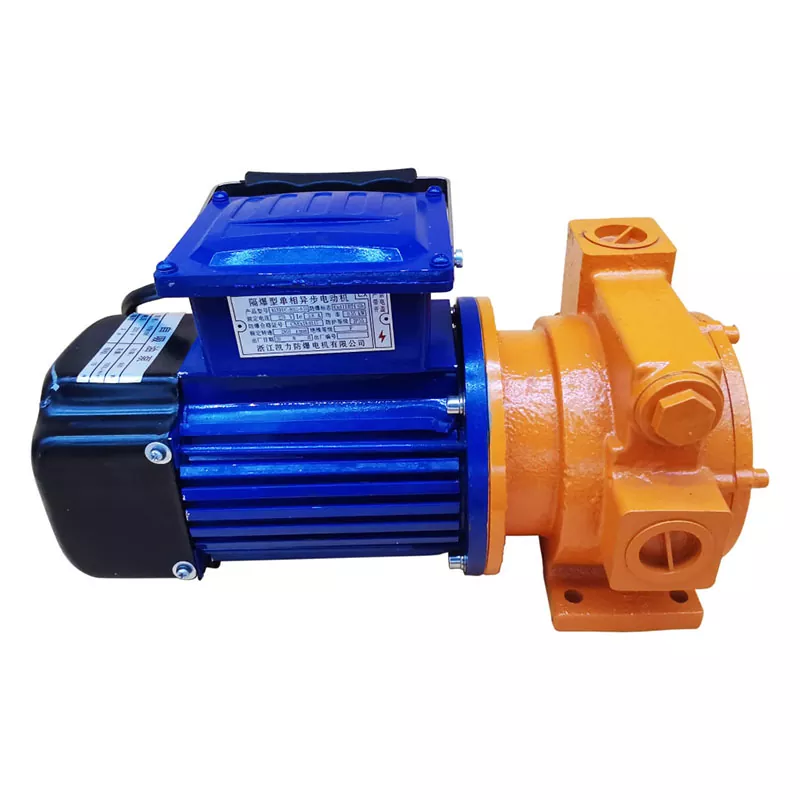

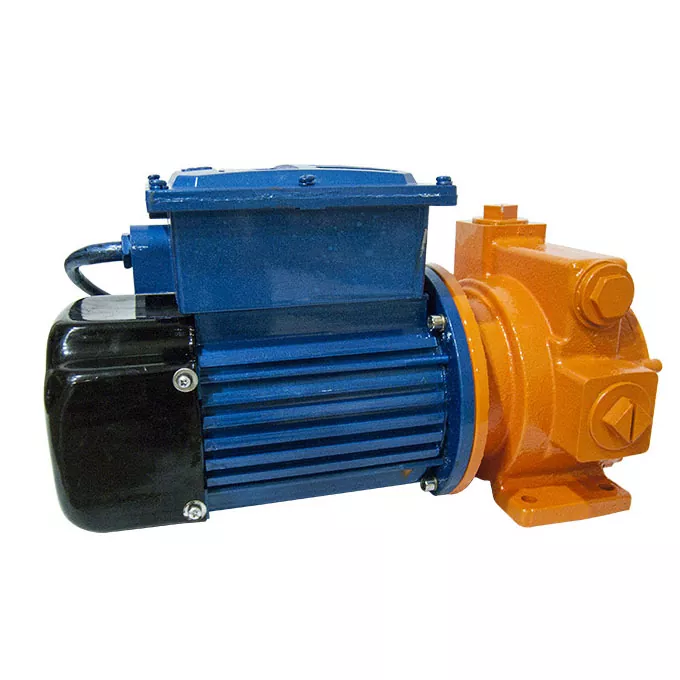

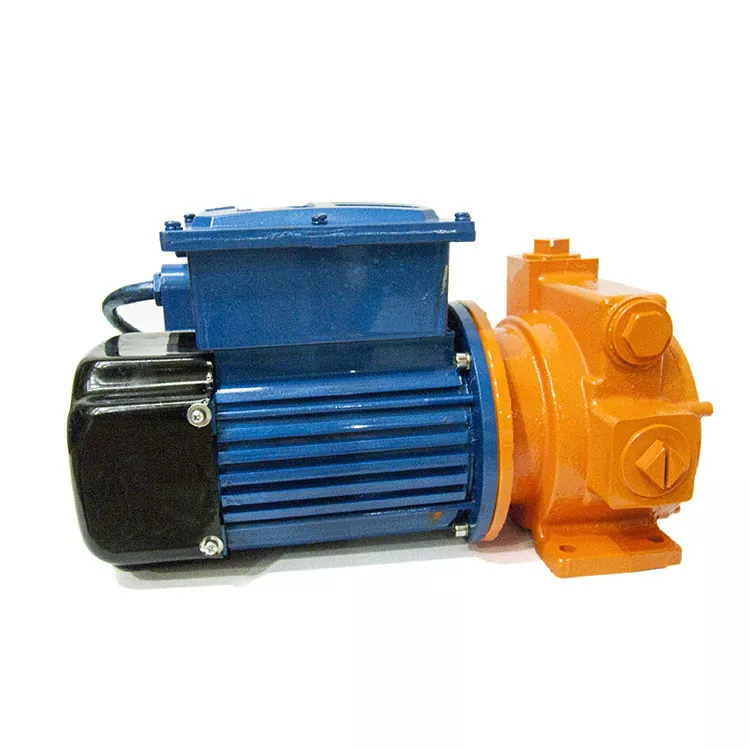

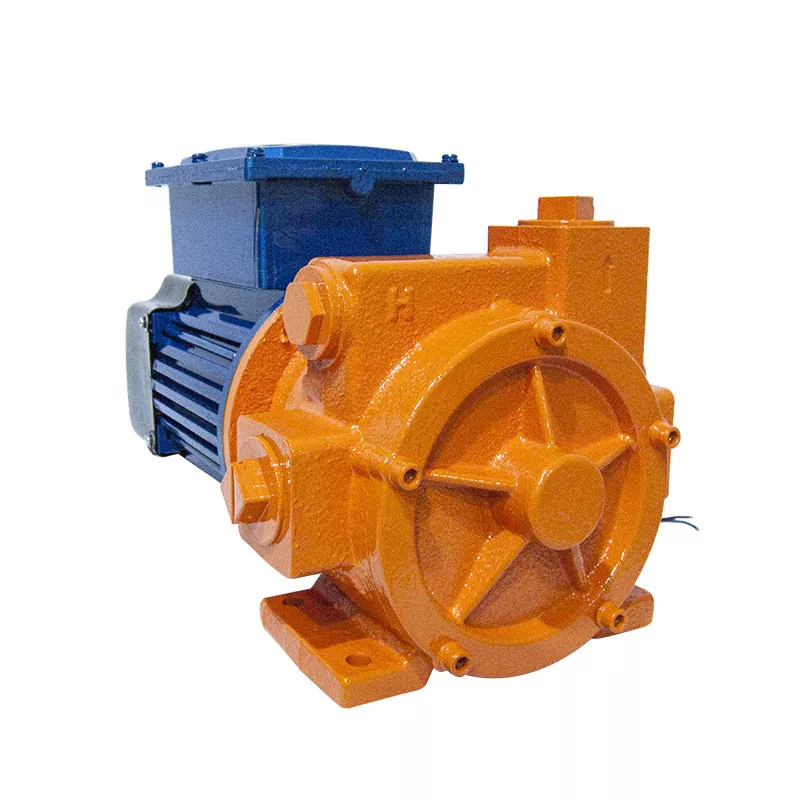

As a liquid transport equipment designed for flammable and explosive environments. Ex-Proof Petrol Oil Drum Pump is cast iron pump body and cast aluminum motor. It can be used for gasoline,alcohol and other explosion-proof media. Ex-Proof Petrol Oil Drum Pump belongs to vane pumps, most of which are built into small refueling machines for use. Built-in overflow valve.
|
Max flow: |
100L/min |
|
Vacuum degree: |
≤-0.03Mpa |
|
Voltage: |
12VDC/24VDC/220VAC |
|
Working Pressure: |
0.25Mpa |
|
Power: |
600W |
|
Suck: |
3m |
|
Lift: |
15m |
Ex-Proof Petrol Oil Drum Pump is based on its safety and explosion-proof characteristics, efficient delivery capacity and environmental adaptability. Widely used in the field of flammable and explosive liquid treatment.Such as the petrochemical industry, gas stations and so on.
1.Safe and reliable.Motor and pump body integrated explosion-proof design, to ensure the safety of high-risk environment.
2.High flow rate and efficient intelligence. Covers 100L/min wide range flow, suck and lift to 3m and 5m respectively. Easily cope with the rapid movement of liquids.
3.Low noise operation.
