Fuel Drum Pump

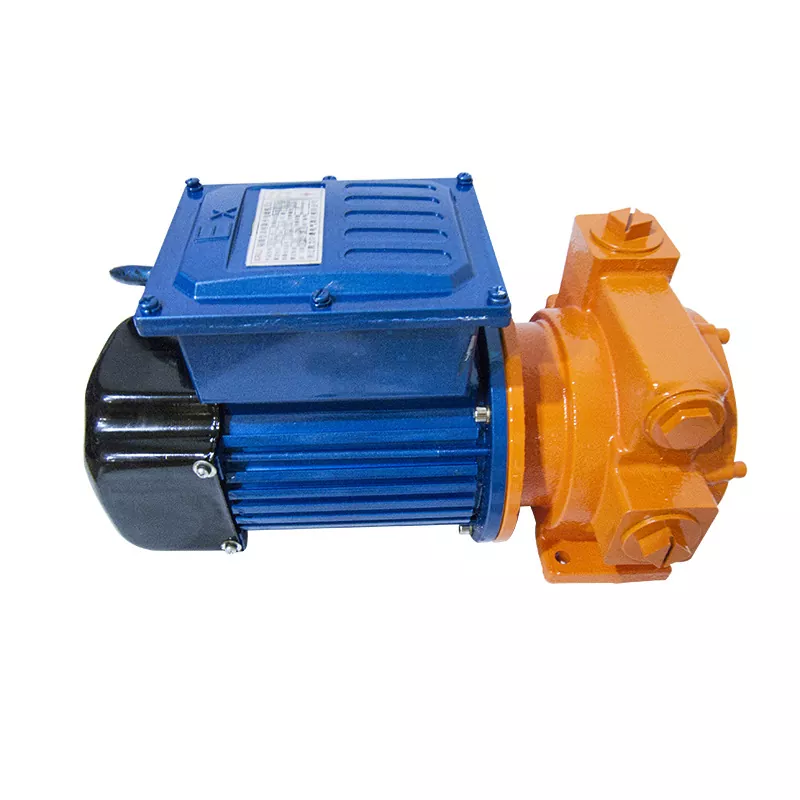

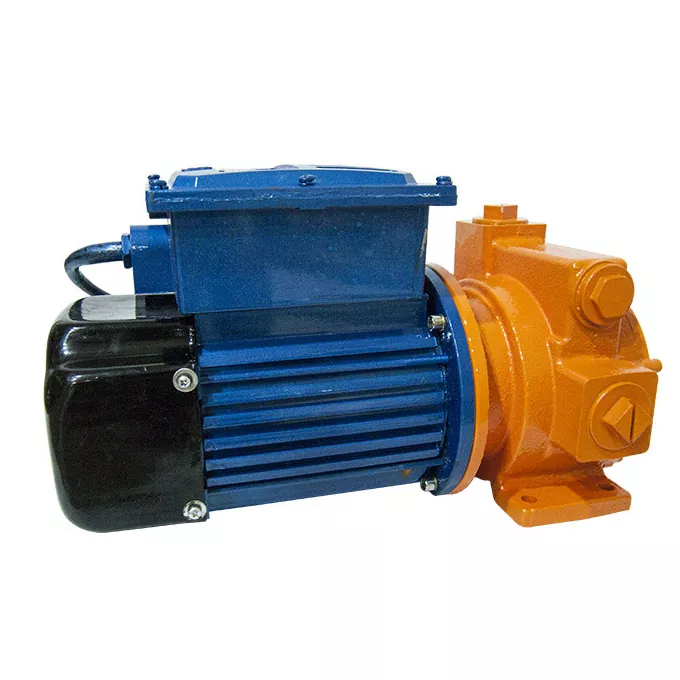

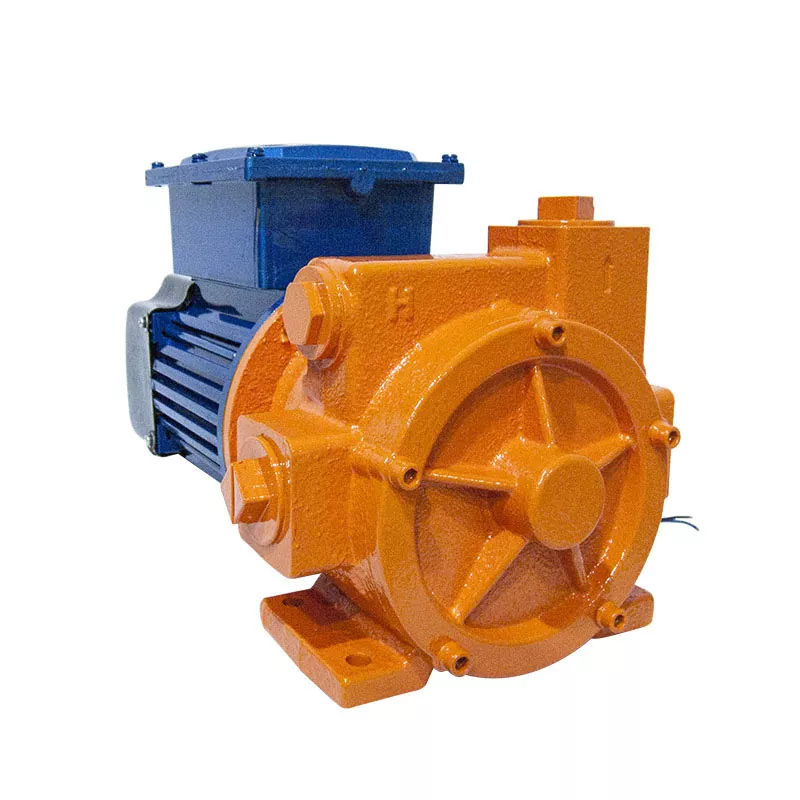

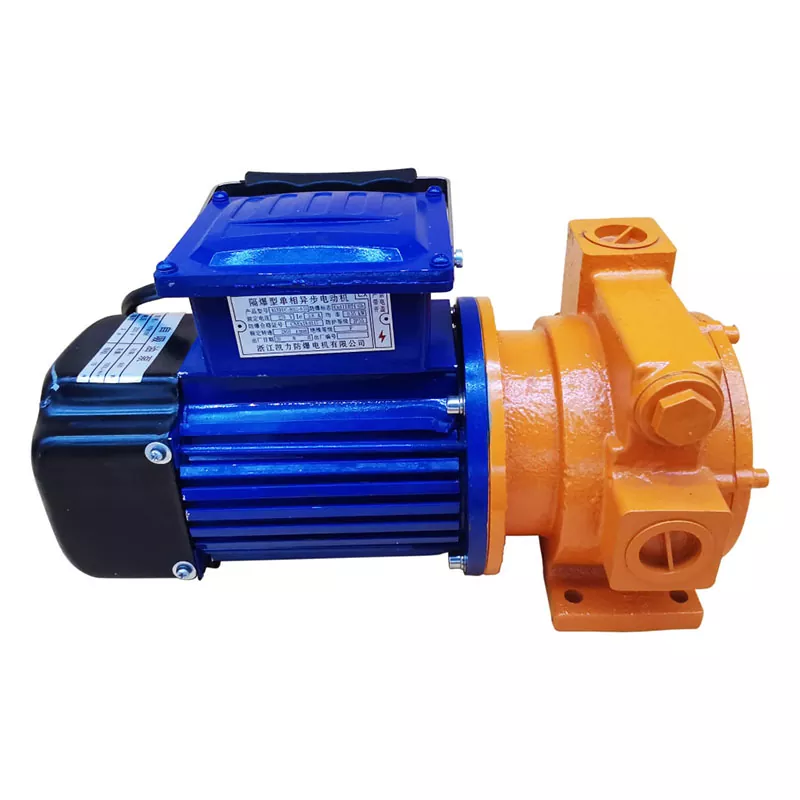

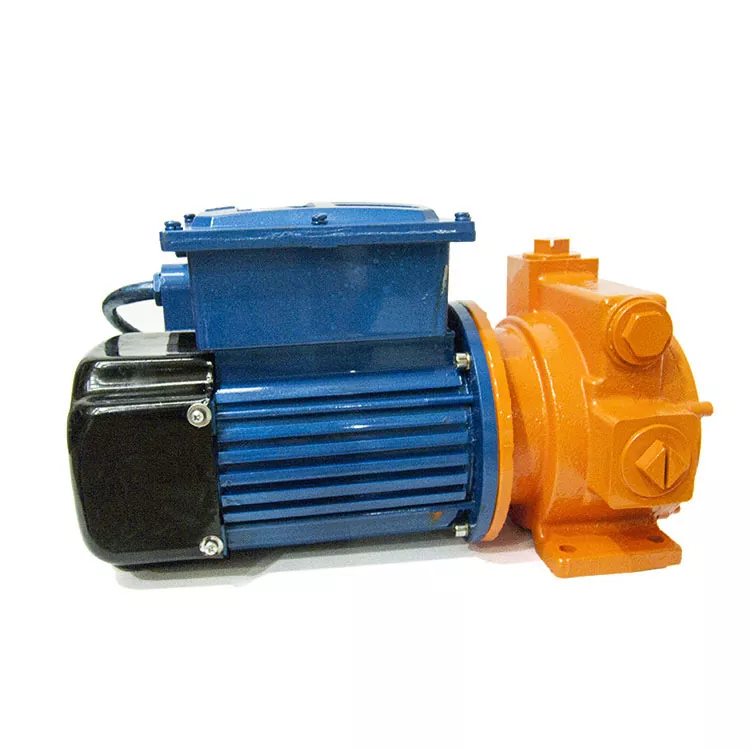

The EXYTB100 explosion-proof oil drum pump is a high-performance electric drum pump specially designed for flammable and explosive media such as gasoline and alcohol. This pump adopts a vane pump structure, with the pump body made of cast iron and the motor housing made of cast aluminum. It is equipped with an internal relief valve and features large flow, low noise, and high safety and reliability. It is widely applicable to places such as gas stations, small fuel dispensers, and chemical plants that require fire and explosion prevention for the transfer of liquid in barrels

Product Parameter (Specification)

Feature

The EXYTB100 explosion-proof barrel pump has significant advantages such as high flow rate, high safety and reliability, compact structure, and strong adaptability. The pump achieves a maximum flow rate of 100 liters per minute, and with a 15-meter head and 3-meter suction lift, it can quickly and efficiently complete the transfer of liquids from barrels. Its core advantage lies in being equipped with an explosion-proof motor and a built-in overflow valve, operating with low noise, and being able to safely convey flammable and explosive media such as gasoline and alcohol. It is widely applicable in fire and explosion-proof locations like gas stations, chemical plants, and oil depots. Furthermore, the pump supports multiple voltage options, including 12V/24V DC and 220V AC. The pump body is made of cast iron, and the motor housing is made of cast aluminum, making the structure rugged and durable. Additionally, it offers the flexibility of optional stainless steel or reinforced polypropylene materials to adapt to different corrosive media.

Application

1.It is used for safely and efficiently transferring gasoline, diesel and other fuels from 200-liter standard oil drums to storage tanks or refueling equipment, and is especially suitable for replenishing fixed fuel dispensers or emergency refueling operations.

2.It is suitable for the extraction and filling of flammable and explosive chemical solvents in barrels (such as toluene, alcohol, acetone, etc.). The pump body can be optionally made of stainless steel, which has corrosion resistance.

3.It is used to extract flammable liquids such as coatings, paints and thinners. Its explosion-proof design can effectively avoid the risk of electrical sparks and ensure the safety of the working environment.

4.It is used in the process of storing, discharging or distributing liquid in barrels to quickly complete the operations of transferring barrels, filling or emptying the liquid, significantly improving the efficiency of material turnover.

Production Details
