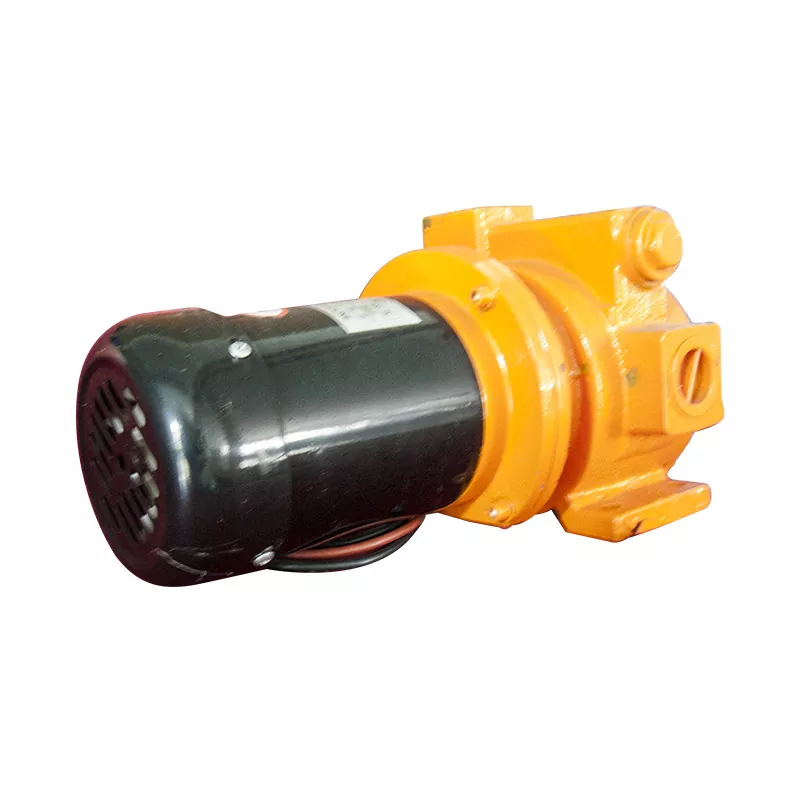

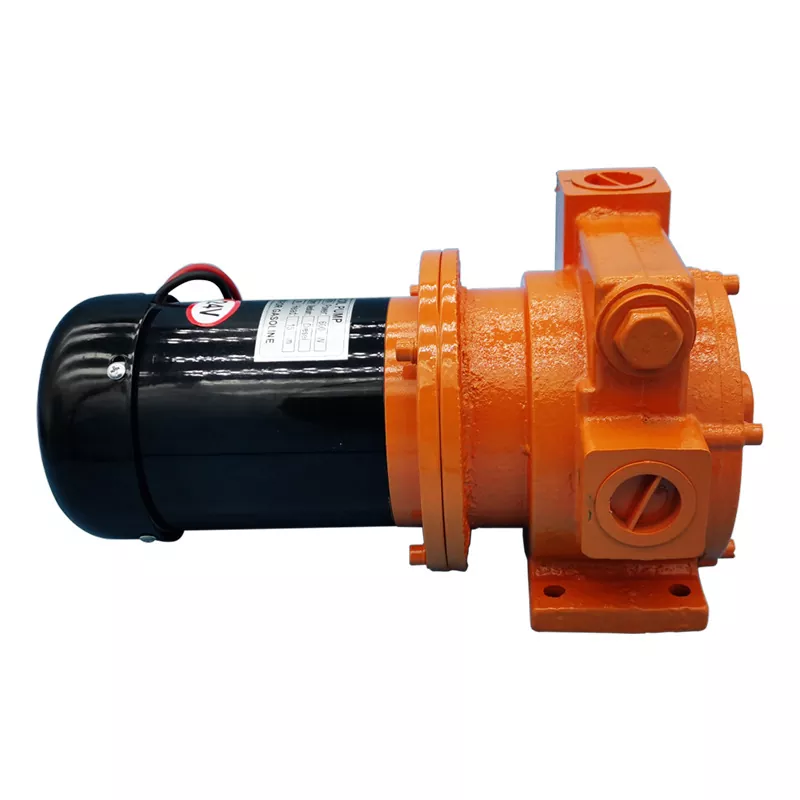

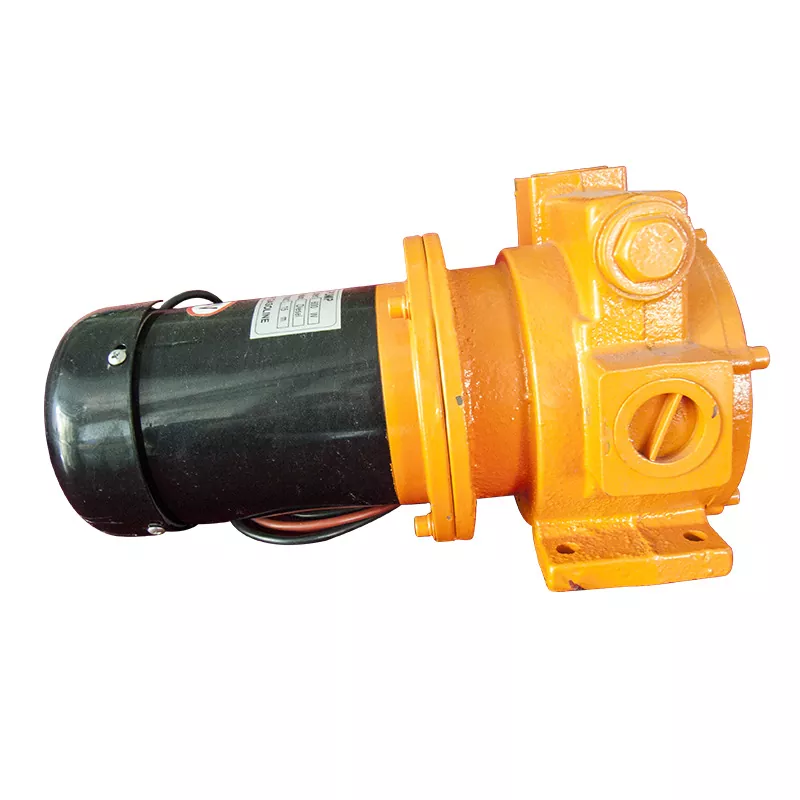

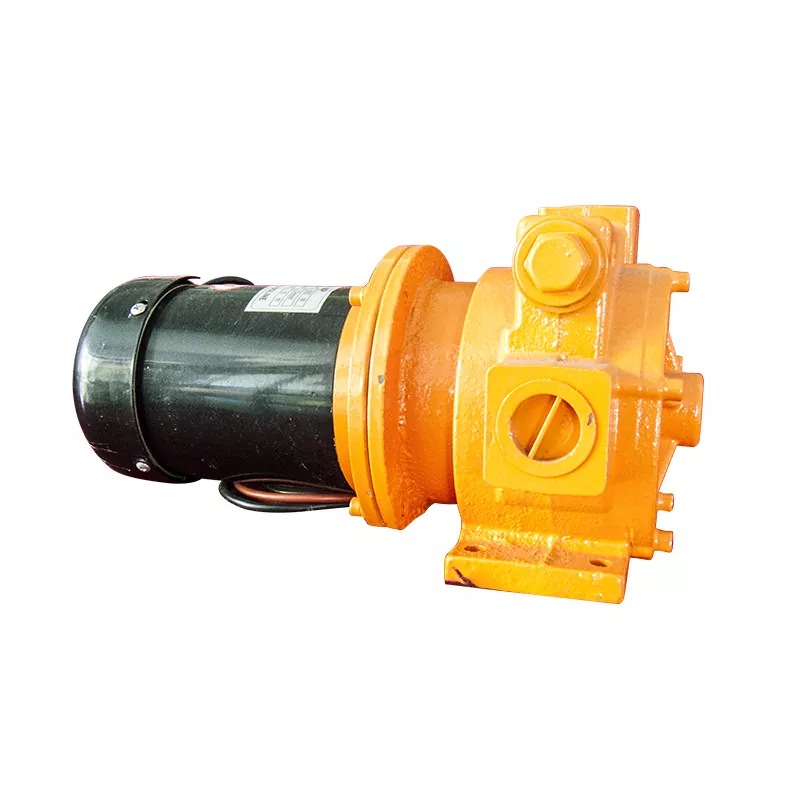

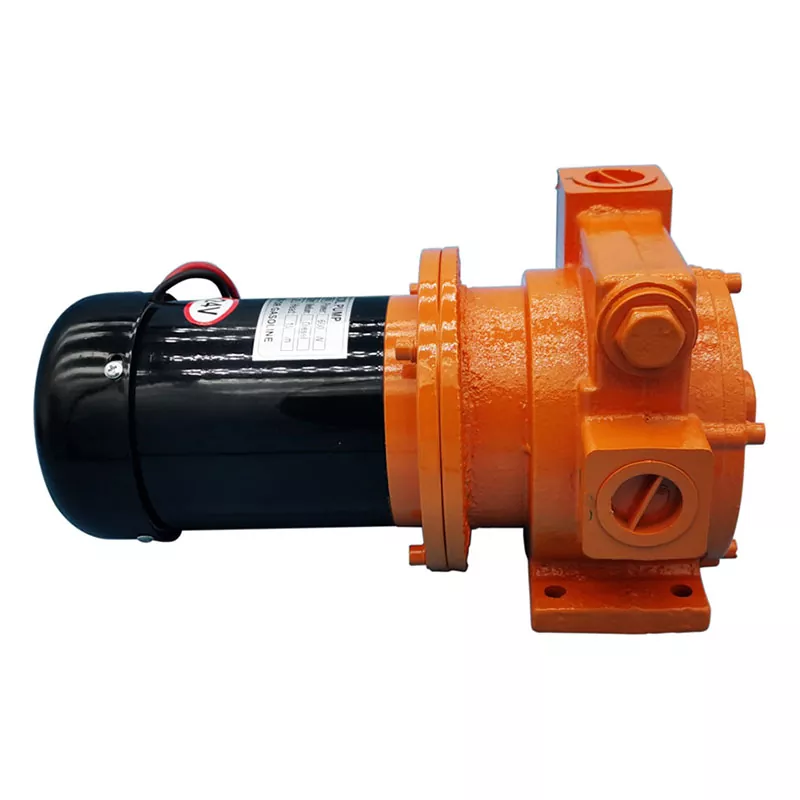

Diesel Drum Pump

Diesel Drum Pump are designed to be safe and reliable, with 12VDC and 24VDC dual voltages to meet the needs of different working conditions. Diesel Drum Pump excellent performance is: while maintaining the working pressure of 0.25Mpa, it can achieve a maximum flow rate of 100L/min, with a strong power output of 600W, so that ensure the continuous stability of the flow rate.The suck range of 3 meters significantly improves the medium absorption efficiency,and can easily handle the vertical height of 15 meters.

Product Introduction

Diesel Drum Pump is made of cast iron material to build the pump structure, and equipped with cast aluminum motor, which can safely transport diesel oil, kerosene and other non-explosion-proof media. Diesel Drum Pump is often integrated as a core component in small refueling equipment, and its distinctive feature is that it is equipped with a pressure protection device - a built-in overflow valve to ensure stable operation under complex conditions.

Product Parameter (Specification)

Product Feature And Application

Diesel Drum Pump is a tool specially used to extract oil or other liquids from oil drums, storage tanks and other containers, and its application places are very wide. It features are also very obvious.

1.High energy output to meet the needs of efficient transportation. Stable working pressure control ensures fluid delivery accuracy. Strong power to ensure continuous and stable flow.

2.Efficient self-priming capacity and conveying performance, continuous stability.

3.When used, the noise generated is low.

Production Details
