Flowmeter for Dispenser

The combined pump pumps the oil into the flow measurement converter, which uses the pressure difference between the inlet and outlet to push the piston. The piston drives the connecting rod, the connecting rod drives the crankshaft, and the crankshaft drives the distribution valve. The piston reciprocates through the conversion of the distribution valve. Each cycle of the four pistons discharges 0.5 liters of oil.

Product Parameter (Specification)

Feature

The core advantages of the FM4B flow measurement converter are usually reflected in the combination of "high-precision measurement" and "long-term operational stability". The key lies in the internal precisely processed mating components (such as the rotor and the cavity), which can form a stable volumetric cavity under fluid drive. Thus, even under frequent starts and stops of fuel filling and complex working conditions, it can still maintain extremely high repeatability and measurement accuracy. In addition, its wear-resistant design and low pressure loss feature help to reduce the overall energy consumption of the machine while ensuring a long service life.

Application

1.High-precision measurement: Utilizing advanced Japanese technology, the measurement accuracy can reach ±0.2%, and the repeatability error is controlled within 0.07%, ensuring the accuracy and reliability of commercial fuel transactions.

2.Wide flow range: The flow range covers 5-80L/min, which can adapt to different flow rate refueling scenarios and meet the usage requirements of various refueling machine equipment.

3.Long service life: With an excellent wear-resistant design and precisely processed mating components, it can maintain long-term stable operation under frequent start-stop conditions.

4.Wide adaptability: It can be widely applied to different types of fuel dispensers and is suitable for the measurement and metering of various fuels such as gasoline and diesel

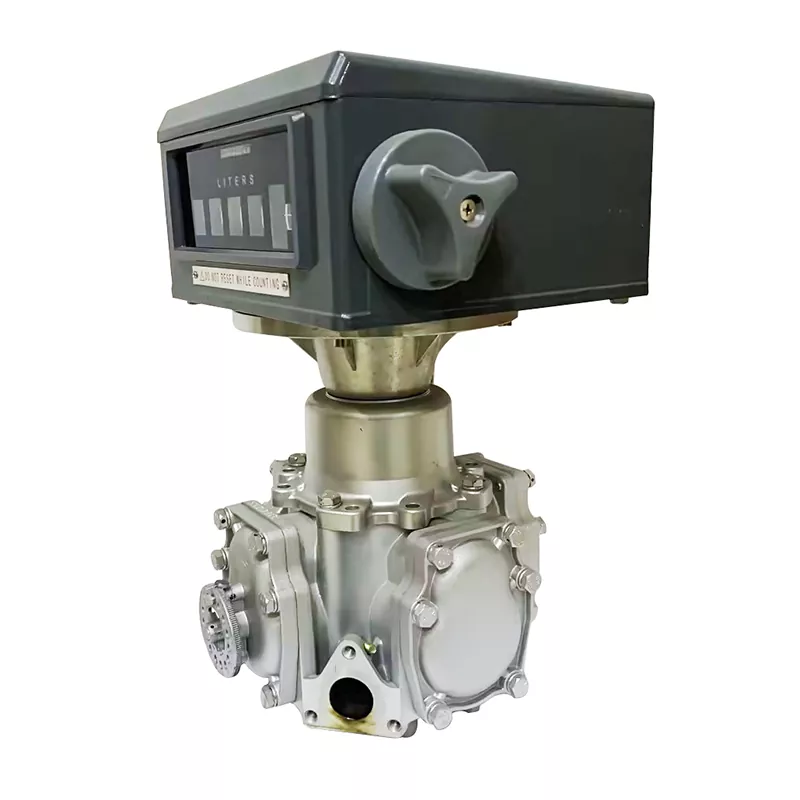

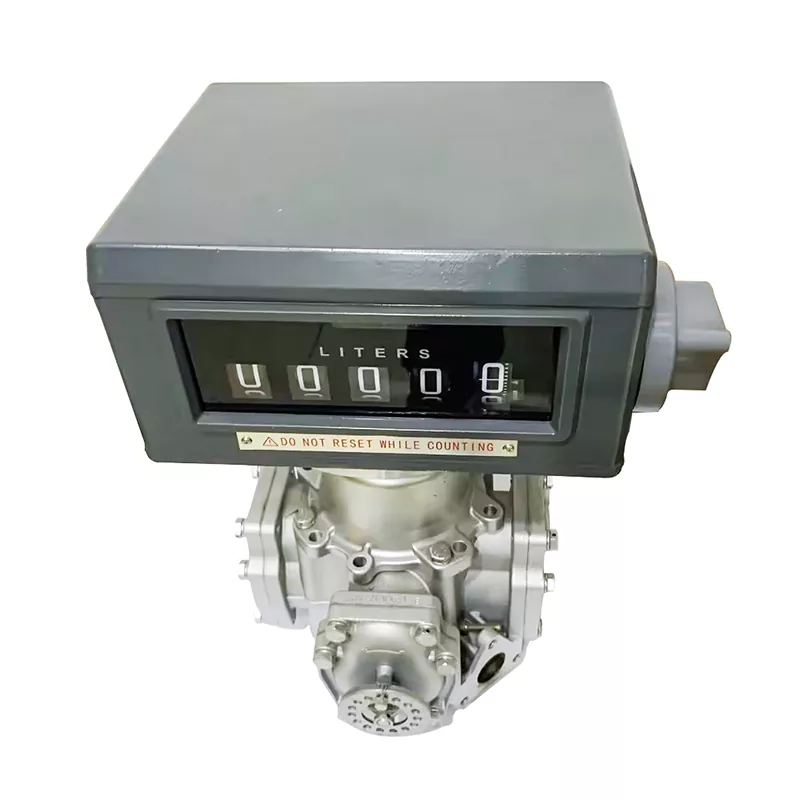

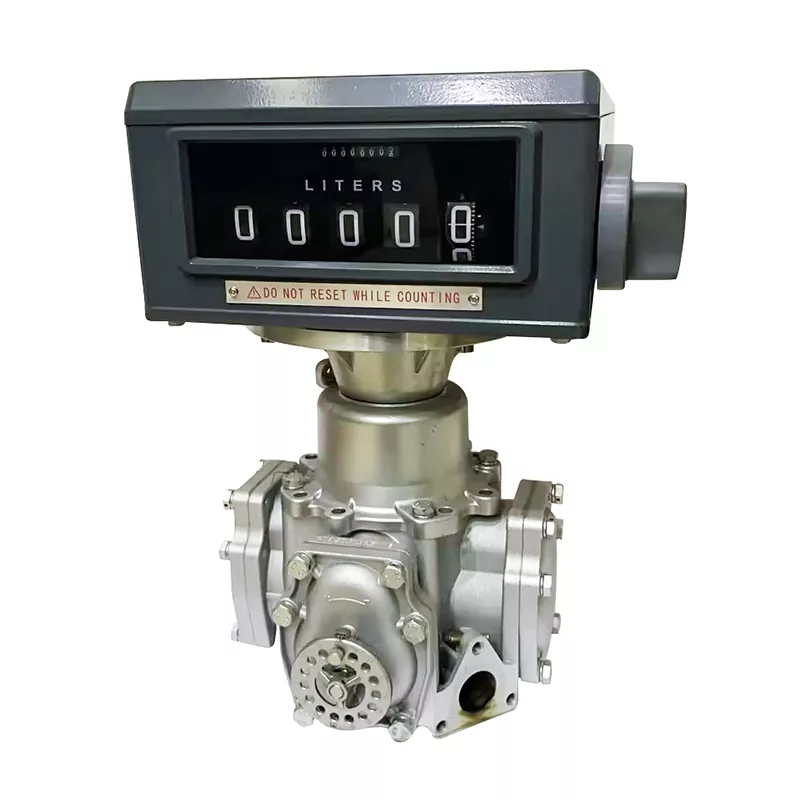

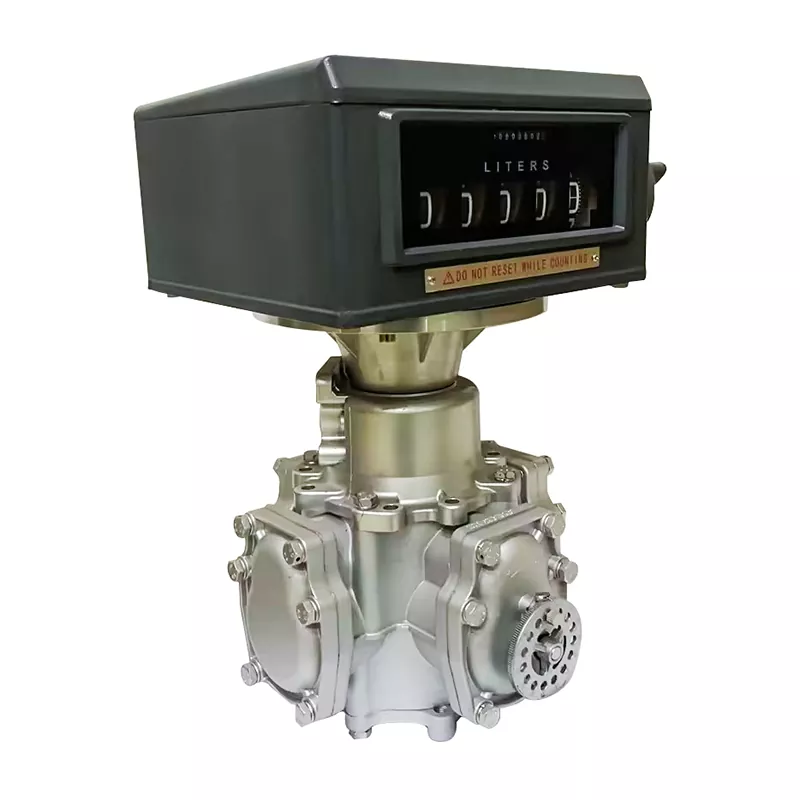

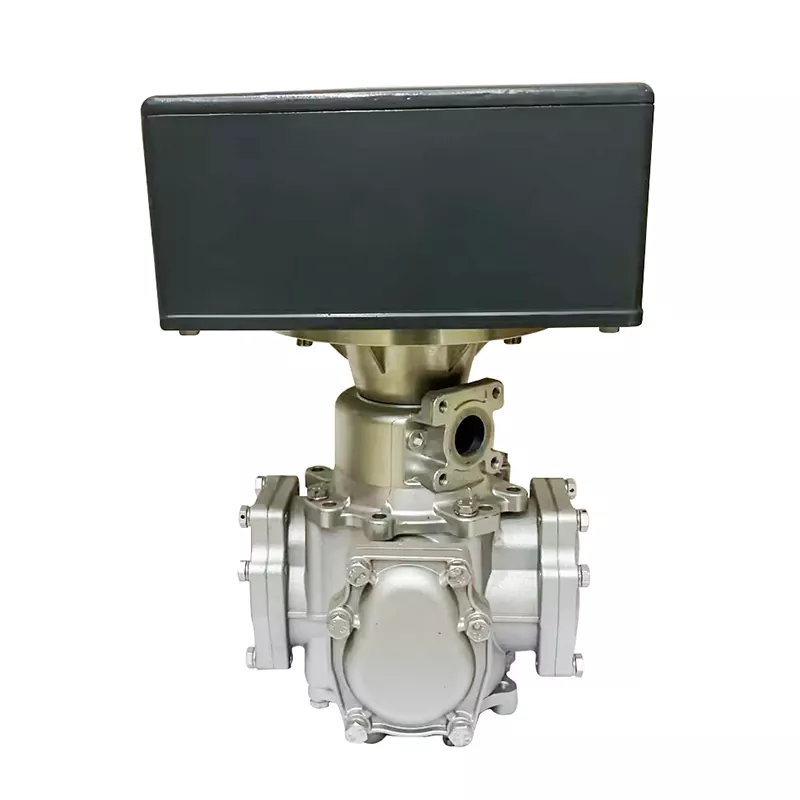

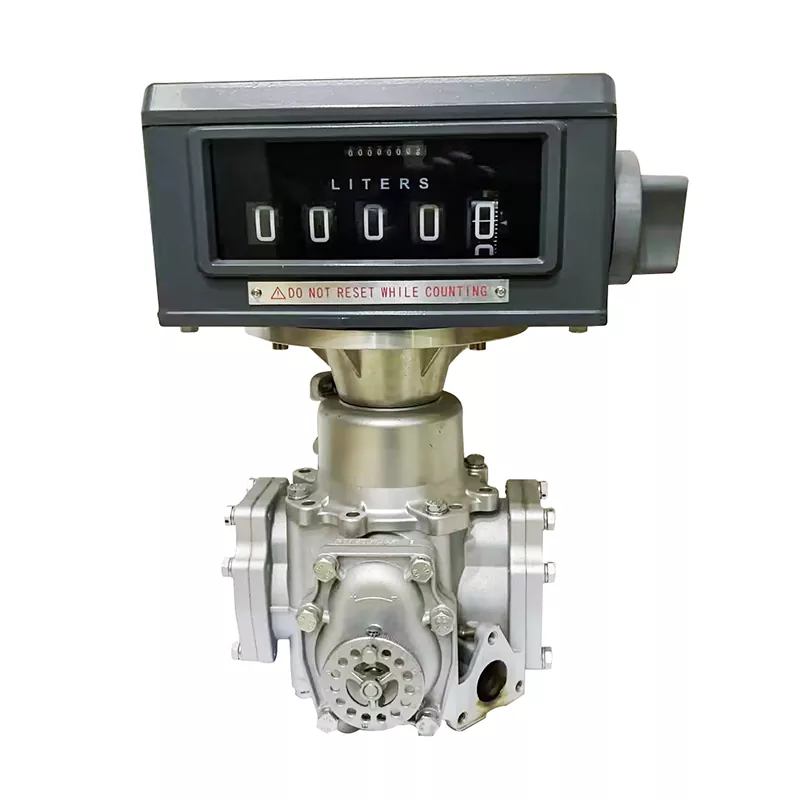

Production Details
