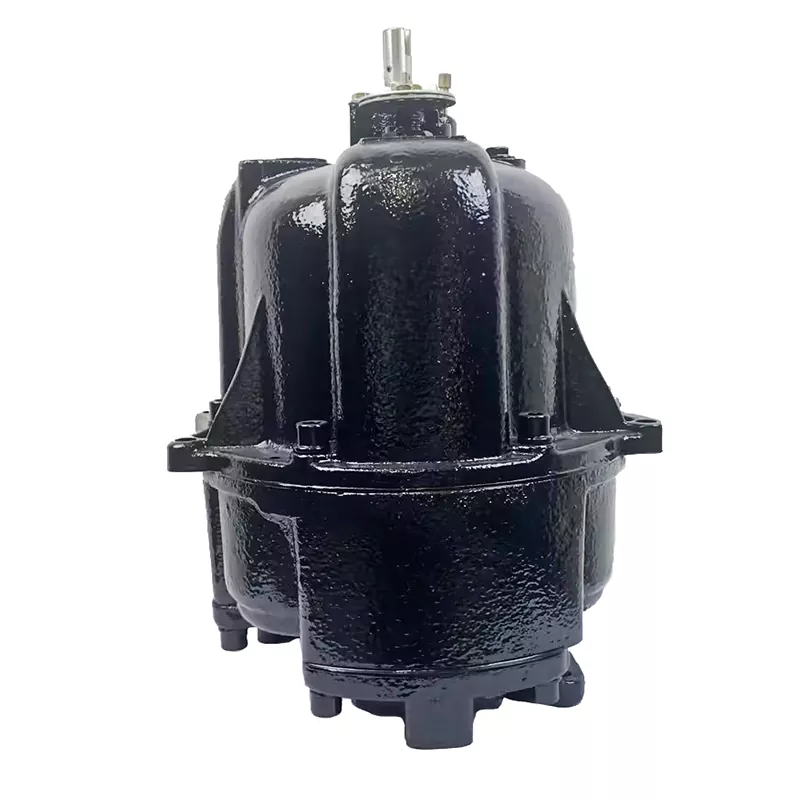

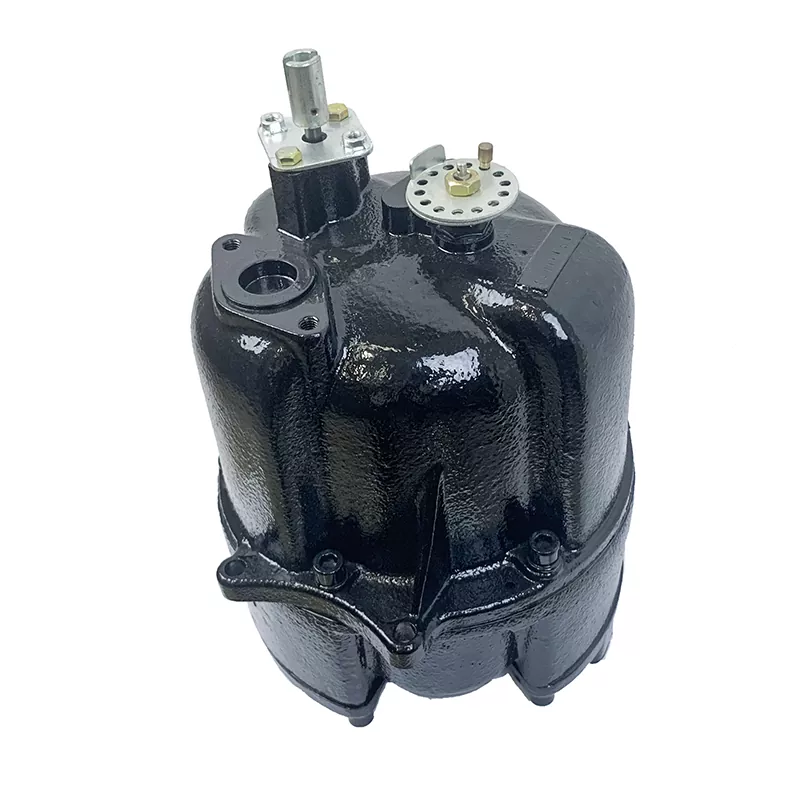

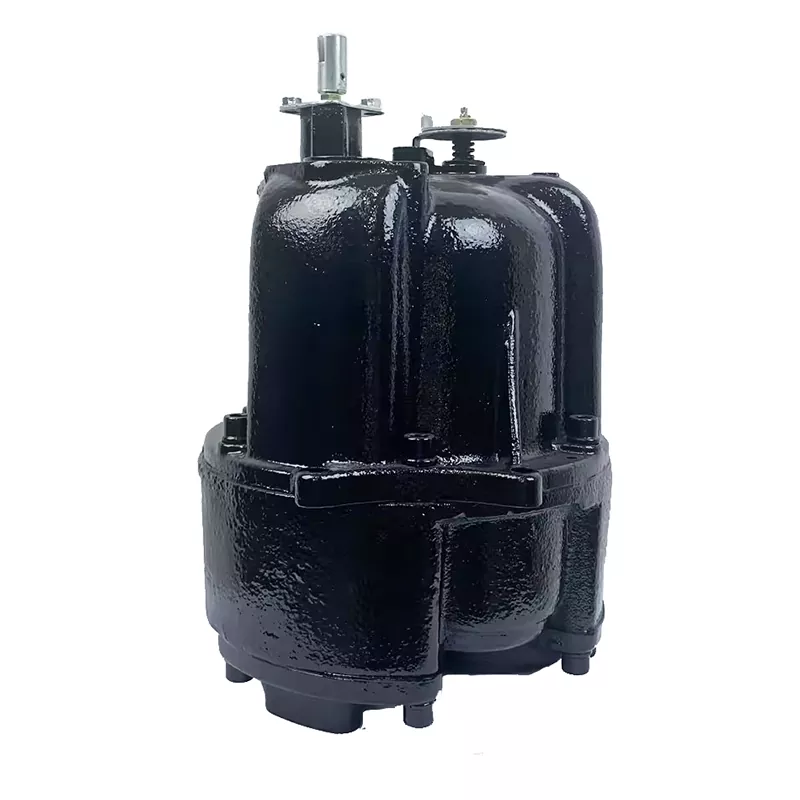

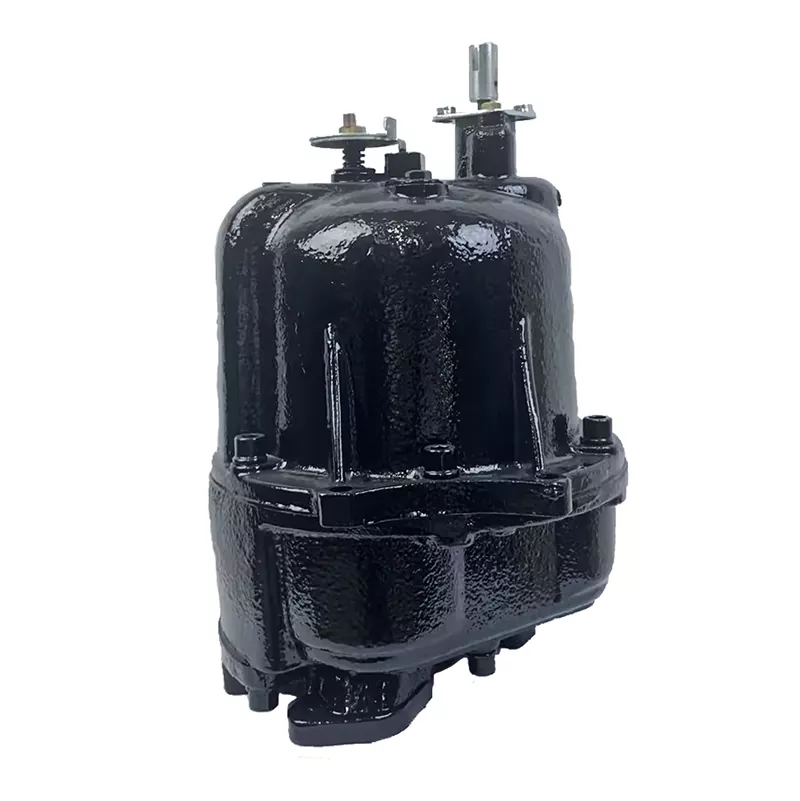

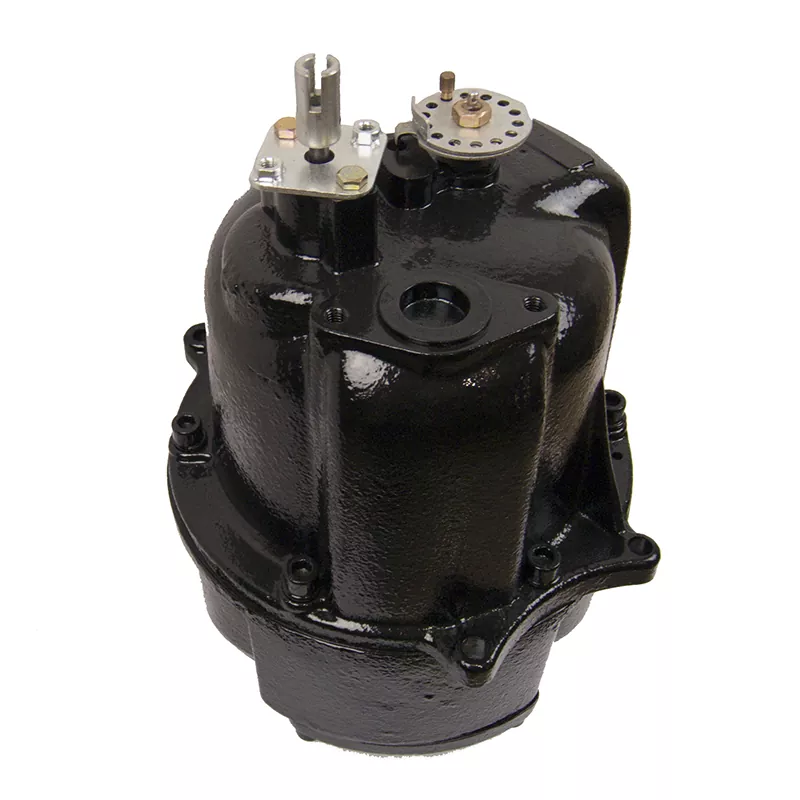

The FM3 flow meter，driving the three pistons to reciprocate. When the pistons are pushed by the pressure oil and each completes one oil intake and one oil discharge in sequence, one working cycle is completed. The volume of fuel passing through one working cycle is a stable value, that is, the displacement. At this time, the transmission shaft above has turned two times. Therefore, the volume of fuel flowing through the meter can be determined based on the number of turns of transmission. Each cycle of the three pistons discharges 0.525 liters of oil.
|
Measuring Range |
(5-60)L/min |
|
Discharge rate per revolution : |
0.5L |
|
Adjustable Minimum Volume : |
0.11% |
|
Accuracy: |
≤+0.2% |
|
Repeatable Tolerance: |
≤0.07% |
|
Package: |
1pcs/carton |
|
Net Weight: |
23kg |
|
Gross Weight: |
25kg |
|
Dimension: |
28*260*450mm |
The core advantages of the FM3 flow meter lie in its high metering accuracy and rugged durability. It features a three-piston structure that precisely dispenses 0.525 liters of fuel per cycle, ensuring the accuracy of fueling metering. Additionally, the pump has a compact structure with a connecting rod limit design, providing smooth and stable operation, high safety and reliability, a long service life, and ease of operation and maintenance. Furthermore, it is compatible with a wide range of fuel types, including gasoline, diesel, kerosene, and blended fuels, making it highly suitable for high-frequency, multi-fuel commercial fueling environments.
1. Core component for fuel dispensers: The FM3 flow meter is a core metering component specifically designed for fuel dispensers, used to accurately measure the volume of fuel dispensed by the dispenser.
2. Compatible with multiple fuel types: The flow meter is widely applicable for fueling services involving kerosene, diesel, gasoline, and blended fuels, meeting the metering needs of gas stations for different fuel types.
3. Suitable for bio fuels: In addition to conventional fuels, the FM3 flow meter is engineered to be compatible with bio fuels and fuel blends containing additives, adapting to evolving market demands.
4. Integrated into various dispenser systems: The flow meter can be integrated into multiple types of dispenser systems, including electronic and mechanical ones, offering broad adaptability.
