Red Jacket Submersible Pump Head

Red Jacket Submersible Pump Head is a high-performance submersible pump unit with a rated operating pressure of 0.28MPa for stable and efficient fluid transfer capability. This series of products is available in 220V and 380V dual voltage versions, and equipped with three power specifications of 0.75HP, 1.5HP and 2HP. With 2800r/min high speed design, can achieve a wide flow range of 200L/min to 350L/min, to meet the needs of diverse scenarios. The environmental adaptability of Red Jacket Submersible Pump Head is outstanding, can be stable operation in the extreme temperature environment of -25℃ to +55℃. While noise reduction technology to control the working noise level of ≤68dB, taking into account the characteristics of high efficiency and low noise.

Product Introduction

Red Jacket Submersible Pump Head adopts explosion-proof ' db ' structure design, which meets the application standard of explosive gas environment zone 1, and its explosion-proof certification mark is Ex db IIB T4 Gb. Used for diesel kerosene gasoline and other oil products. All exposed metal parts of the equipment are treated by special anti-corrosion process, which can effectively prevent corrosion and structural damage during long-term use. Red Jacket Submersible Pump Head adopts an all-stainless steel material manufacturing system to ensure efficient operation and maintenance performance throughout the life cycle.

Product Parameter (Specification)

Product Feature And Application

Red Jacket Submersible Pump Head：Features quick installation,intuitive maintenance and testing,while redefining safety standards in electrical and environmental.

1. Physically isolate the electrical connection system from the fuel delivery channel.

2. The yoke can be assembled quickly without adaptation adjustment, significantly improving construction efficiency.

3. When the bolt is removed, the electrical connection device is automatically separated, effectively eliminating the risk of electric shock.

4. Realize automatic fuel recovery to the storage tank to prevent environmental pollution.

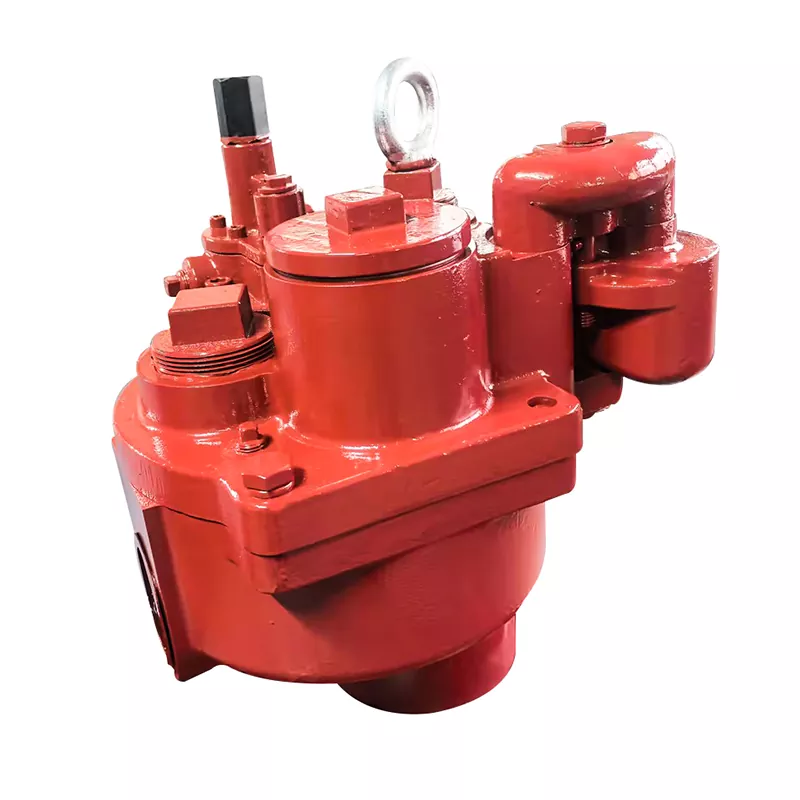

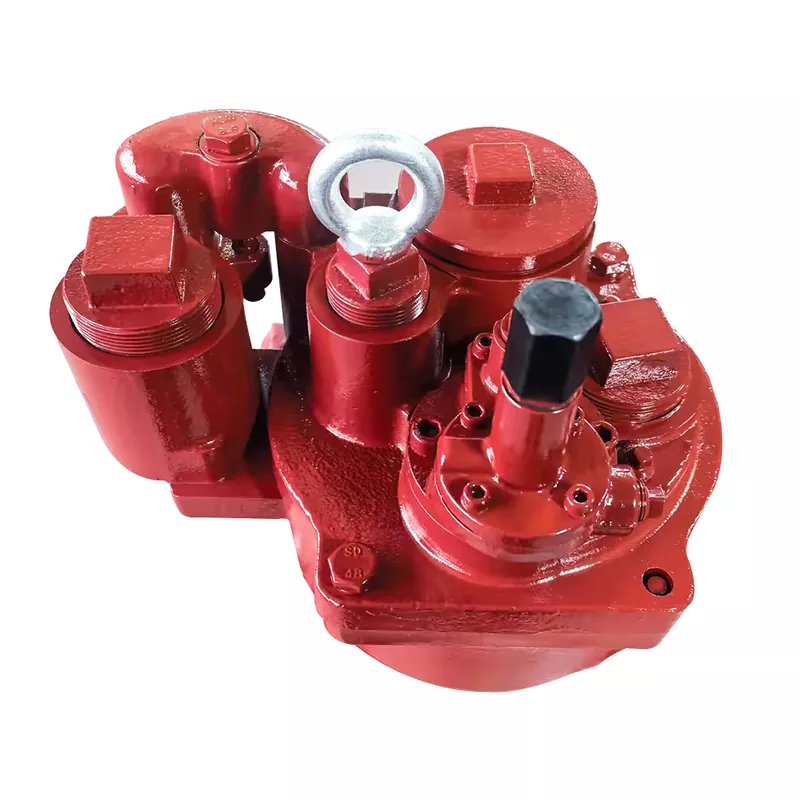

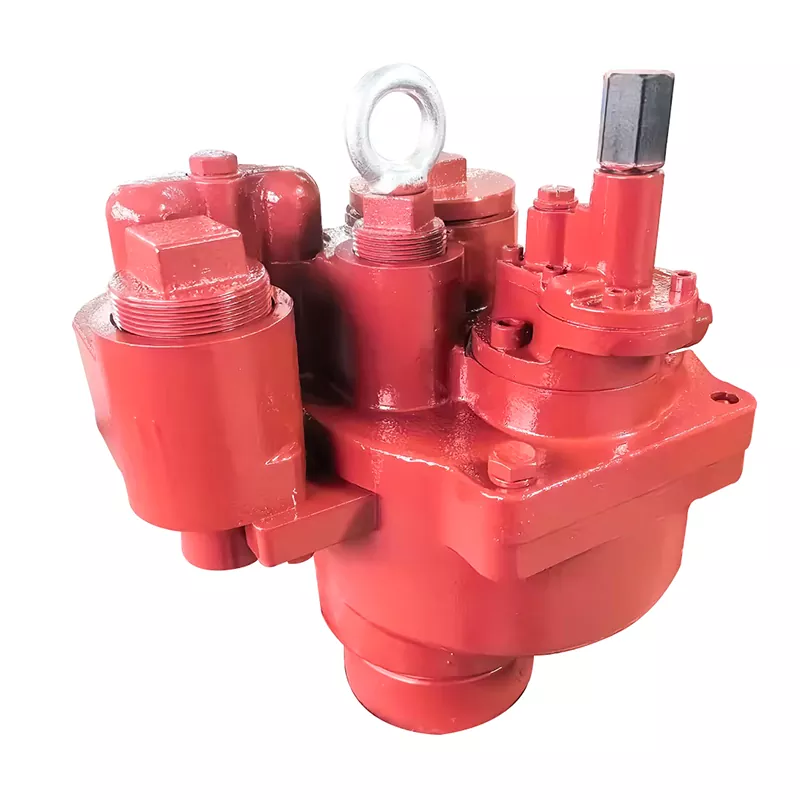

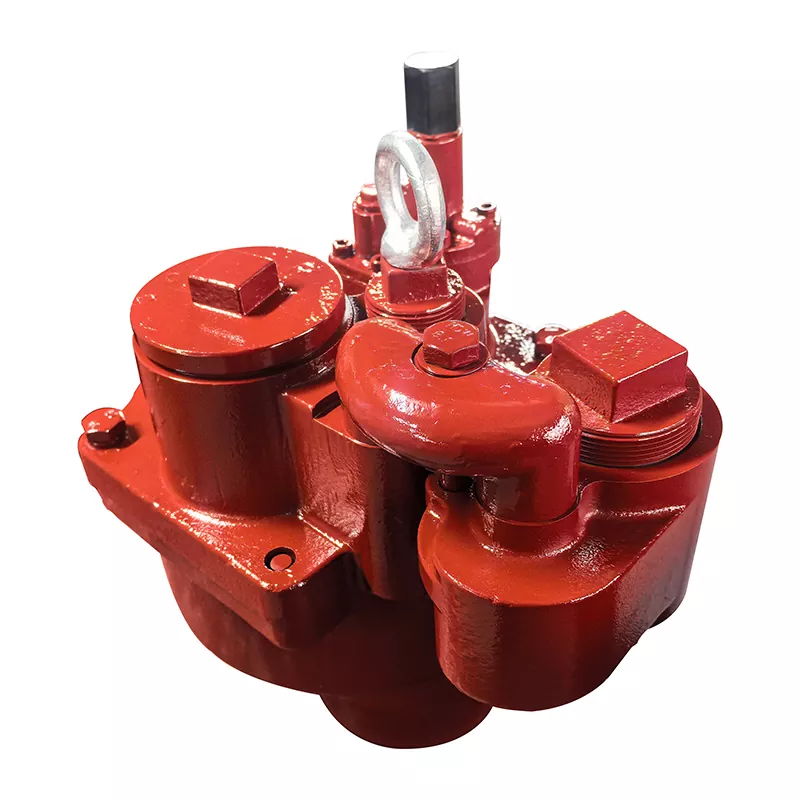

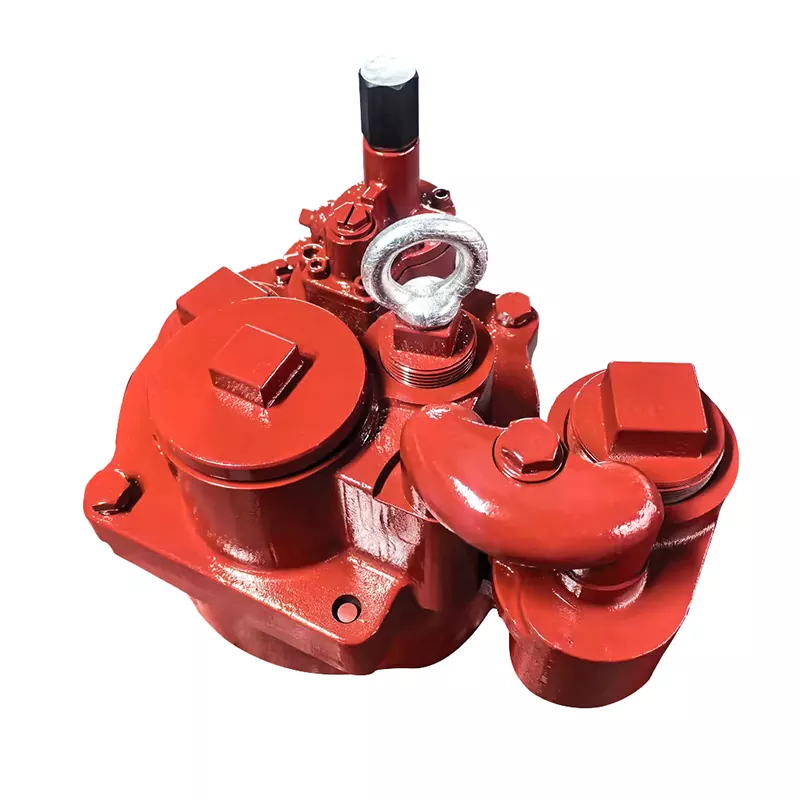

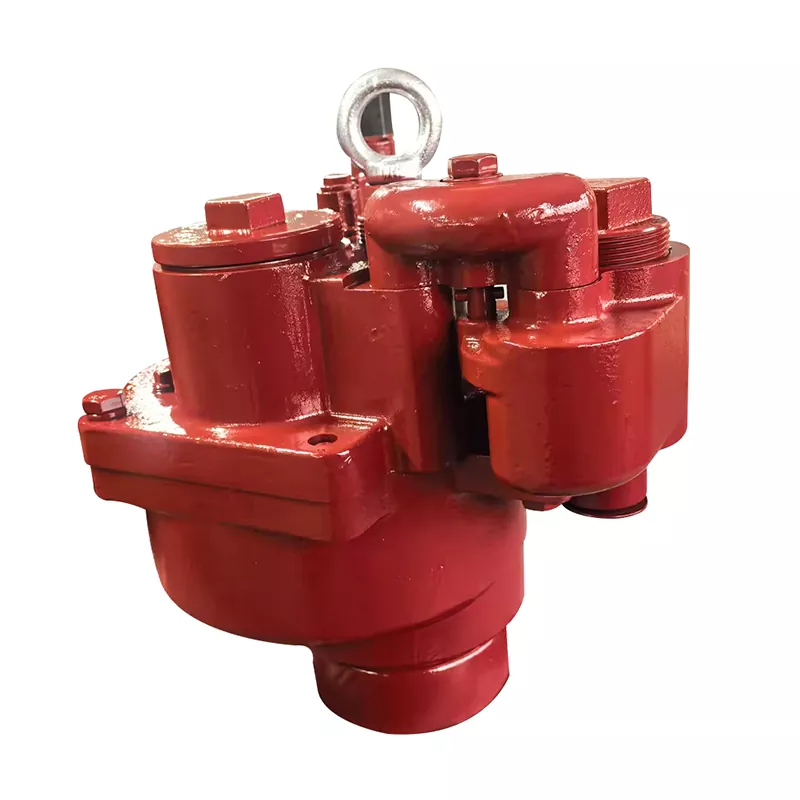

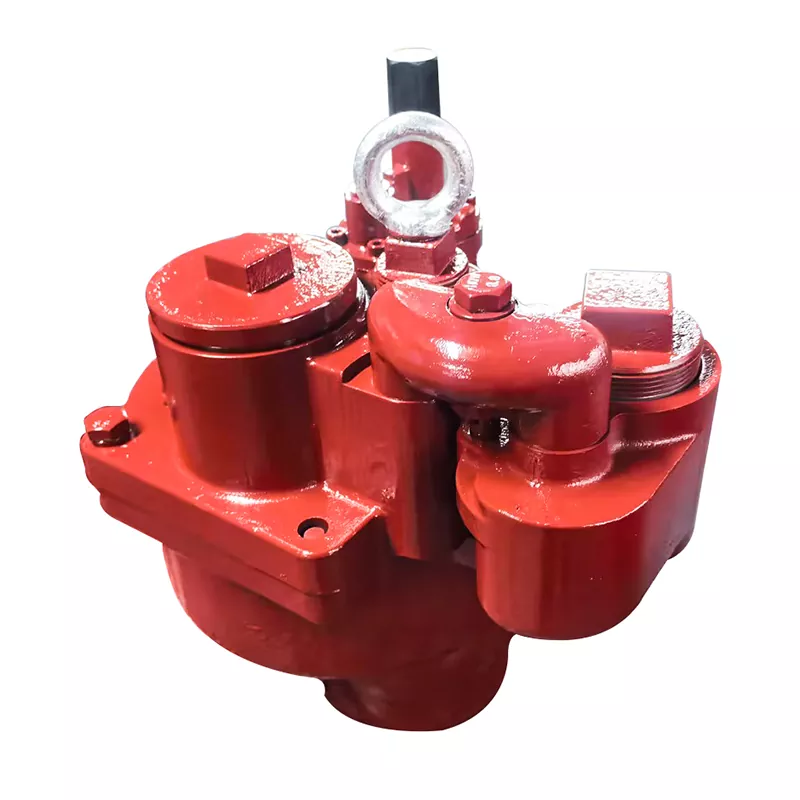

Production Details
