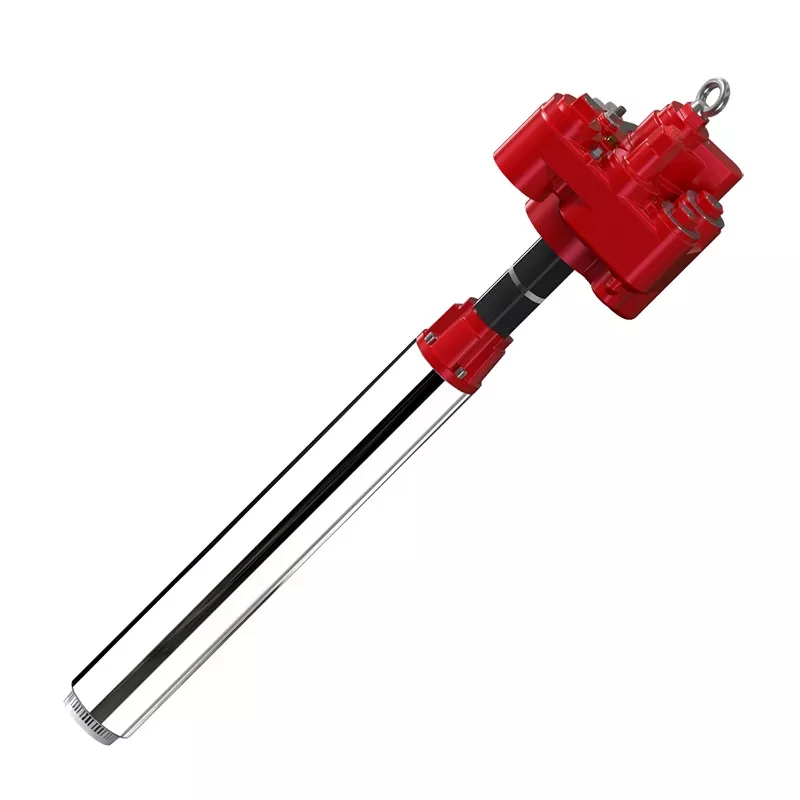

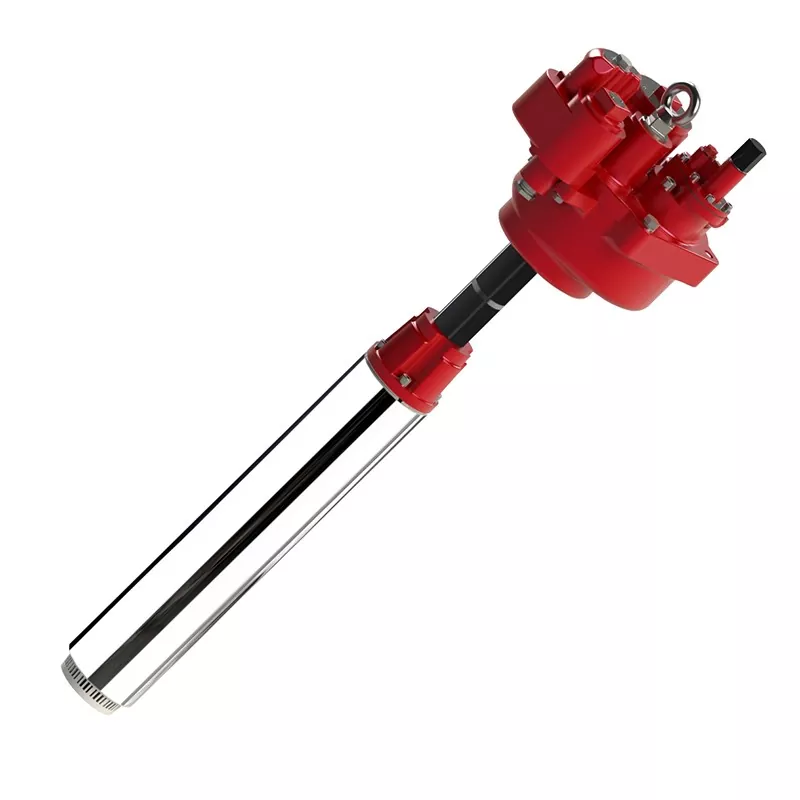

Full Set Submersible Pump with Motor and Telescope Tube

The use environmental conditions of Full Set Submersible Pump with motor and telescope Tube are as following.1) Ambient Temperature:-25°C~+55°C; 2)Atmospheric pressure: 80 KPa ~ 106 KPa; 3)Relative humidity: 90% ,when the ambient temperature is at 25℃; 4)Where there is no significant shaking and impact vibration; 5) In an environment of gas or vapours without damaging insulation.The performance index of Full Set Submersible Pump with motor and telescope Tube include:1) noise:68Db; 2) Maximum pump pressure: 0.3MPa;  3)Speed: 2800r/min;  4)levels of protection: IP54.

Product Introduction

Full Set Submersible Pump with motor and telescope Tube is directly immersed in the oil, and the oil is pushed to the fuel dispenser under pressure without gasification.  Submersible pump is composed of submersible pump motor and the upper part of the submersible pump.Full Set Submersible Pump with motor and telescope Tube body is made of explosion-proof special "sa", the pump head is made of explosive proof shell "db"; the pump body part can be used in area 0 place in explosive gas environment, the explosion-proof mark is Ex db sa IIB T4 Ga / Gb; the pump head part can be used in area 1 place in explosive gas environment, and the explosion-proof mark is Ex db IIB T4 Gb.

Product Parameter (Specification)

Product Feature And Application

As the latest design of the company products, Full Set Submersible Pump with motor and telescope Tube has the following features and uses.

1. Precise and reasonable product design provides more energy consumption while providing more flow.

2. More compatible component design to meet the repair or replacement between different brands of equipment.

3. Independent cavity design makes the maintenance simple, reduces the possibility of causing new faults, and is safer.

4. The submersible pump motor has an automatic protection device. When the motor temperature rises to 95℃, it will automatically stop. When it below 45℃, the motor will automatically start running again.

5. The precise automatic pressure relief valve and check valve design ensures the constant pressure of the fluid and enables the leakage or sealing test of the oil transmission pipeline to run smoothly.

6. The design of the manual pressure relief valve prevents the occurrence of dangerous situations such as oil spill during maintenance.

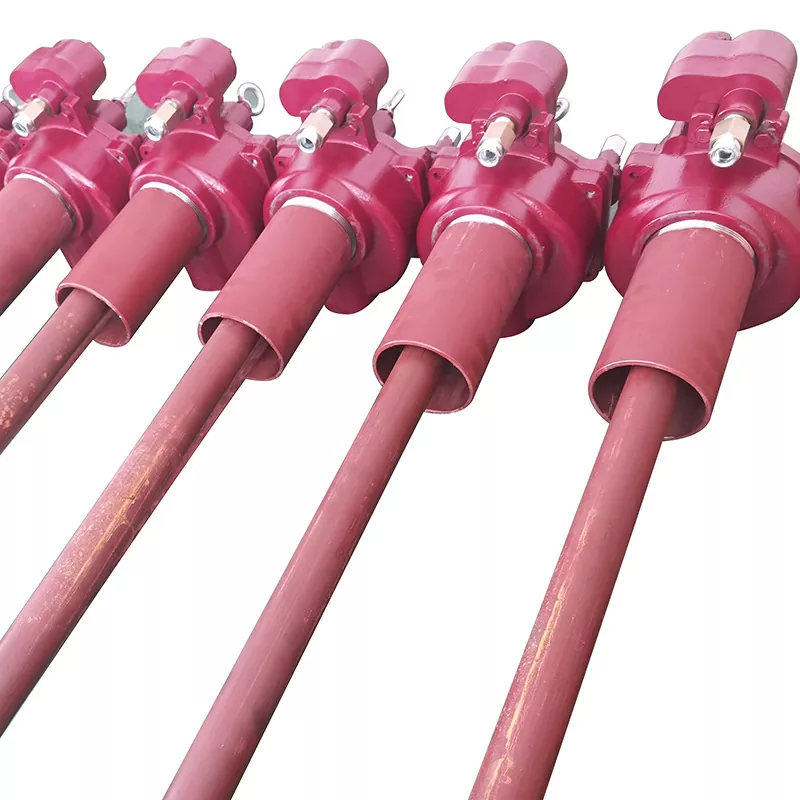

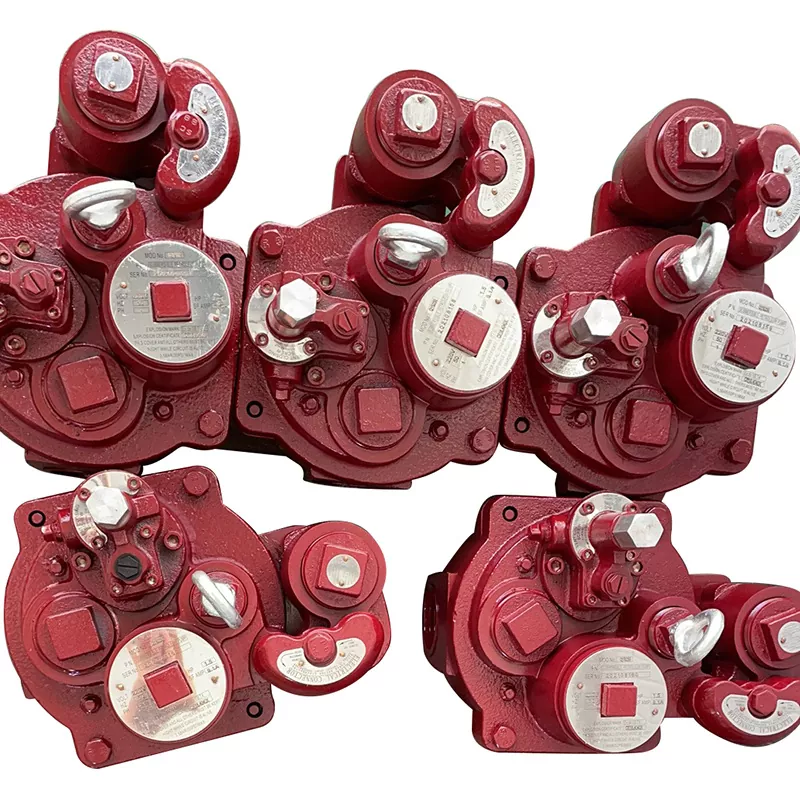

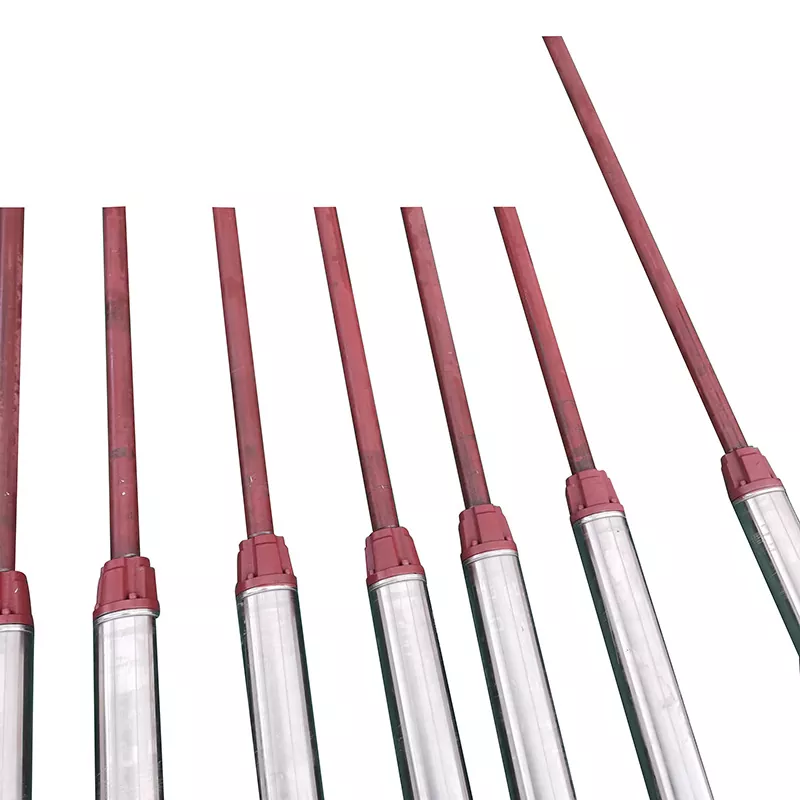

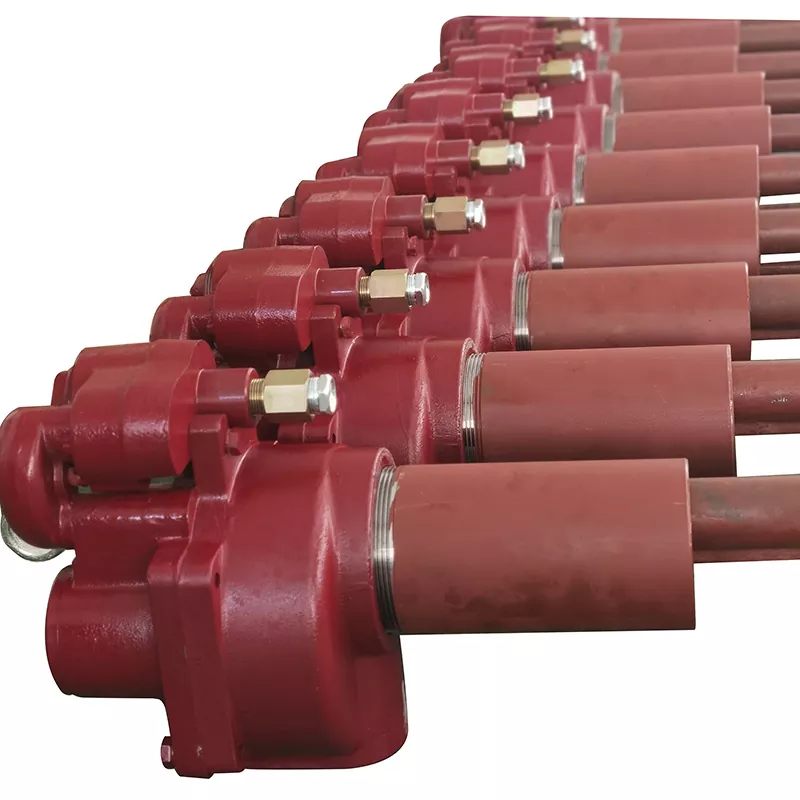

Production Details
