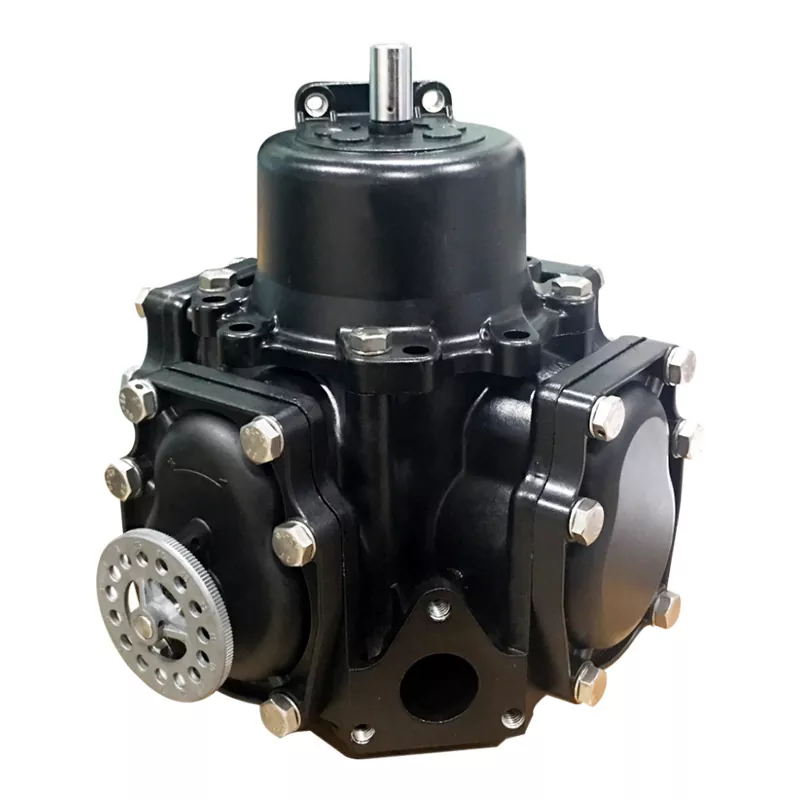

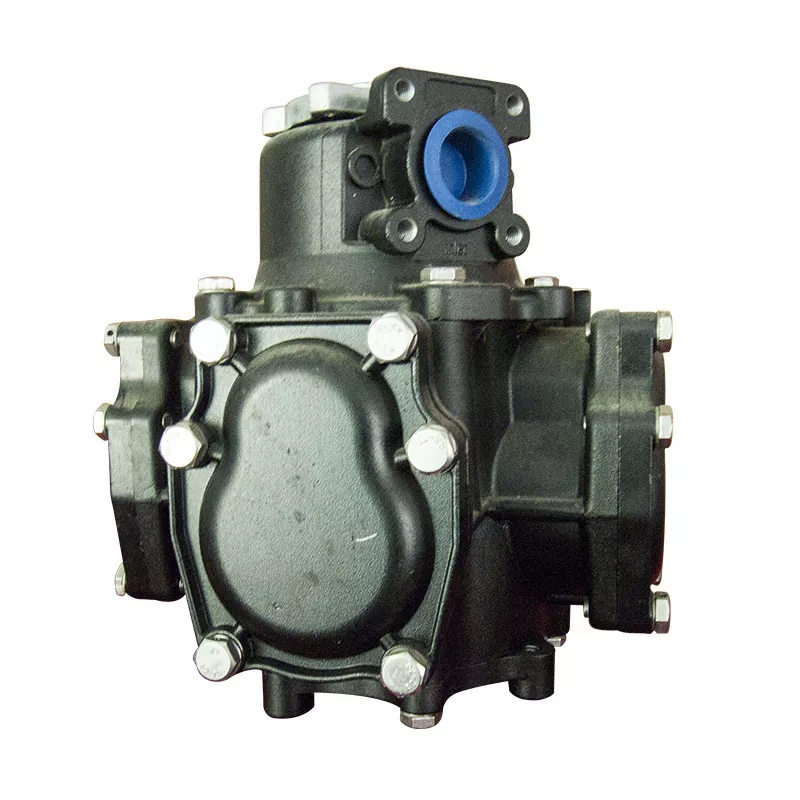

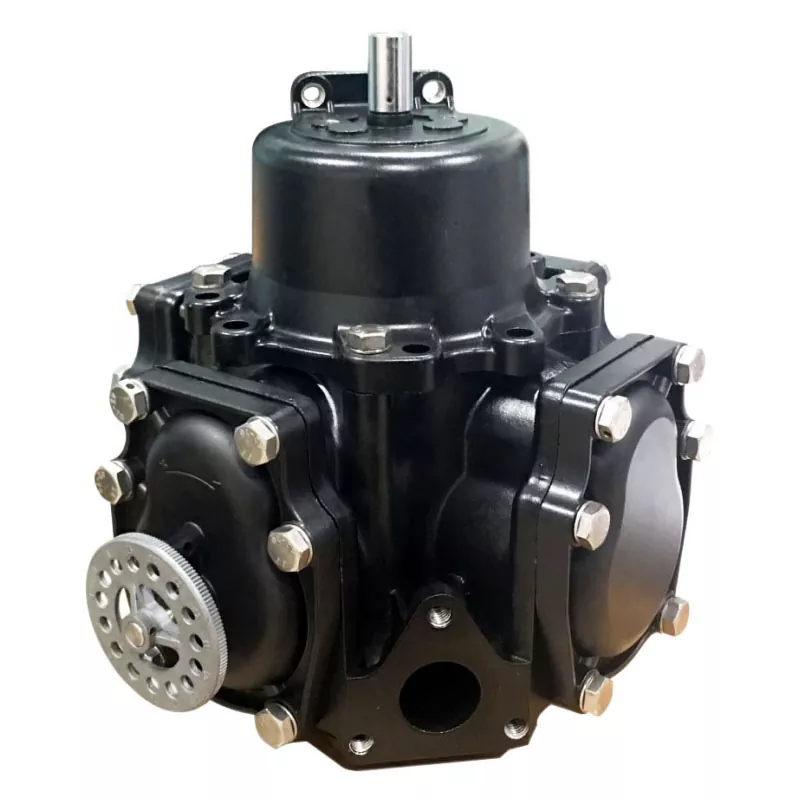

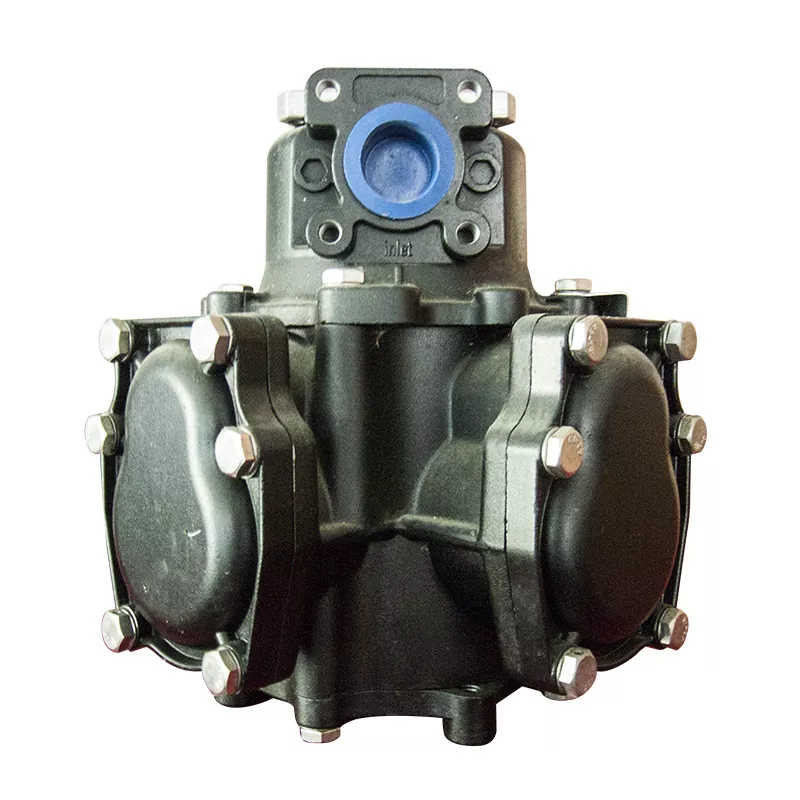

The FM5B urea flow meter for AdBlue dispenser is a supporting component for AdBlue dispensers. It consists of a flow meter body, top cover, crankshaft, connecting rods, pistons, distribution valve, distribution valve seat, and adjustment device. The flow meter features four symmetrically arranged pistons, discharging exactly 0.5 liters per complete cycle.The combined pump delivers the medium into the flow meter. The pressure difference between the inlet and outlet drives the pistons, which drive the connecting rods and crankshaft, and then the distribution valve. Through the valve's switching action, the pistons perform reciprocating motion for continuous metering.Key components such as the crankshaft and connecting rods are made of 304 stainless steel; the cup seal is made of FD-3 modified PTFE; seals are made of nitrile rubber. All materials comply with applicable standards for wear and corrosion resistance..
|
Discharge of per revolution : |
0.5L |
|
Accuracy : |
±0.2% |
|
Repeatable Tolerance : |
≤0.07% |
|
Adjustable Min.Volume : |
0.05% |
|
Max flow : |
80L/min |
|
Min flow : |
5L/min |
|
Working Pressure : |
≤0.3Mpa |
Novel appearance,compact structure,four cylinder soft piston,high precision.
Long life:8 million liters of life.
The shell has two kinds of aluminum alloy coating and 304 stainless steel for users to choose. Internal parts are all 304 strainless steel,wear resistance,acid and alkali.
All the cover-current parts have been strictly tested and are in accordance with the provisions of ISO22241 on vehicle urea.
It is ideal choice for all kinds of vehicle urea filling machines.
The FM5B urea flow meter for AdBlue dispenser is suitable for metering AdBlue solution in dispensing applications, designed to be used as a supporting component for AdBlue dispensers.
