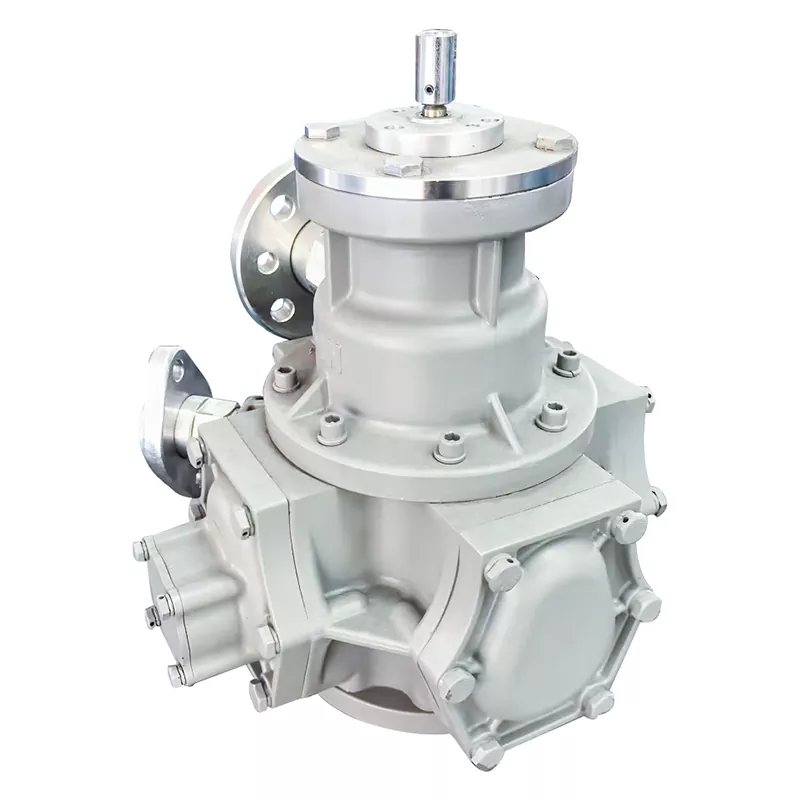

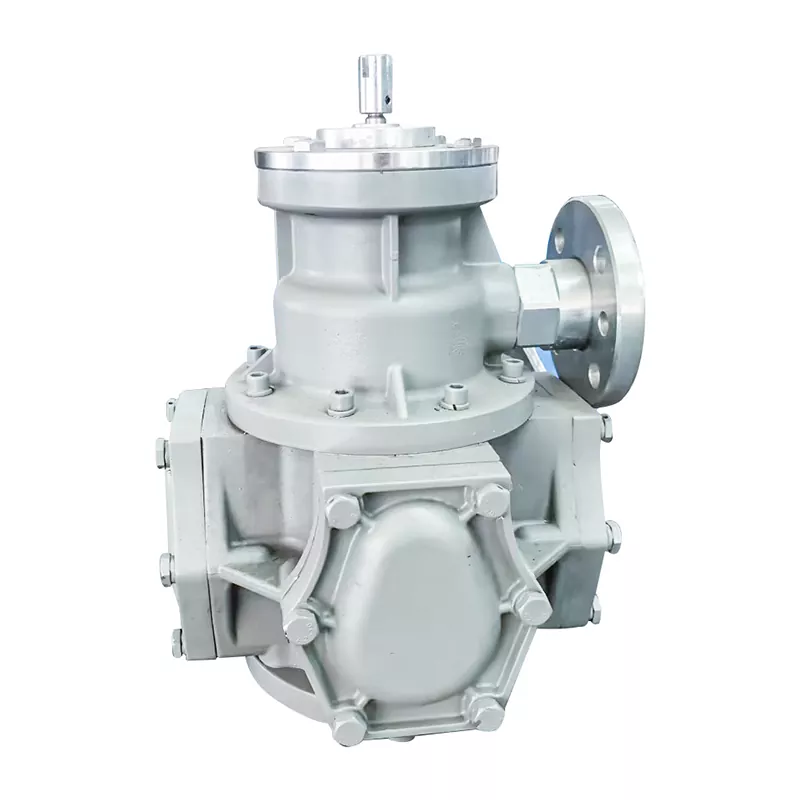

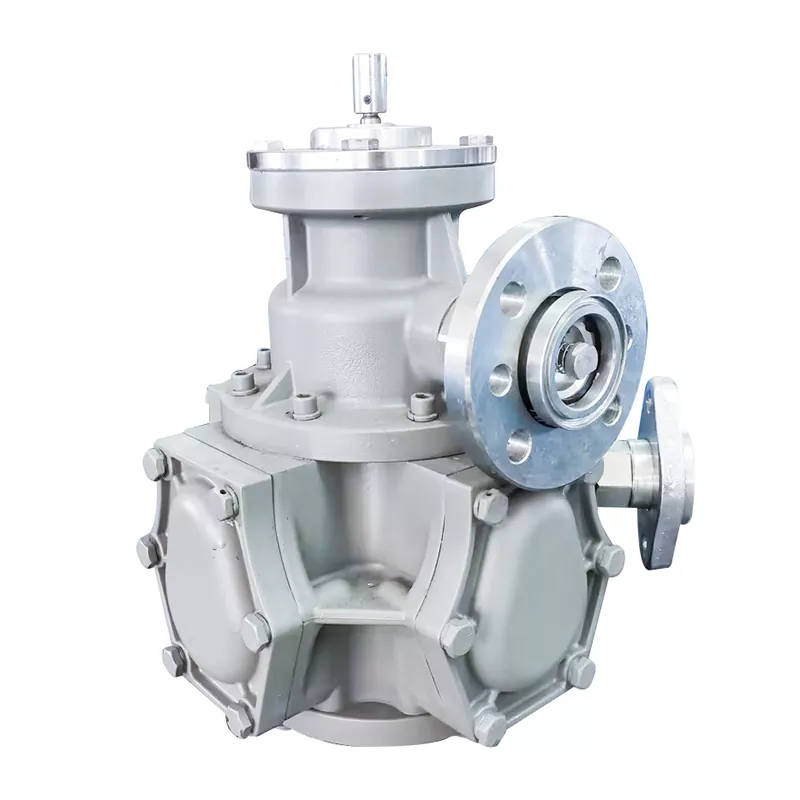

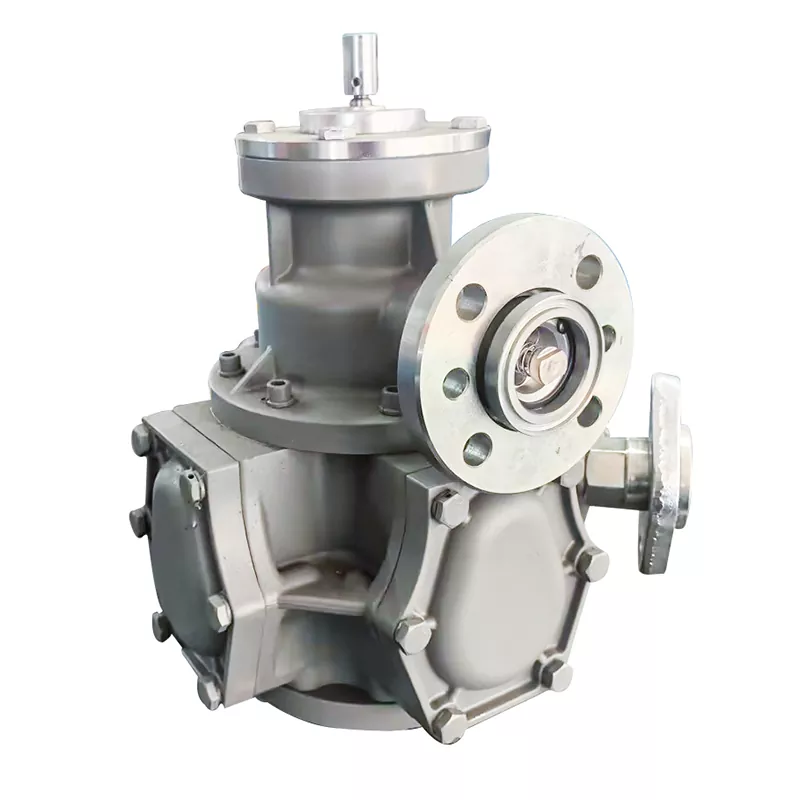

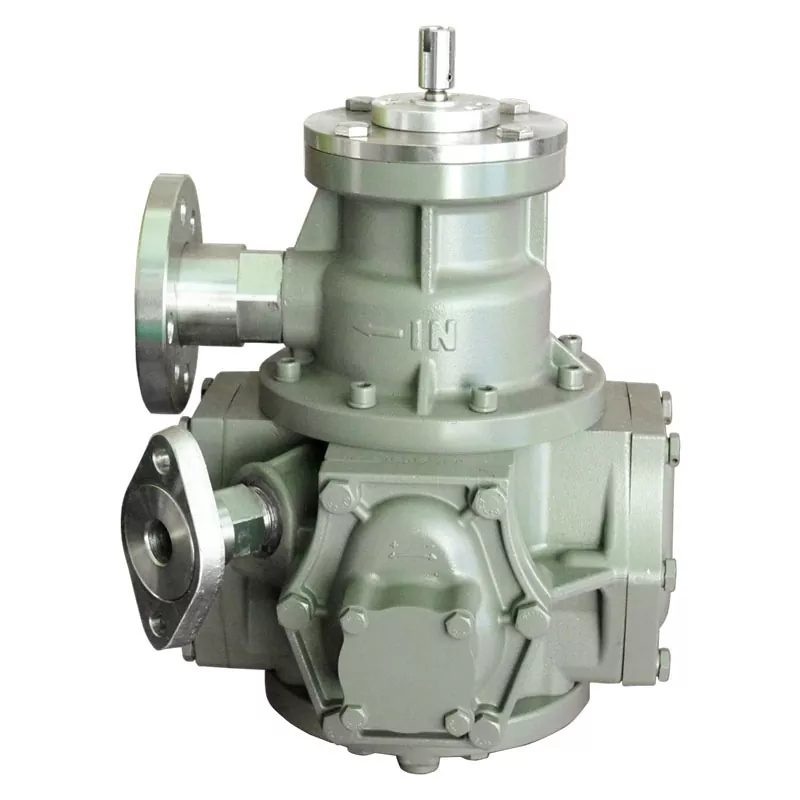

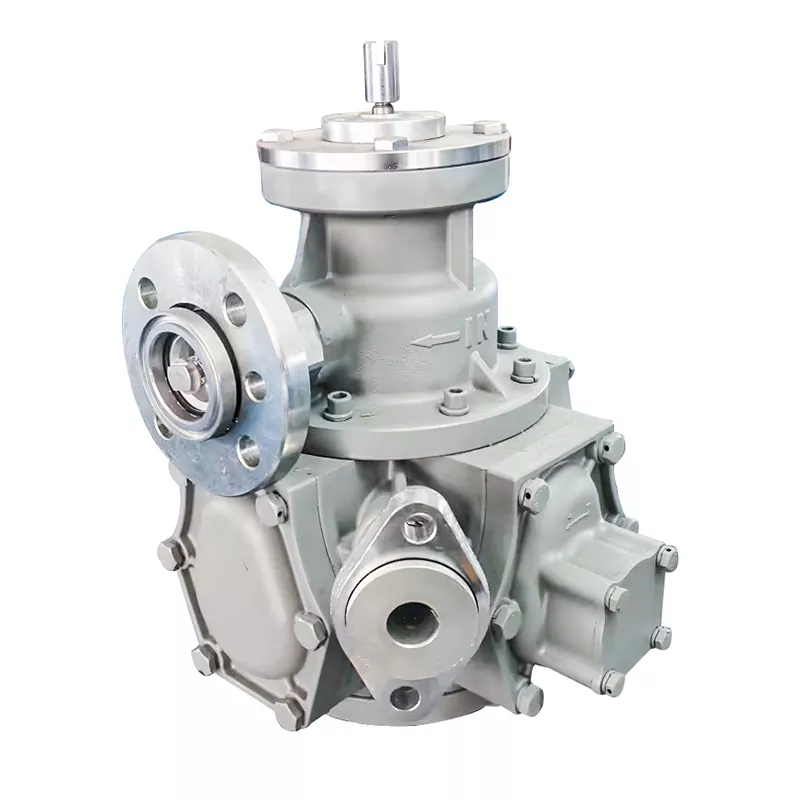

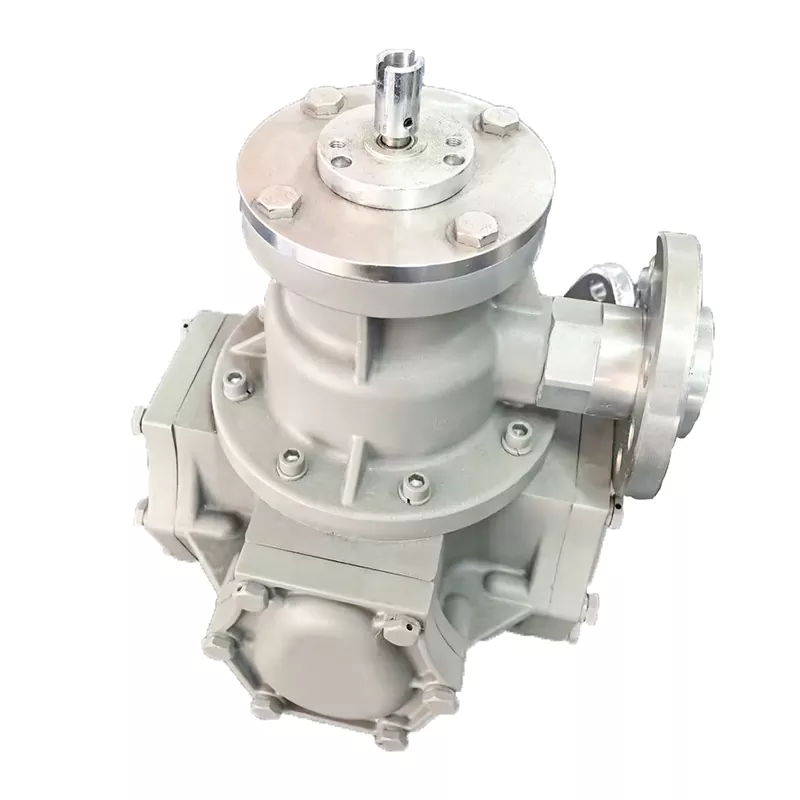

Aluminum alloy flowmeters have a lower density,Aluminum alloy LPG flowmeter for LPG dispenser are lighter than cast iron flowmeters. This lightweighting helps reduce the overall weight of the LPG dispenser. Aluminum alloy liquefied gas flow meters are lightweight, cost-effective, and have good heat dissipation performance, which helps to reduce the operating temperature of the equipment and extend its service life. In addition, aluminum alloy LPG flow meters also excel in corrosion resistance and strength, and are suitable for measuring a variety of media, with high measurement accuracy and low pressure loss.
|
Model |
LPGPFM2 |
|
Measuring range |
5-50L/min |
|
Discharge rate per revolution |
0.5L |
|
Adjustable Min.Volume |
0.1% |
|
Accuracy |
≤±0.2% |
|
Repeatable tolerance |
≤0.07% |
1.Low minimum flow value and wide flow range, suitable for measuring different flow ranges.
2.No on-site debugging is required, and it can be used without further debugging after installation.
Simple structure, easy installation, easy installation and maintenance.
Wear-resistant, dirt-resistant, long service life.
1. It is widely used to measure and control the flow of LPG, such as measuring the flow of LPG during collection, transportation and storage.
2. Aluminum alloy LPG flowmeter for LPG dispenser have high corrosion resistance and strength, with good wear resistance.
3. Suitable for harsh environments with explosion hazards
