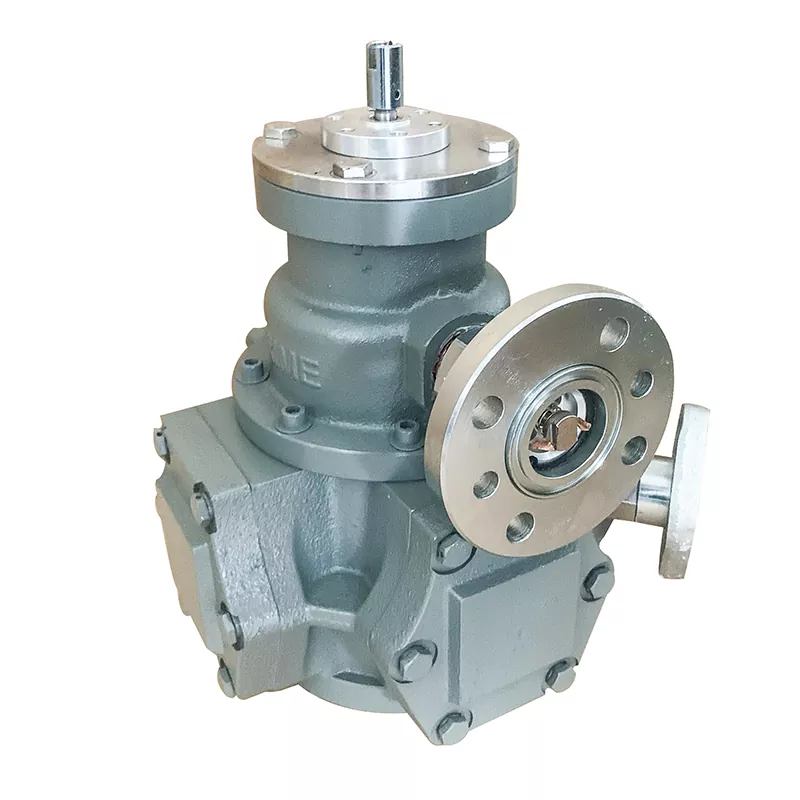

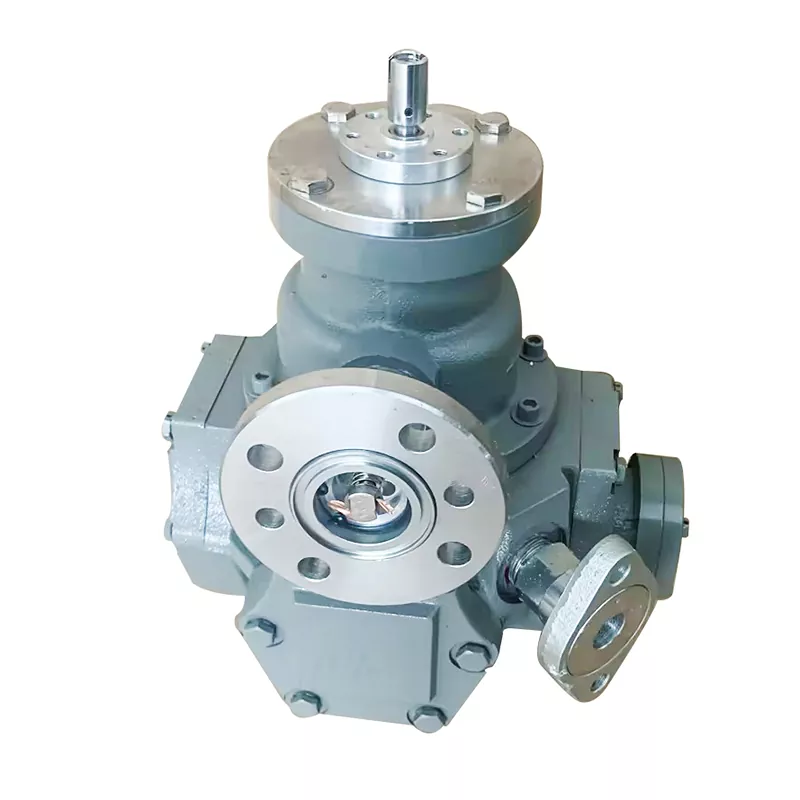

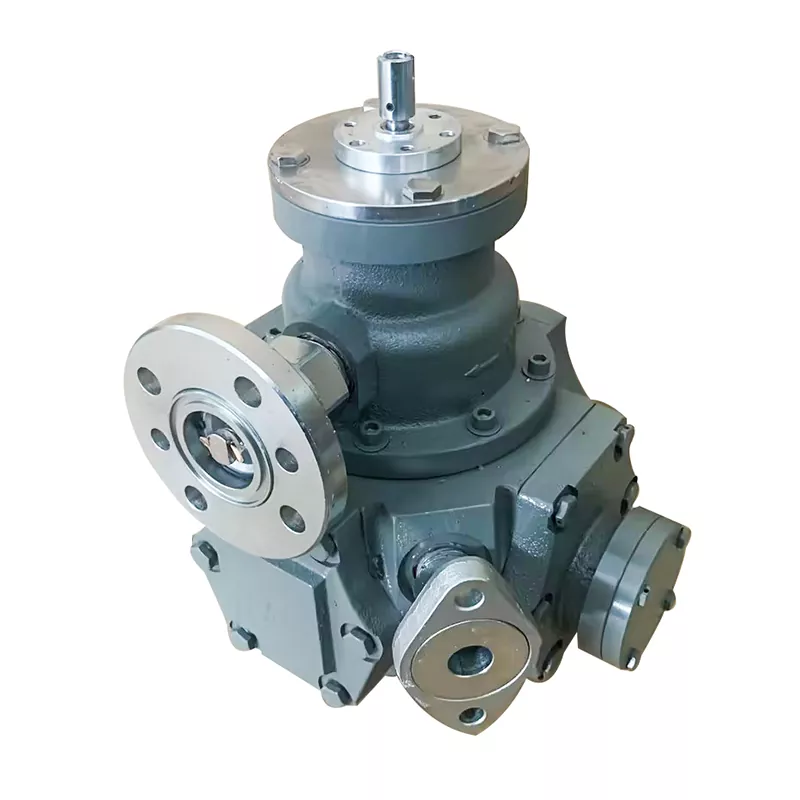

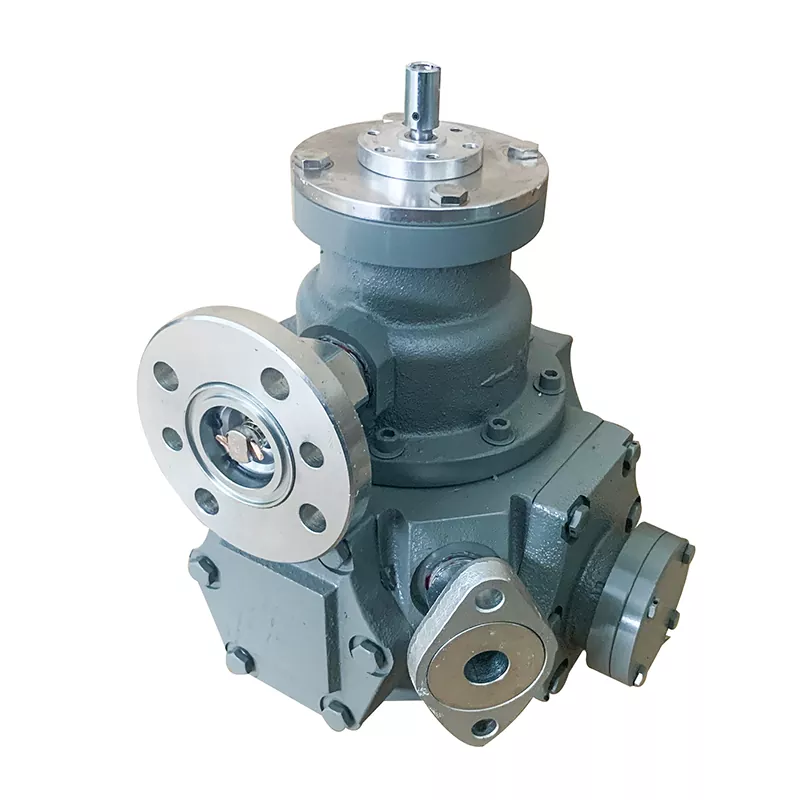

Cast iron LPG Flowmeter for LPG dispenser is an internal part of LPG dispenser. It consists of four symmetrical pistons that discharge 0.5 liters of LPG per rotation. Built-in check valve, high measurement accuracy and long service life. Compact structure, high strength, suitable for LPG filling service. The main function of LPG flowmeter is to measure the volume flow and total amount of LPG in a closed pipeline. Cast iron LPG Flowmeter for LPG dispenser suitable for explosion hazardous environments and widely used in gas stations.Available in two materials, cast iron and aluminum alloy.
|
Model |
LPGPFM1 |
|
Measuring range |
5-50L/min |
|
Discharge rate per revolution |
0.5L |
|
Adjustable Min.Volume |
0.1% |
|
Accuracy |
≤±0.2% |
|
Repeatable tolerance |
≤0.07% |
1. Cast iron LPG Flowmeter for LPG dispenser able to accurately measure the volume flow and total amount of liquefied petroleum gas flowing through the LPG dispenser to ensure normal supply and safe use.
2.Cast iron liquefied gas flowmeter has high corrosion resistance and strength,more reliable in applications with extreme pressure and corrosive media.Not affected by temperature and pressure changes, the measurement is stable and reliable.
3.Designed with no moving parts, no mechanical maintenance required, long service life
1. It is widely used to measure and control the flow of LPG, such as measuring the flow of LPG during collection, transportation and storage.
2. High corrosion resistance and strength, with good wear resistance.
3. Suitable for harsh environments with explosion hazards
