Flow Meter with Register

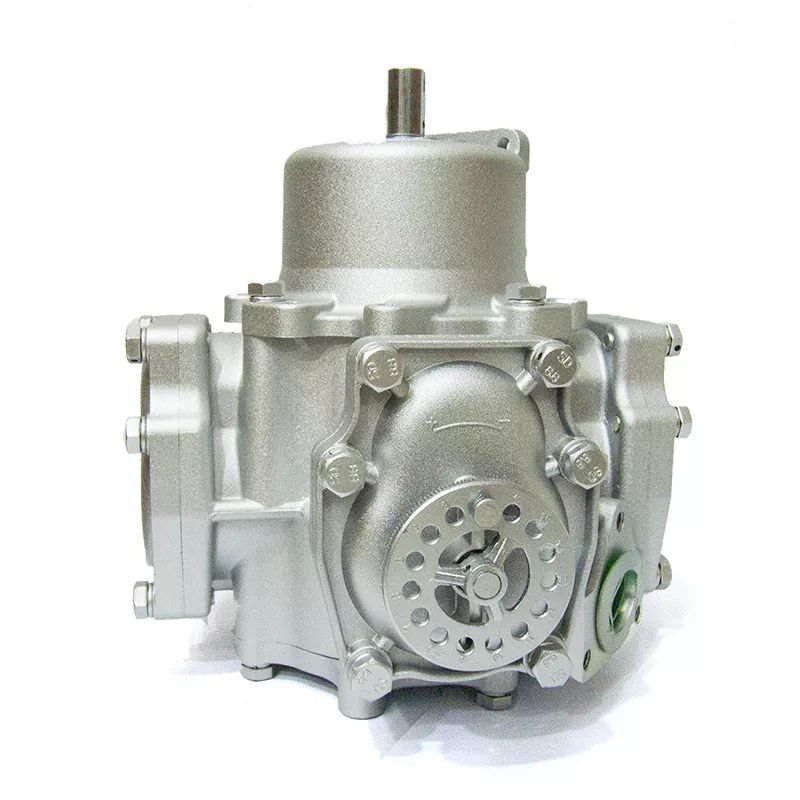

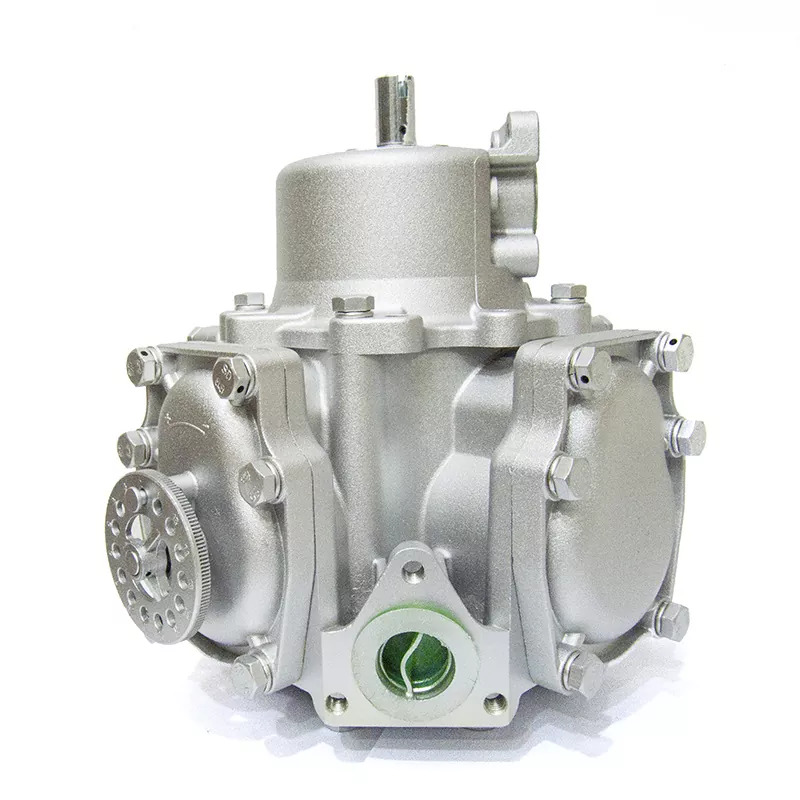

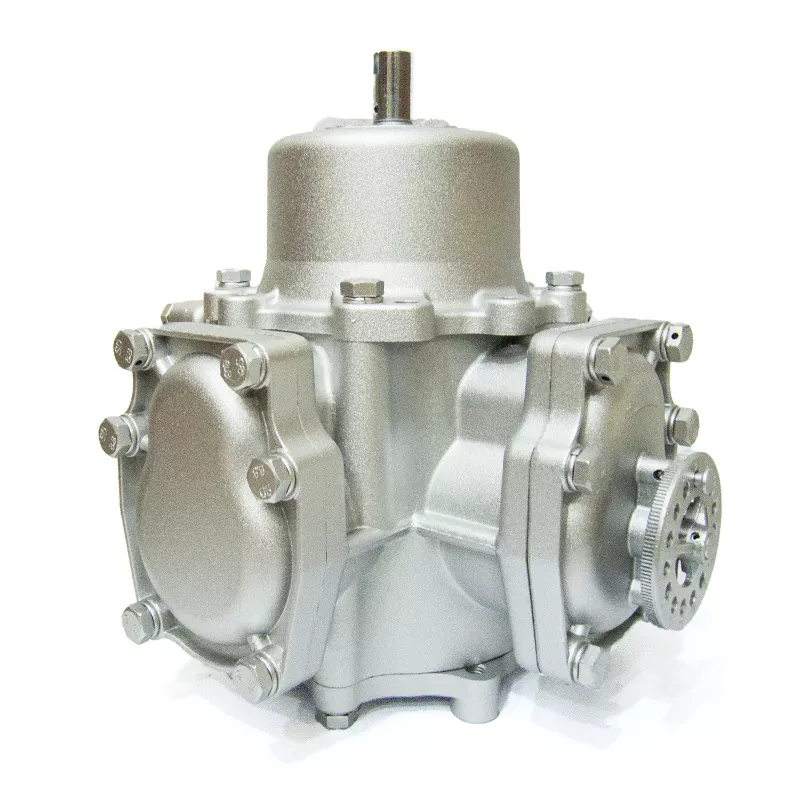

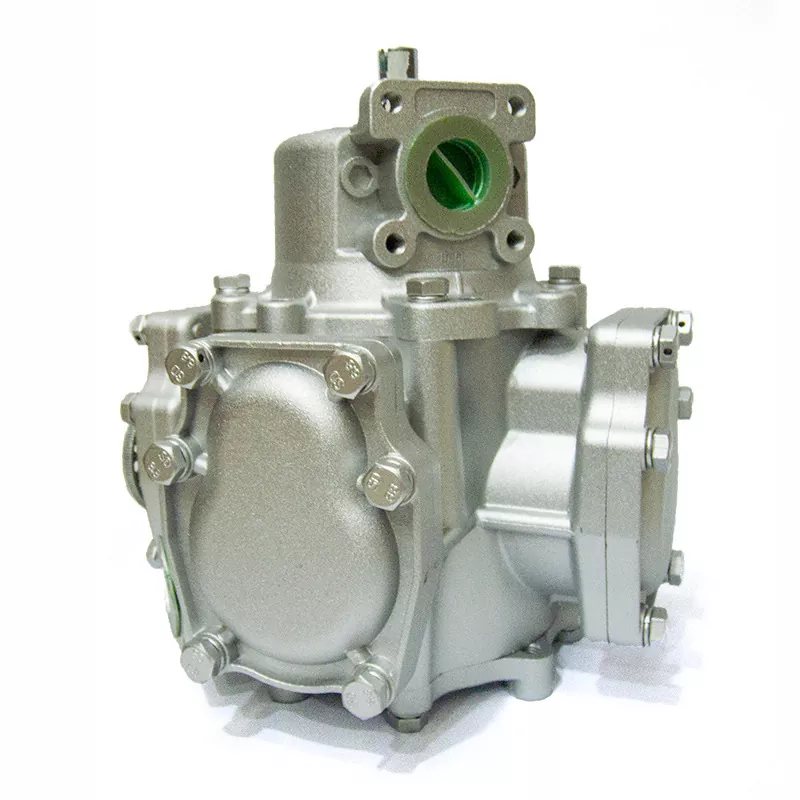

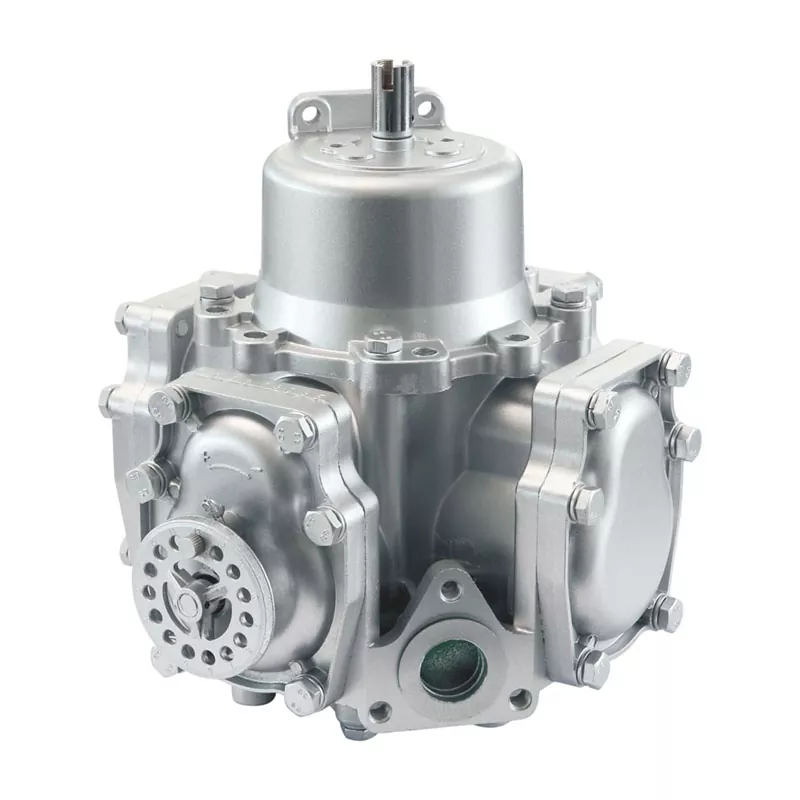

As a component of Flow Meter with Register,the FM4B flow meter is specifically designed as a supporting component for fuel dispensers. It consists of four symmetrically arranged pistons, discharging exactly 0.5 liters of oil per complete cycle. The accompanying MJ4 mechanical counter features an easy-to-read large-digit display, and its fully mechanical transmission makes the entire system compact, easy to operate, convenient to maintain, and safe and reliable. Structurally, the FM4B adopts connecting rod limiting technology, providing high metering accuracy, long service life, and a novel appearance. This product is suitable for refueling services involving kerosene, diesel, gasoline, and blended fuels.

Product Parameter (Specification of FM4B):

Feature

The Flow Meter with Register consists of FM4B and MJ4.The FM4B flow meter is composed of a transducer body, top cover, crankshaft, connecting rods, pistons, distribution valve, distribution valve seat, and adjustment device. The materials selected for the design all comply with applicable standards.

The MJ4 features a highly visible large-digit display that significantly enhances readability, while the use of new materials ensures optimal reliability during high-speed counting. It is equipped with a clockwise zero reset handwheel, an 8‑digit non‑resettable total accumulator, and a 5‑digit integer plus 1‑decimal-digit single count display with a maximum single reading of 99,999.9. The single count can be manually reset to zero by turning the zero reset handwheel. Some parts are made of engineering plastics to extend the service life. The measurement unit (liter/gallon) can be changed by simply replacing a gear, making it suitable for metering display of industrial flow meters in various fields. One rotation of the drive shaft displays a metered volume of 5.44 liters.

Application

For refueling services involving kerosene, diesel, gasoline, and blended fuels, as well as various industrial flow metering applications.
