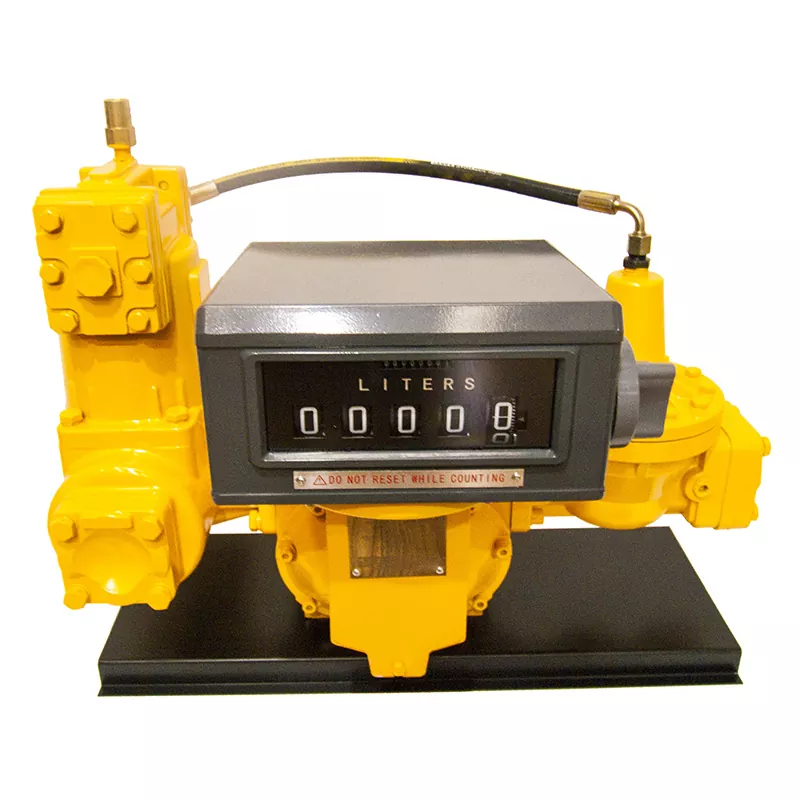

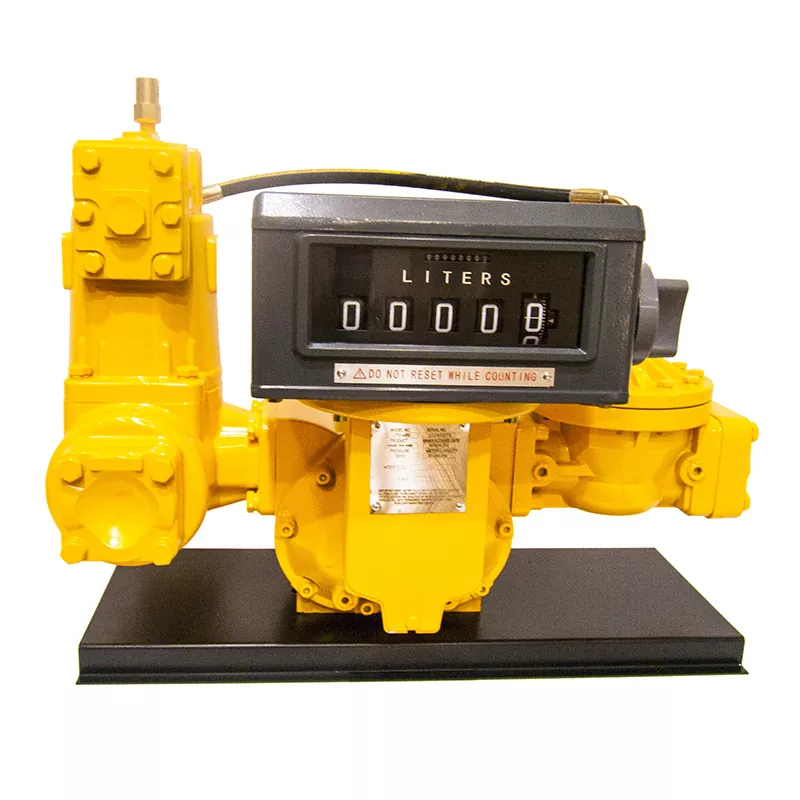

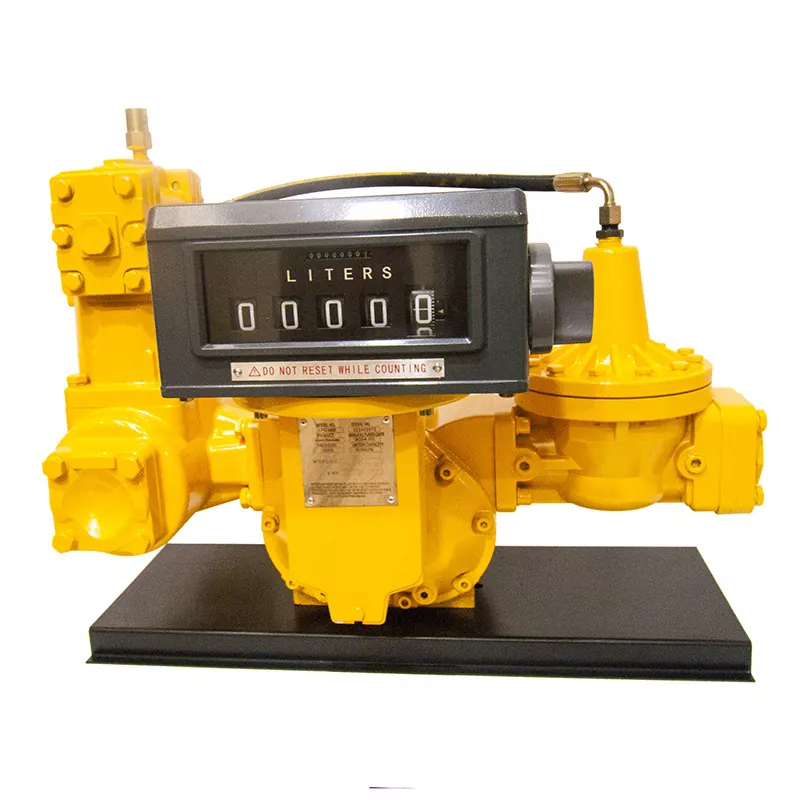

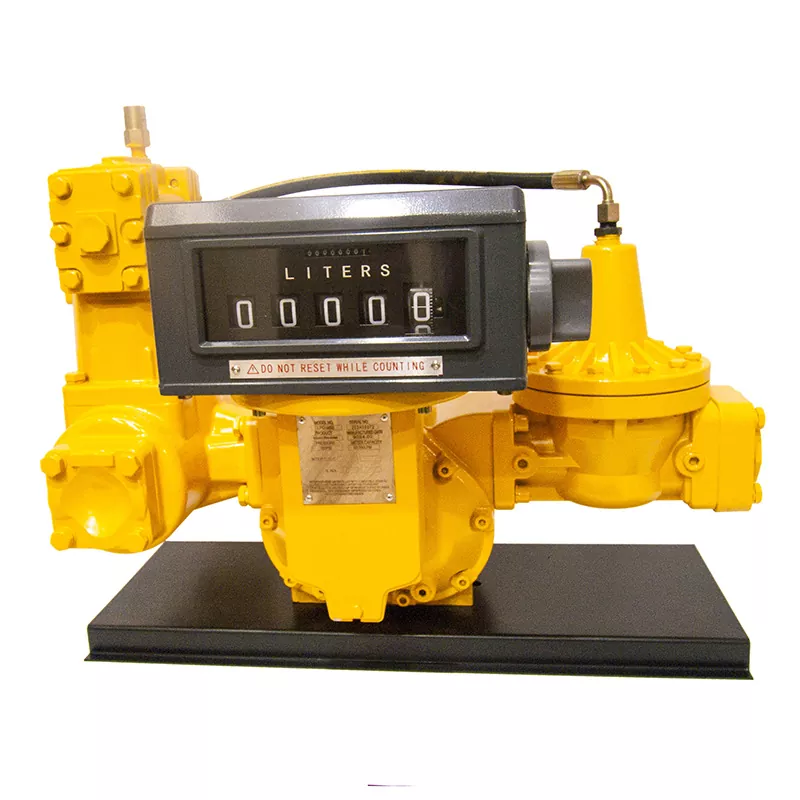

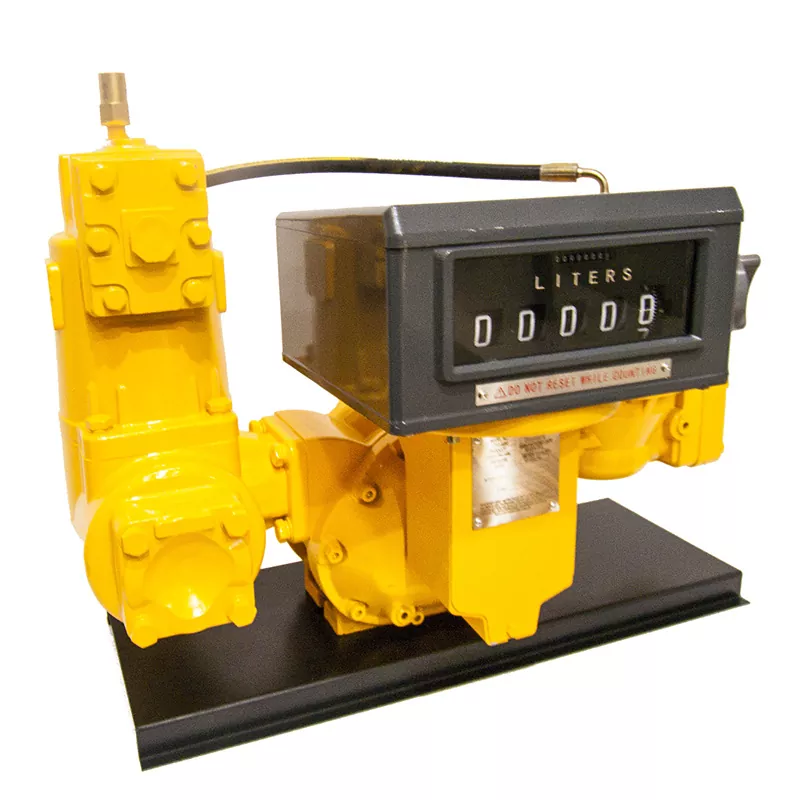

The LPG PD Flow Meter is designed for reliable and efficient liquefied petroleum gas (LPG) metering.Manufactured by Wenzhou Supertech Machine Co., Ltd,it features a single fluid chamber with a blocking rotor and two displacement rotors rotating in synchronization, converting linear flow into rotary motion with minimal pressure drop. The meter is built with high-performance materials for long life and low maintenance, with the housing and rotors made of anodized aluminum, bearing plates of 403, bearings of PEEK 450CA30, gears of 45, and seals of nitrile rubber. The minimum order quantity is 1 piece. After confirming your requirements, please send us your full address so that you may choose the shipping method, and we will provide a complete service including all freight costs.
|
Diameter: |
50mm 2” |
|
Flow rate: |
50~380L/min |
|
Accuracy: |
±0.2% |
|
Repeatable Tolerance: |
≤0.1% |
|
Max.Working Pressure: |
350psi(24bar) |
The above parameters are test results under standard operating conditions. The LPG PD flow meter maintains high accuracy and high repeatability across its entire flow range, while offering extremely low pressure drop. It is especially suitable for LPG loading/unloading and transfer applications where metering stability is critical.
The LPG PD Flow Meter features an excellent stepless fine-tuning device (wear compensation device) for positive and negative calibration, high accuracy and high repeatability over a wide flow range, ultra-high precision under constant flow conditions, low maintenance, low wear, long service life, and minimal pressure drop as a true gravity flow meter. Its metering accuracy is unaffected by changes in temperature, pressure, or viscosity, and the built-in differential pressure valve ensures that LPG remains in liquid state to guarantee precise measurement.
Q1: What is your minimum order quantity?
A1: 1 unit, and sample orders are supported.
Q2: How is shipping arranged after purchase?
A2: You may choose the shipping method, and we will provide a complete service including all freight costs.
Q3: What are the main applications ofLPG PD FlowMeter?
A3: It is suitable for tank metering, tanker truck loading/unloading, and pipeline transfer of LPG, aviation fuels, and petroleum products.
Q4: Is the installation and maintenance of the flow meter complicated?
A4: No, it is not complicated. The structure is simple. Routine maintenance only requires checking the sealing surfaces and cleaning the filter screen. We provide complete technical support.
Q5: What can the buyer do if metering inaccuracy occurs?
A5: First, check whether the calibration is correct and whether the gears are normal. If the issue is not resolved, please contact us for technical support.
