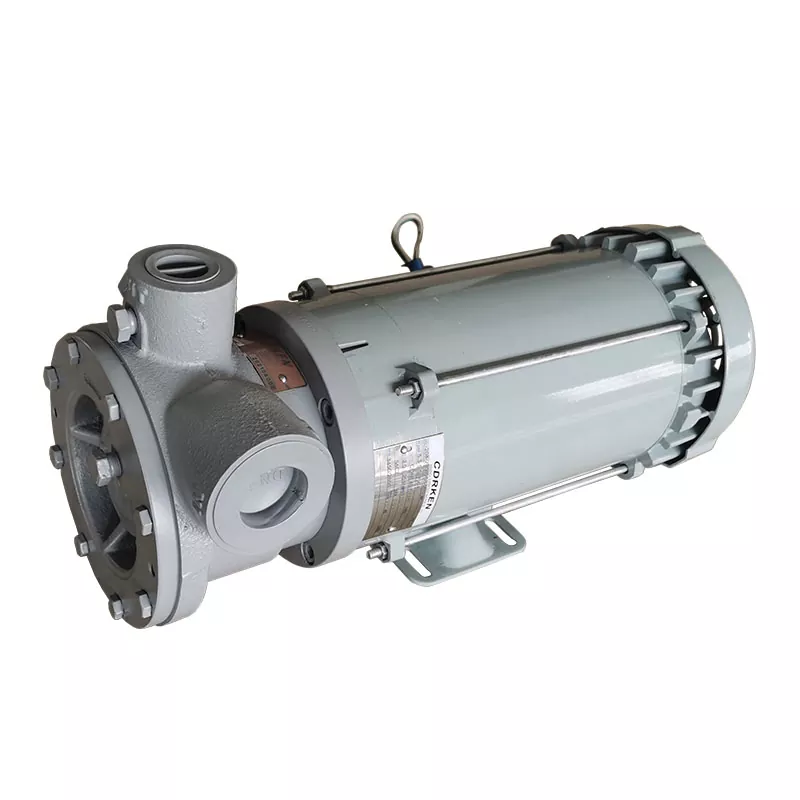

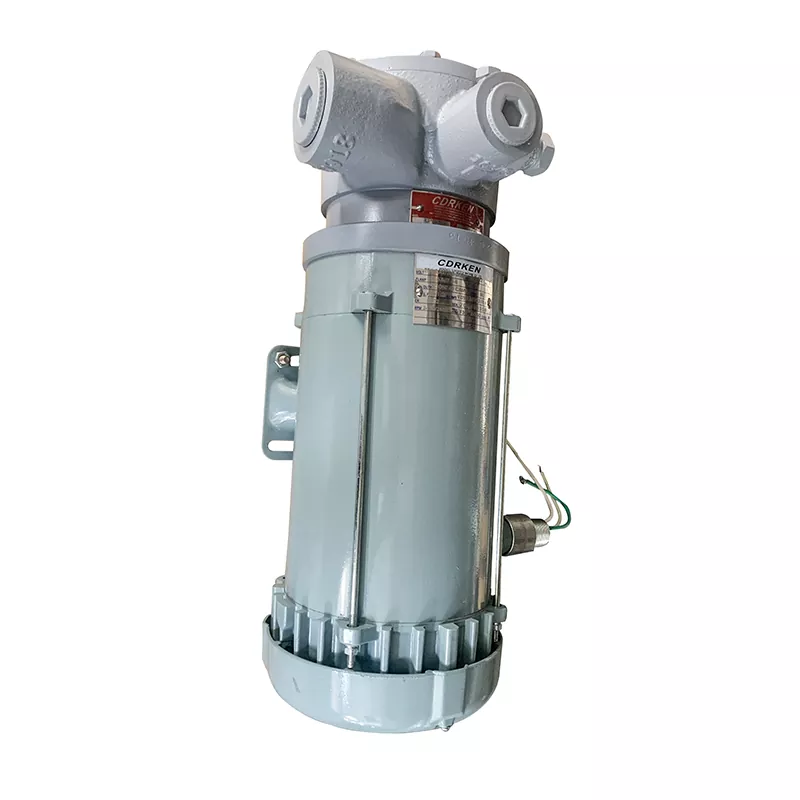

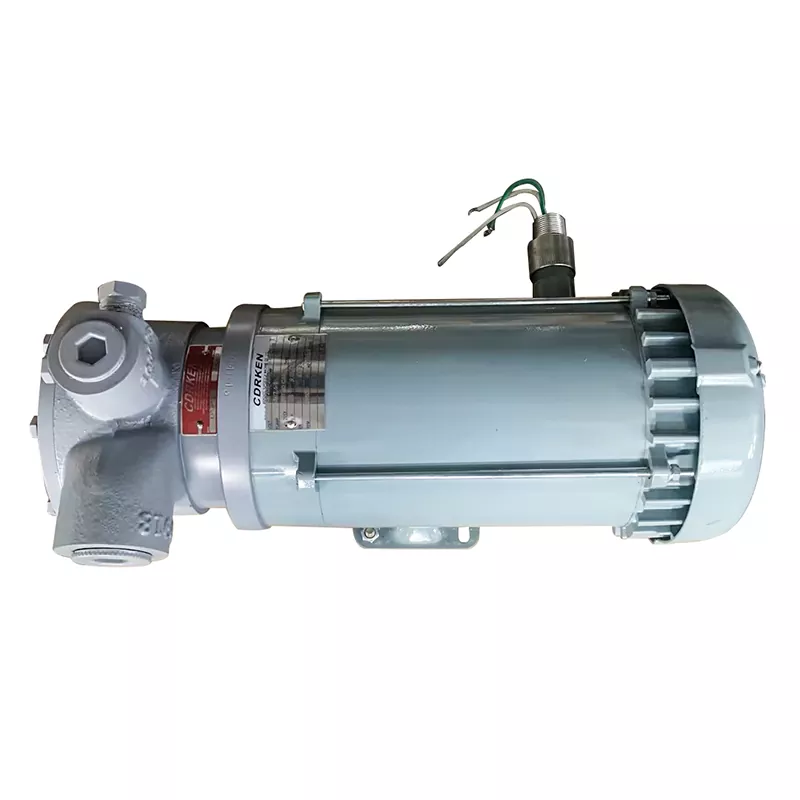

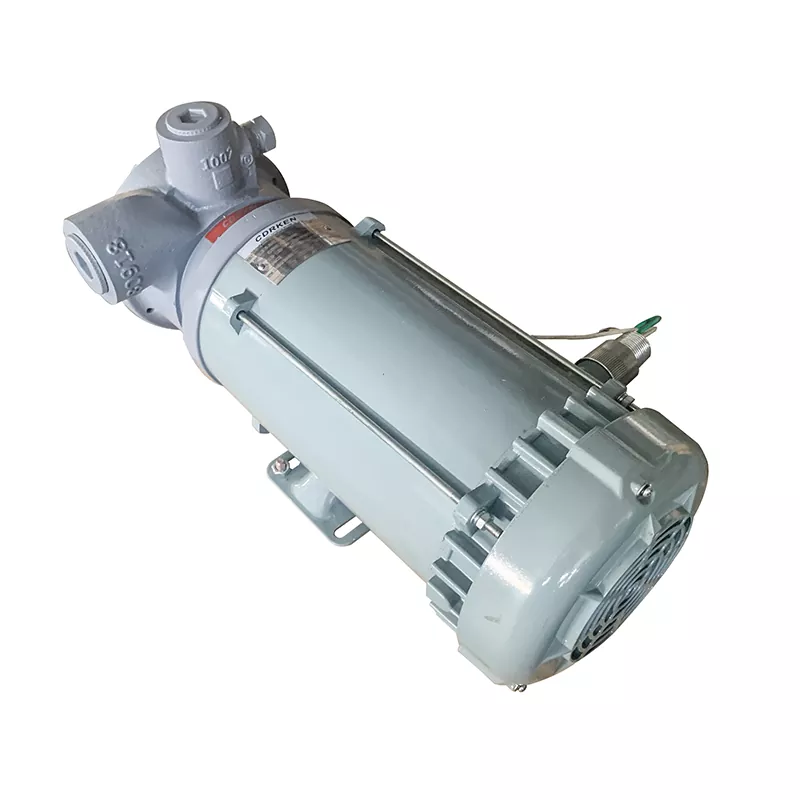

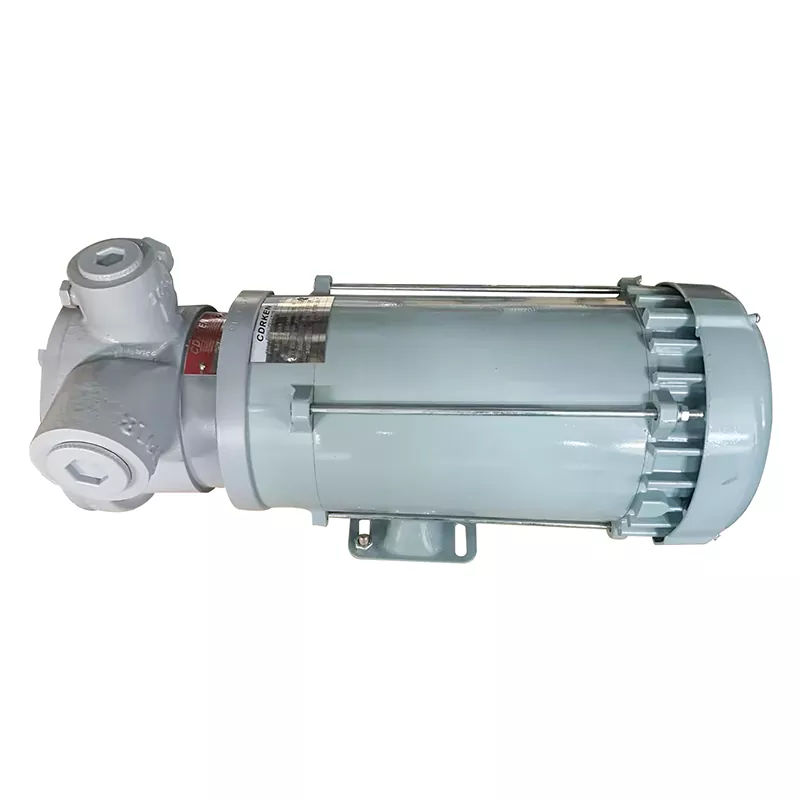

The lpg transfer pump is a high-performance liquefied gas transportation equipment. It adopts a cantilevered impeller design and features low noise and long service life. The pump has a simple structure, is easy to operate and maintain, and is suitable for various application scenarios.
|
Model |
LPGP-60 |
|
Inlet |
1-1/4”NPT |
|
Outlet |
1”NPT |
|
Working voltage |
220V |
|
Motor speed |
50Hz 2850rpm/60Hz 3450rmp |
|
Motor power |
1.5HP |
|
Max.working pressure |
25bar(2.5MPa) |
|
Max. Differental pressure |
7bar(0.7MPa) |
|
Flow rate |
12gpm 45L/min |
|
Temperature range |
-32℃~107℃ |
Simple structure: The design is simple, easy to operate and maintain.
Low noise: The cantilevered impeller design results in low noise during operation.
Long lifespan: Superior materials and advanced techniques ensure the long service life of the pump.
Broad applicability: Suitable for various applications such as automotive liquefied gas, large liquefied gas tanks to small tanks, liquefied gas filling of gas cylinders, and agricultural ammonia use, etc.
1、Automobile liquefied gas: Provides liquefied gas as fuel for automobiles.
2、Liquefied gas large tank to small tank: This is used to transfer liquefied gas from the large tank to the small tank.
3、Liquefied gas cylinder filling: Used for filling liquefied gas cylinders.
4、Agricultural ammonia: Suitable for the transportation and usage of ammonia in the agricultural sector.
