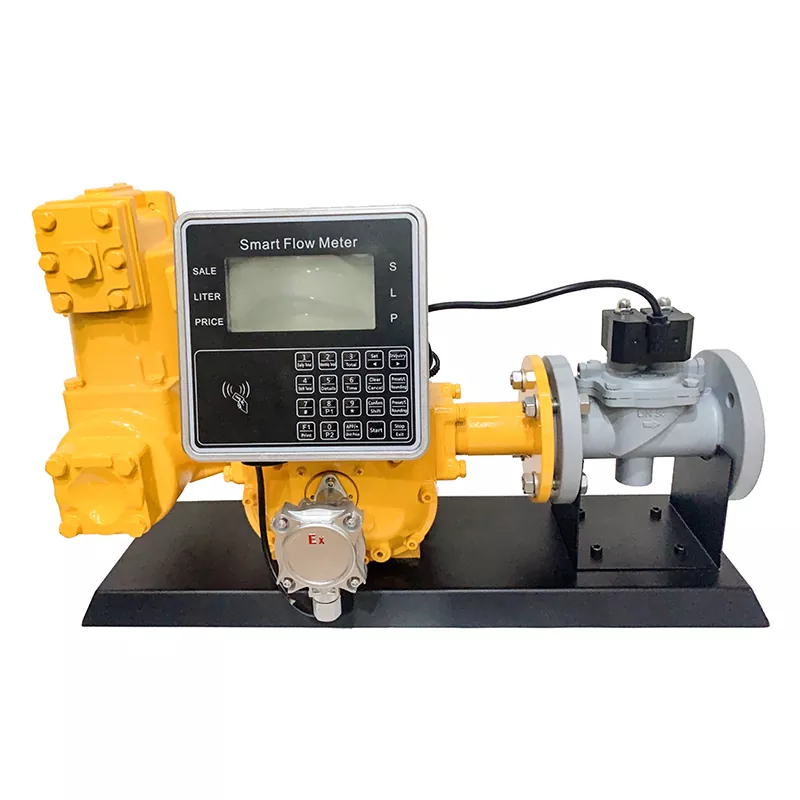

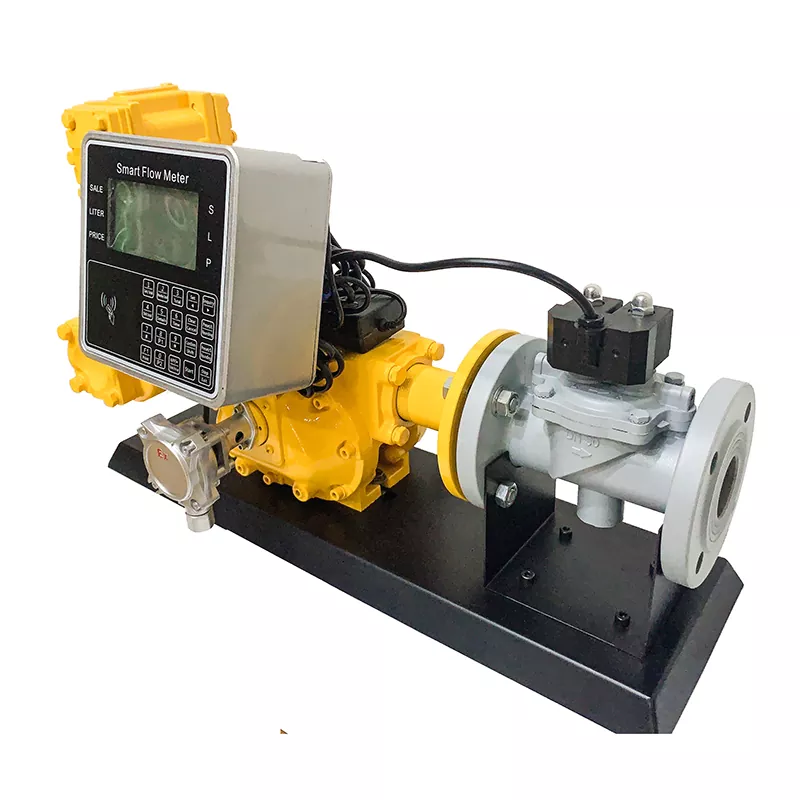

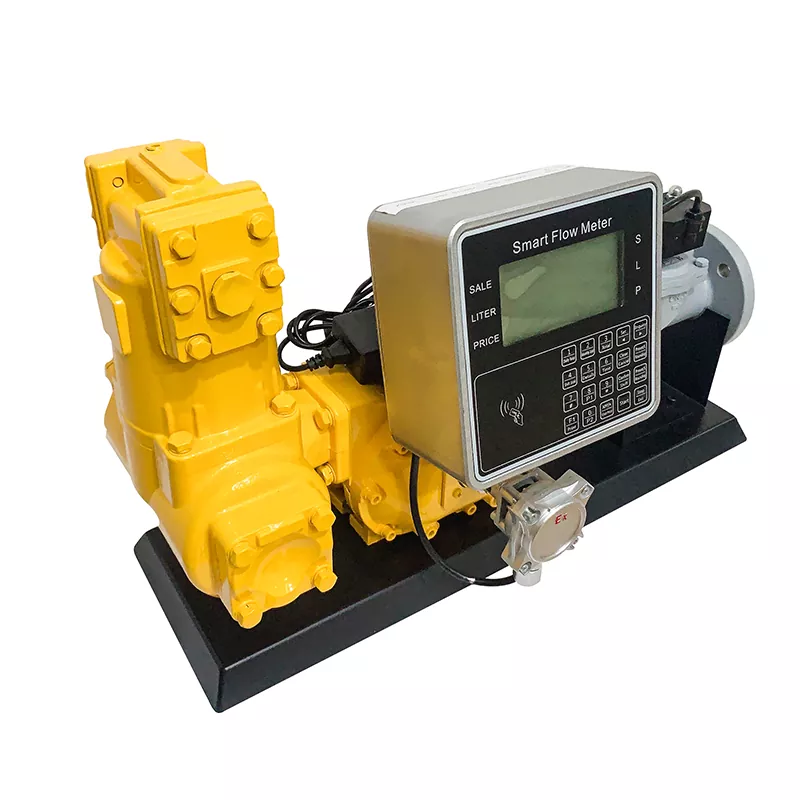

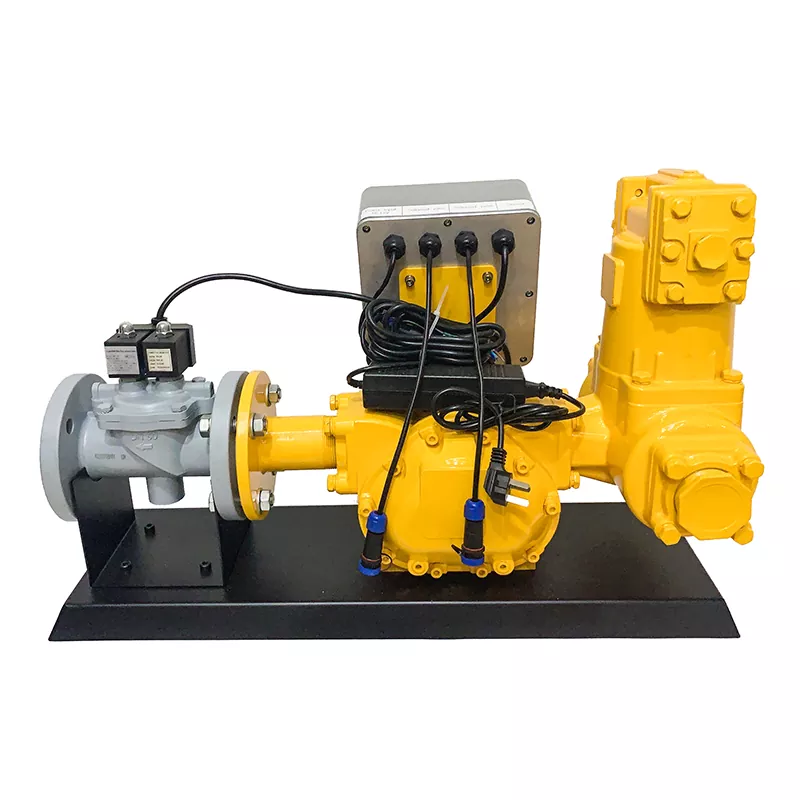

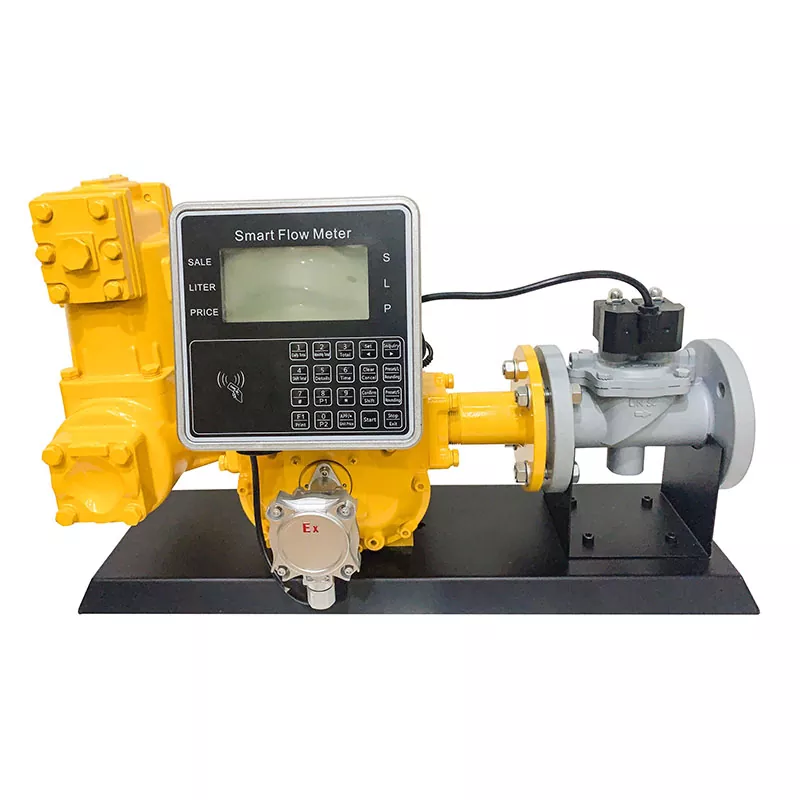

The Digital PD Flow meter is a positive displacement flow meter manufactured by Wenzhou Supertech Machinery Co., Ltd. (Supertech). Its main body is made of high-strength cast iron or optional stainless steel, with a nominal diameter of 50 mm (2 inches). The core feature of this instrument is its excellent stepless fine-tuning wear compensation device, which achieves high accuracy of ≤±0.2% and repeatability error of ≤0.10% at high flow rates (typical measuring range of 55 to 550 liters per minute), while maintaining measurement accuracy unaffected by changes in fluid temperature, pressure, and viscosity. Suitable for batch control and custody transfer of industrial oils (such as diesel), this flow meter, with its low pressure loss and long service life, becomes a reliable device for precise fluid measurement in gas stations and chemical applications.
|
Model: |
M50Q |
|
Diameter: |
50mm 2" |
|
Flow rate: |
50~380L/min |
|
Repeatable Tolerance: |
≤0.10% |
|
Accurancy: |
≤+0.2% |
|
Working Pressure: |
1.0Mpa/150PSI |
Q1: What are the measurement accuracy and repeatability of the M50-Q electronic pipeline flow meter?
A: This flow meter features high accuracy and high repeatability. The measurement accuracy can reach ≤±0.2%, with a repeatability error of ≤0.10%, enabling ultra-high precision metering under constant flow conditions.
Q2: Will changes in medium temperature, pressure, or viscosity affect the measurement accuracy?
A: No. The flow meter has extremely strong measurement stability, as its metering accuracy is unaffected by changes in fluid temperature, pressure, or viscosity, allowing it to adapt to various complex operating conditions.
Q3: Will the flow meter's accuracy decrease after long-term use? How can accuracy be maintained?
A: The flow meter is equipped with a stepless fine-tuning wear compensation device that allows for positive and negative calibration. Therefore, even after long-term use, it can effectively maintain its original metering accuracy.
Q4: Is the pressure loss of this flow meter significant? How is its service life?
A: This flow meter has low pressure loss and is considered a true gravity flow meter. Additionally, it features low maintenance and low wear characteristics, resulting in a long service life.
Q5: What material options are available for the M50-Q flow meter? Is it suitable for different media?
A: The flow meter offers a wide range of material options, including aluminum, cast iron, cast steel, and stainless steel, allowing it to meet the requirements of different media and application environments.
Q6: What is the flow measurement range of this flow meter?
A: The flow meter has a wide measurement range, with a flow rate range of 55 to 550 liters per minute, meeting various flow metering requirements.
