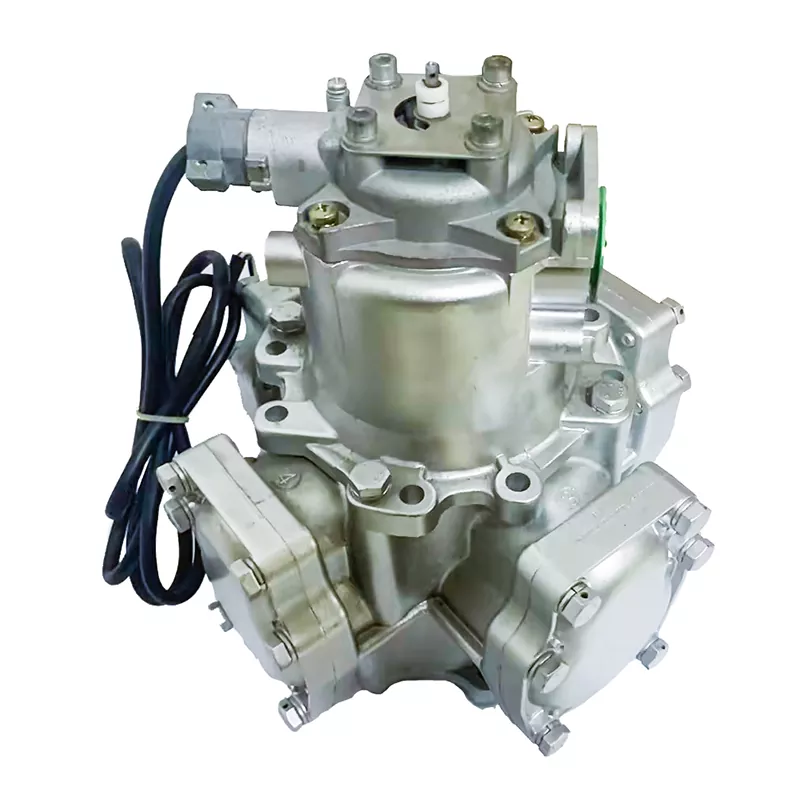

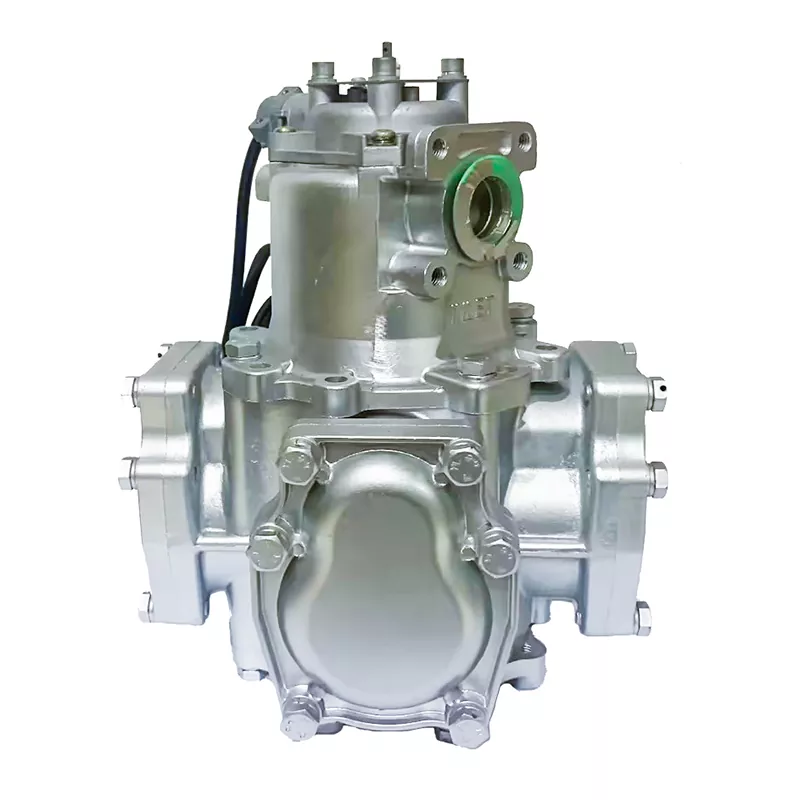

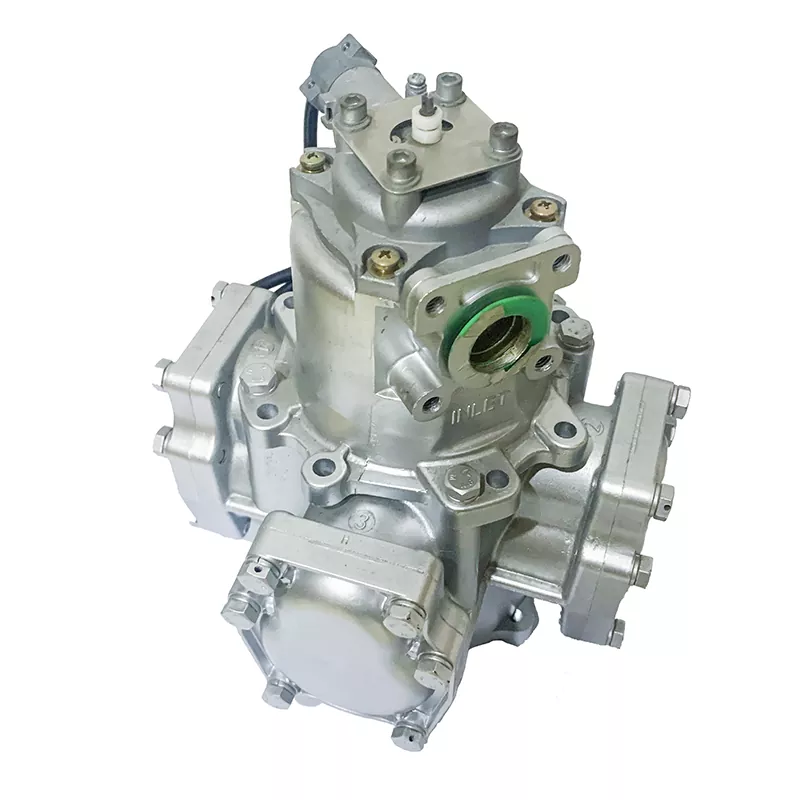

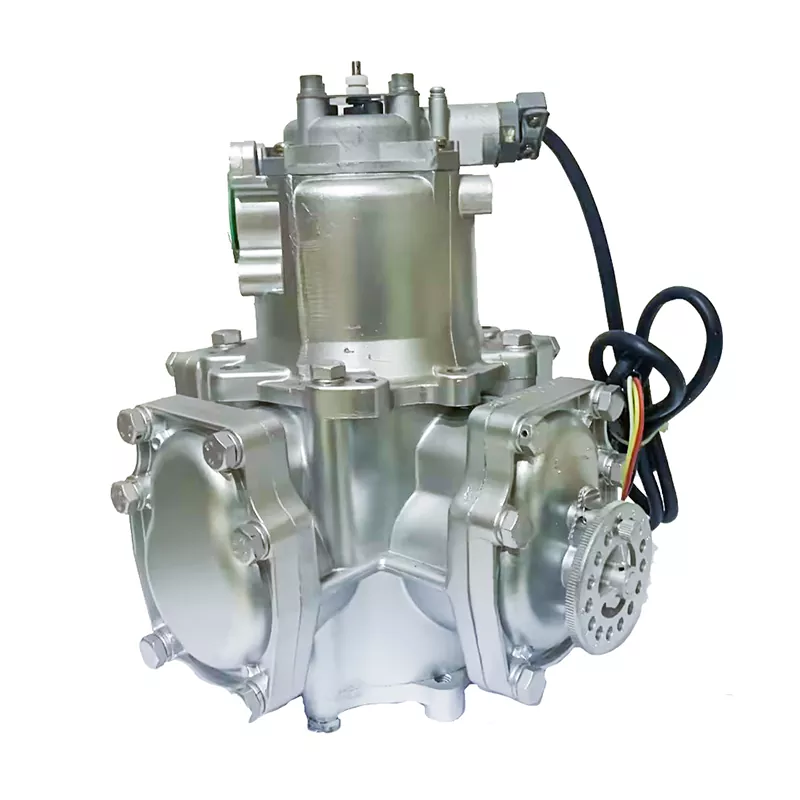

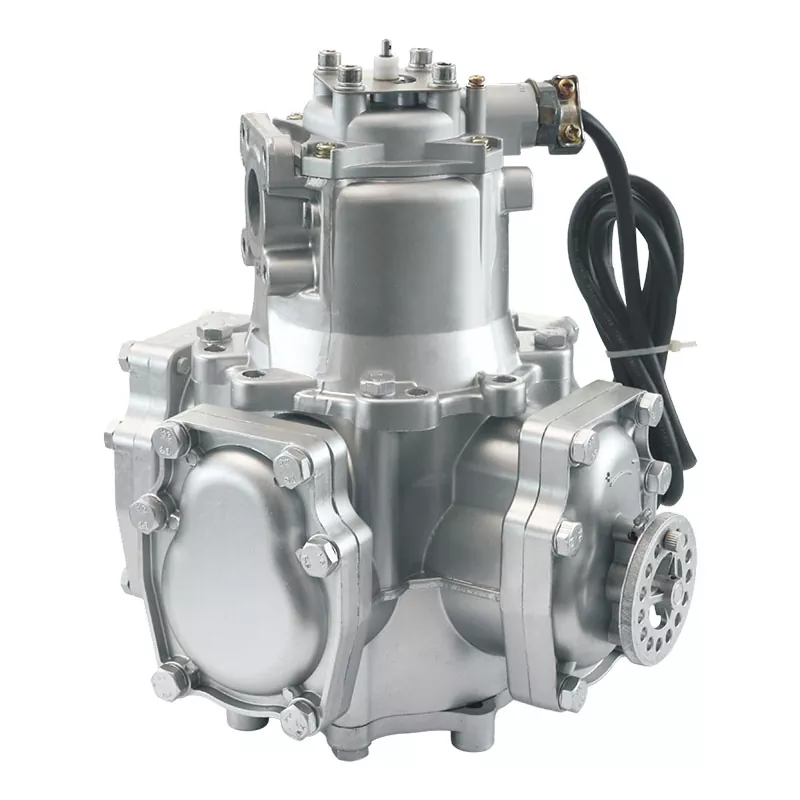

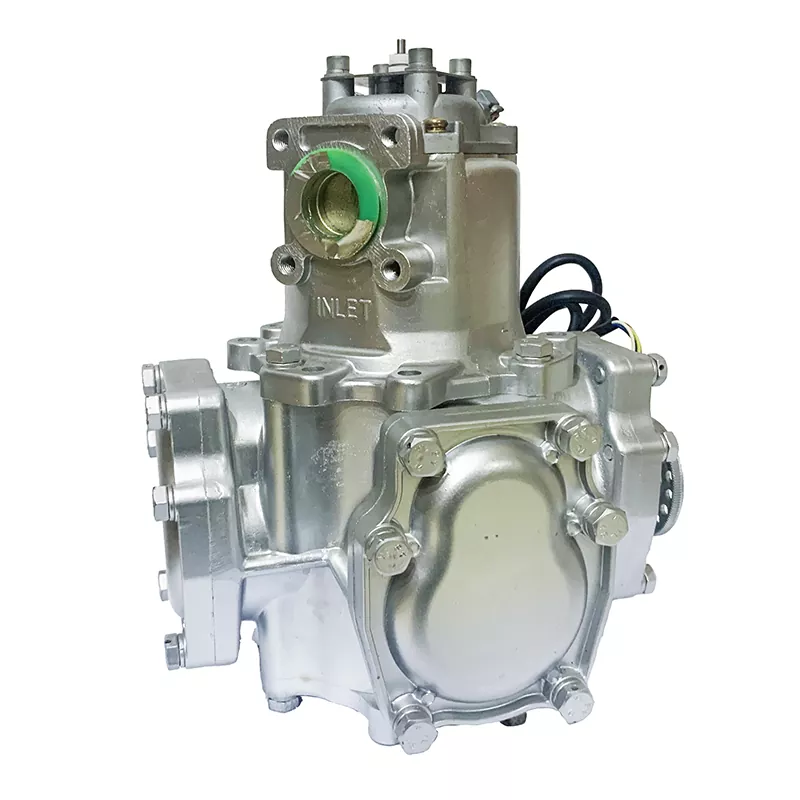

The FM4 flow meter is a high-precision metering device specifically designed as a supporting component for fuel dispensers. Its core advantages can be summarized as "accuracy, durability, and convenience." In terms of accuracy, it adopts a structure of four symmetrically arranged pistons with connecting rod limiting technology, discharging exactly 0.5 liters of oil per complete cycle, ensuring high metering precision and reliable fuel dispensing. In terms of durability, key components are made of high-quality materials: the crankshaft is made of 9Cr18 stainless steel, the connecting rods are made of 3Cr13 stainless steel, the cup seal is made of FD-3 modified PTFE, and the seals are made of nitrile rubber, providing excellent wear and corrosion resistance and a long service life. In terms of convenience, the flow meter features a compact structure, requires only horizontal placement for installation, is easy to operate, simple to maintain, and has a novel appearance. This flow meter is suitable for refueling services involving kerosene, diesel, gasoline, and blended fuels.
|
Discharge rate per revolution: |
0.5L |
|
Accuracy: |
±0.2% |
|
Repeatable tolerance: |
≤0.07% |
|
Adjustable Min.Volume: |
0.05% |
|
Max flow: |
80L/min |
|
Min flow: |
5L/min |
|
Working pressure |
≤0.3Mpa |
The FM4 flow meter features a connecting rod limiting structure, which provides high metering accuracy and a long service life. It has a compact structure, is easy to operate and maintain, and is safe and reliable. The design also offers a novel appearance and uses high-quality, corrosion-resistant and wear-resistant materials.
Refueling services involving kerosene, diesel, gasoline, and blended fuels.
