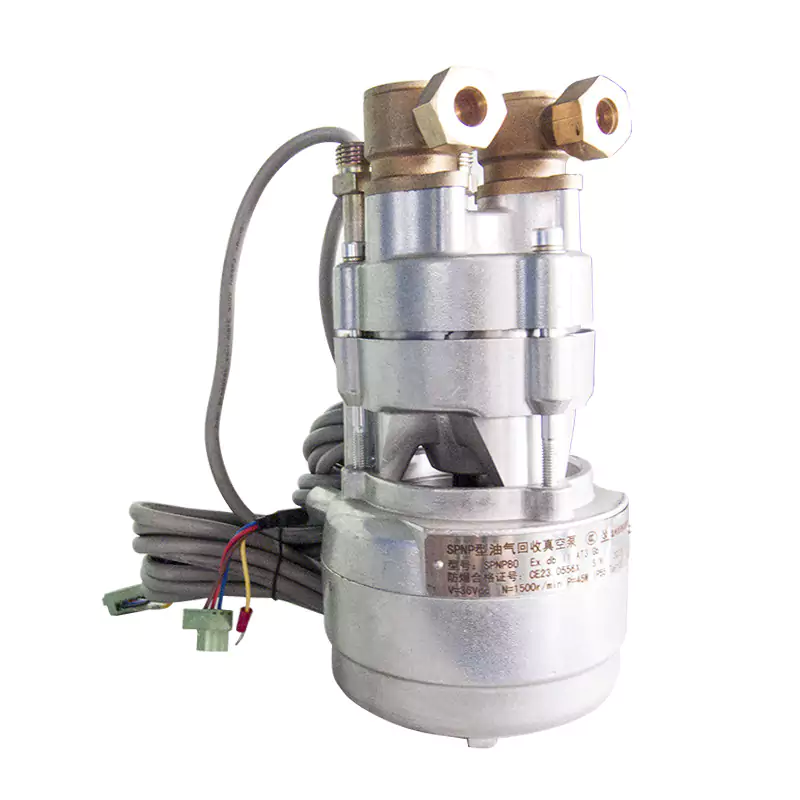

Oil and Gas Recovery Vacuum Pump

The oil and gas recovery vacuum pump is a DC variable frequency flameproof vacuum pump specifically developed for vapor recovery systems. The pump body features a flameproof enclosure "d" protection design, with an explosion-proof marking of Ex db IIA T3 Gb and an ingress protection rating of IP55. The oil and gas recovery vacuum pump operates reliably under ambient temperatures ranging from -20°C to +55°C, relative humidity of up to 90% (at 25°C), and atmospheric pressure between 80KPa and 106KPa.The pump consists of two main components: the pump body and its dedicated control board.Pump parameters of the oil and gas recovery vacuum pump: DC variable frequency power 45W, speed adjustable from 0 to 1500 r/min, rated flow rate 45 L/min, maximum flow rate 80 L/min, ultimate pressure ≤ -0.05 MPa, backing pressure ≤ 150 mbar.Control board parameters: Input voltage 230VAC ±15%, input current 0.5A, power 110W, output 36VDC ±15% at 3.5A, specifically designed for NP series vapor recovery vacuum pumps.The oil and gas recovery vacuum pump is widely used as an integral component in fuel dispenser vapor recovery systems to recover fuel vapors during refueling, reducing emissions and improving environmental compliance.

Product Parameter :

Feature

1.Automatic control pump speed,adjust the proportion of oil and gas recovery.

2.Wide range of regulation,not affected by flow,compact structure.

3.compact,large flow,simple maintenance,low power consumption

4.Save electricity and energy saving.

Application

The oil and gas recovery vacuum pump is suitable for gasoline dispenser oil and gas recovery.
