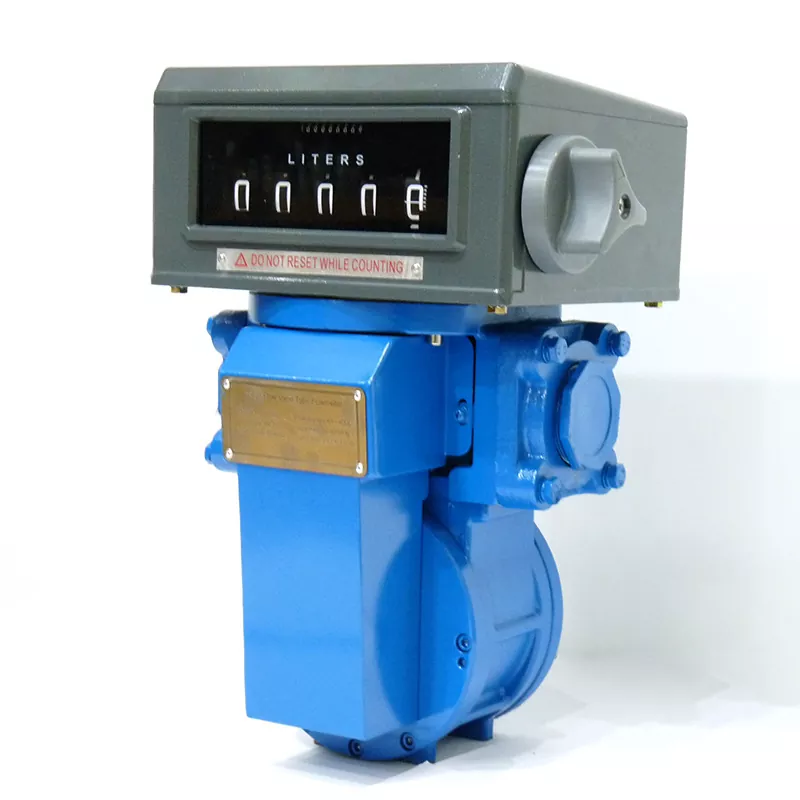

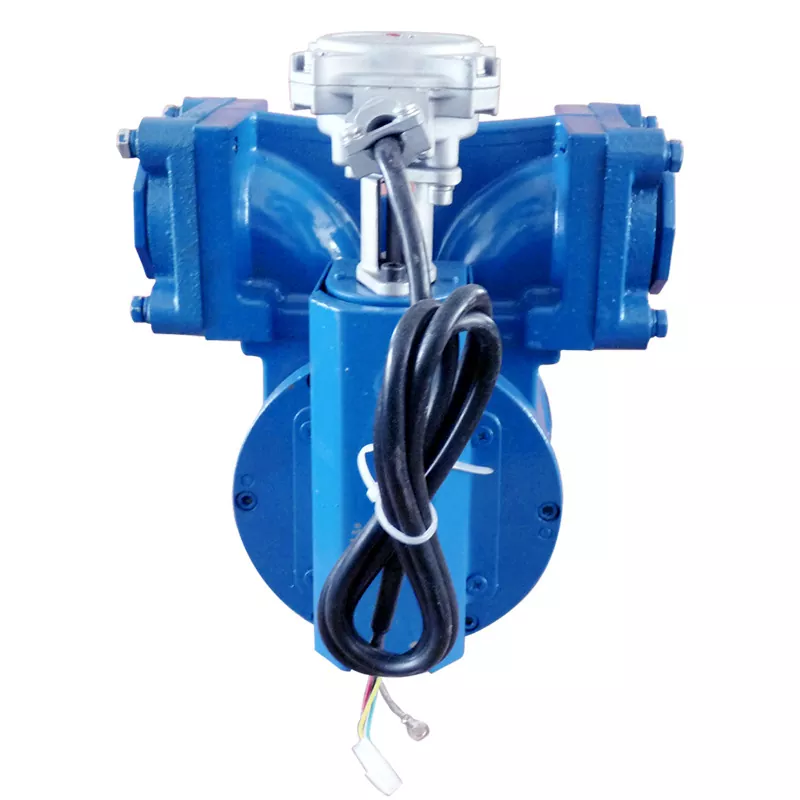

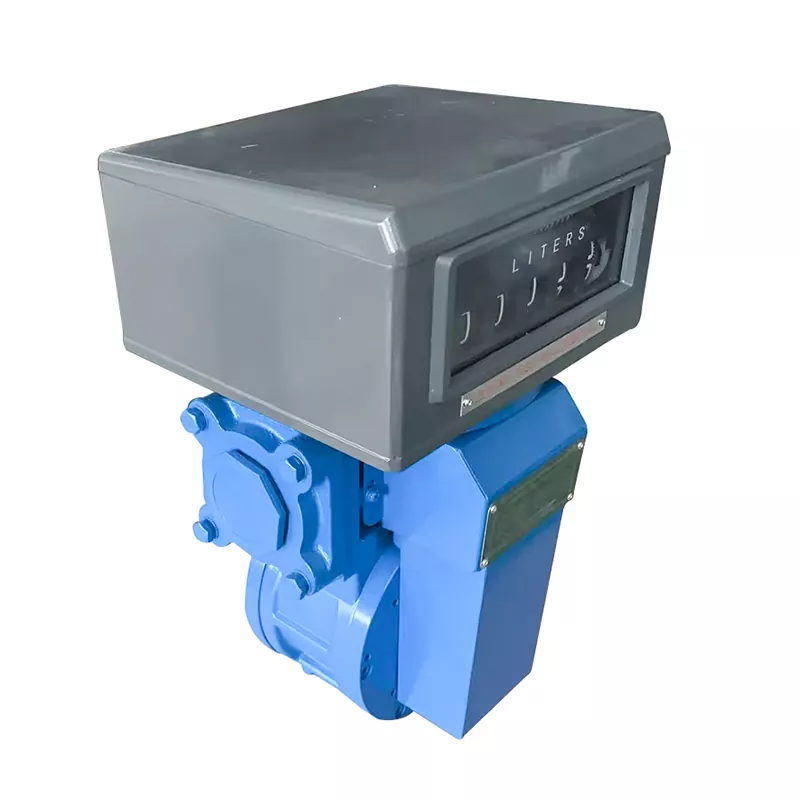

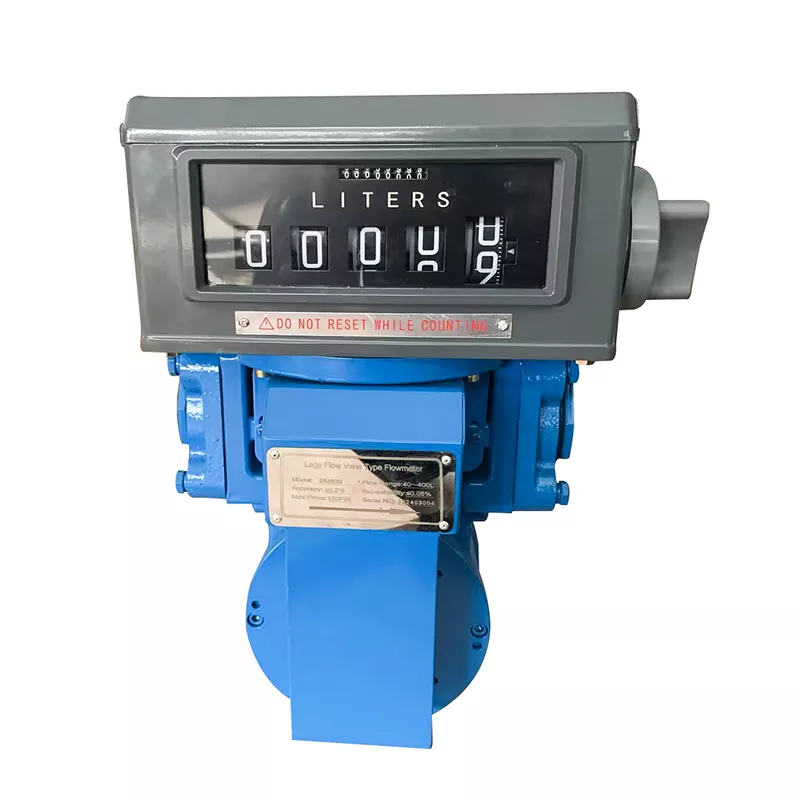

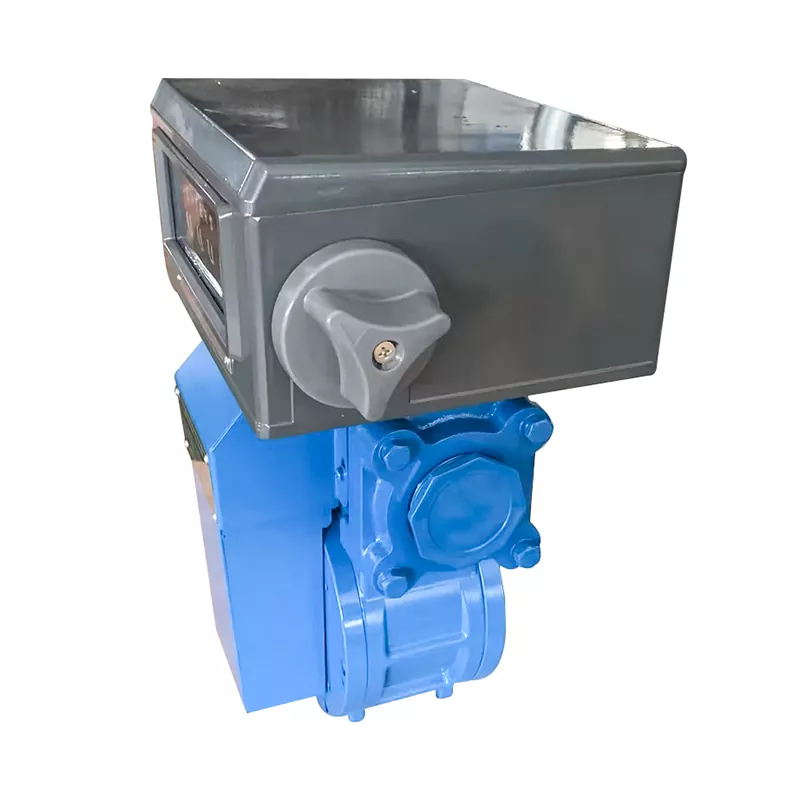

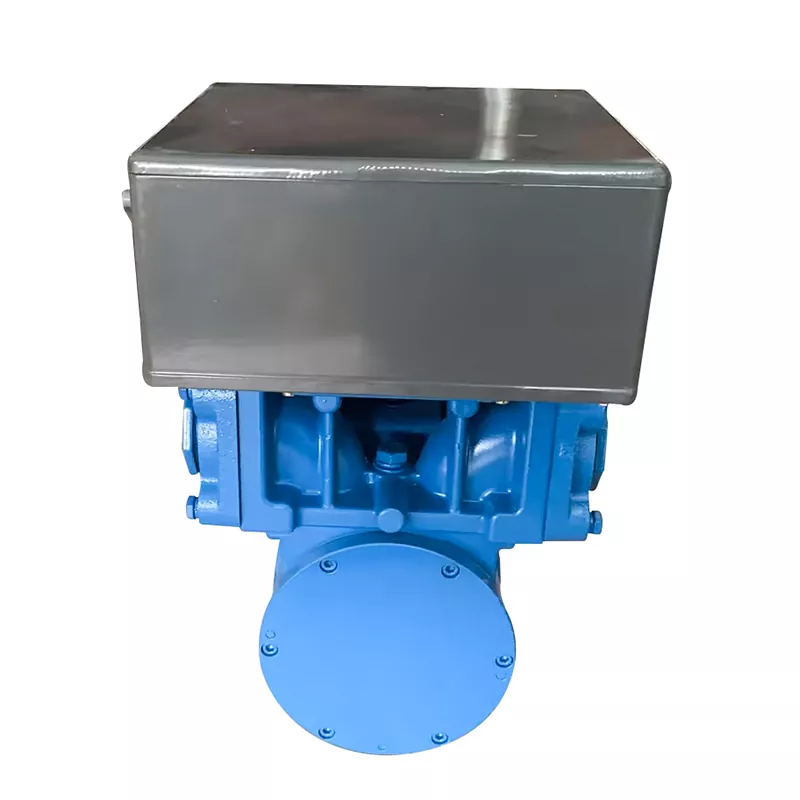

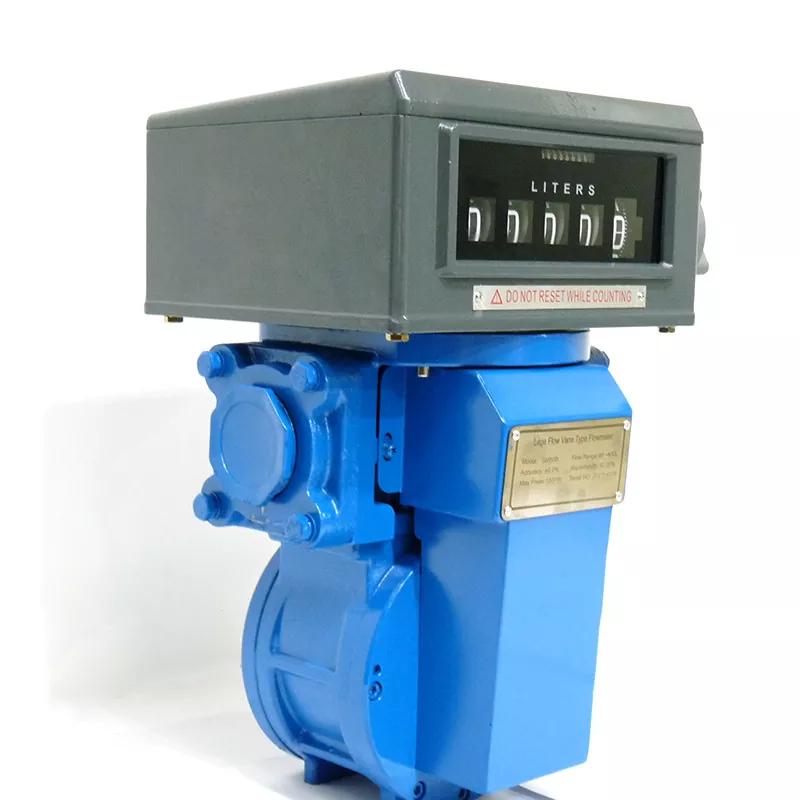

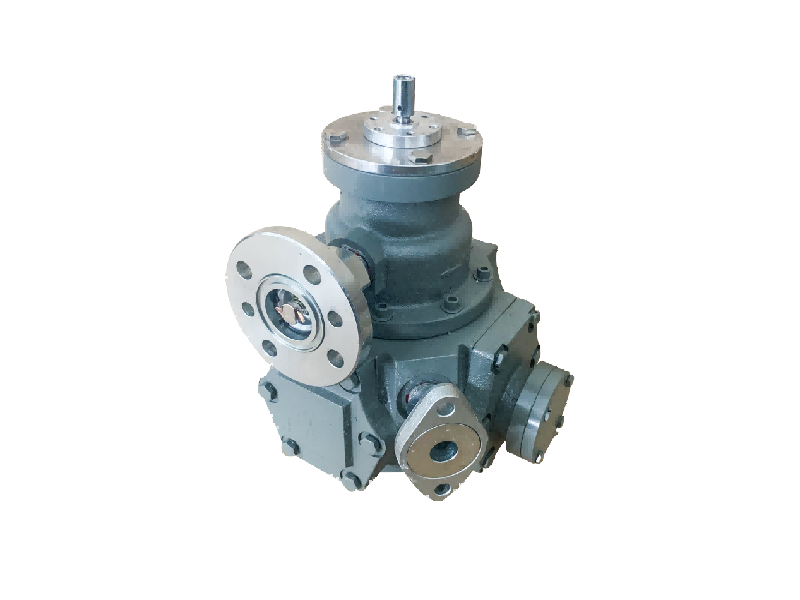

Oil Vane Flow Meter

The oil vane flow meter is a blade-type flowmeter specifically designed for precise liquid measurement. Its unique integrated design separates the connection pipe and the measurement chamber, making it suitable for various installation environments; the continuous fine-tuning mechanism helps achieve precise calibration, ensuring long-term stability of measurement accuracy. It can work efficiently in various liquid filling and transportation scenarios in the petrochemical industry, such as refineries and oil depots, as well as in the transportation sector, such as airports and railways. It provides key flow data support for various liquid management processes and meets the measurement requirements for liquids of different viscosities (up to 800Cst).

Product Parameter (Specification)

Feature

1、Precise measurement and calibration: Equipped with an exclusive infinitely adjustable device, capable of positive and negative pressure calibration. The wear compensation structure ensures stable measurement accuracy over many years, with an error of ≤ 0.2%.

2、Easy installation and maintenance: The connection of the elbow pipe and the measurement chamber of the flowmeter are designed separately, facilitating flexible installation; the rotor blade structure is simple, reducing maintenance costs and lowering the difficulty and expense of maintenance in the later stage of use.

3、Suitable for various fluids: It can be used for liquid measurement with a maximum viscosity of 800 Cst, expanding the application scope; Low pressure loss design (pressure loss ≤ 0.1 MPa), reducing system energy consumption.

4、Stable and reliable structure: The specially designed in-line manifold isolates the measurement chamber from the installation stress, enhancing the structural stability; it has pressure resistance capabilities, with a maximum working pressure of 8 bar (108 PSI/8.36 KG/Cm²), suitable for various working conditions.

Application

1、Petroleum energy industry: Oil companies' refineries, oil depots, gas stations and oil tankers, for flow measurement and management in the storage and transportation of oil products.

2、Transportation sector: At airports, fueling vehicles for aircraft, military depots' receiving/loading vehicles, railways (public transportation departments), ports, ships and barges, precisely control the fuel injection volume.

3、Professional logistics delivery: Private fuel transportation company, ensuring accurate flow measurement during fuel transportation, assisting in cost accounting and distribution management.
