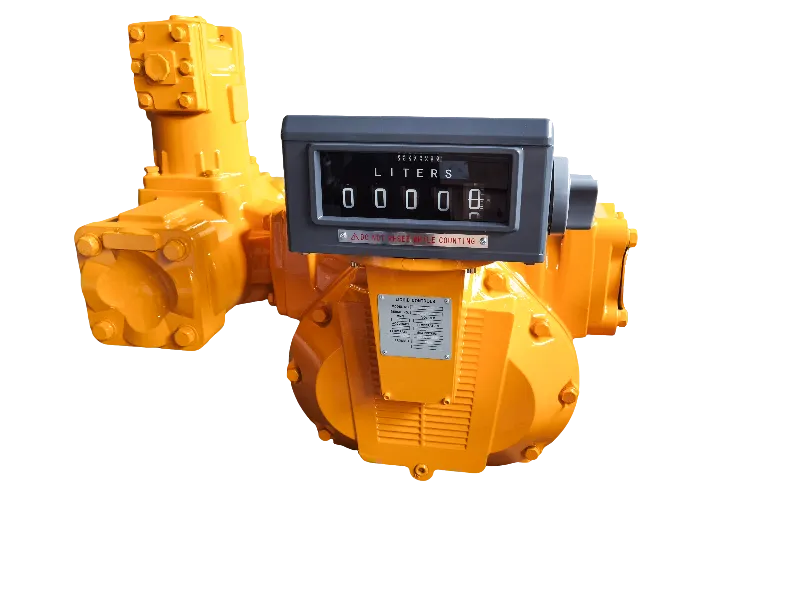

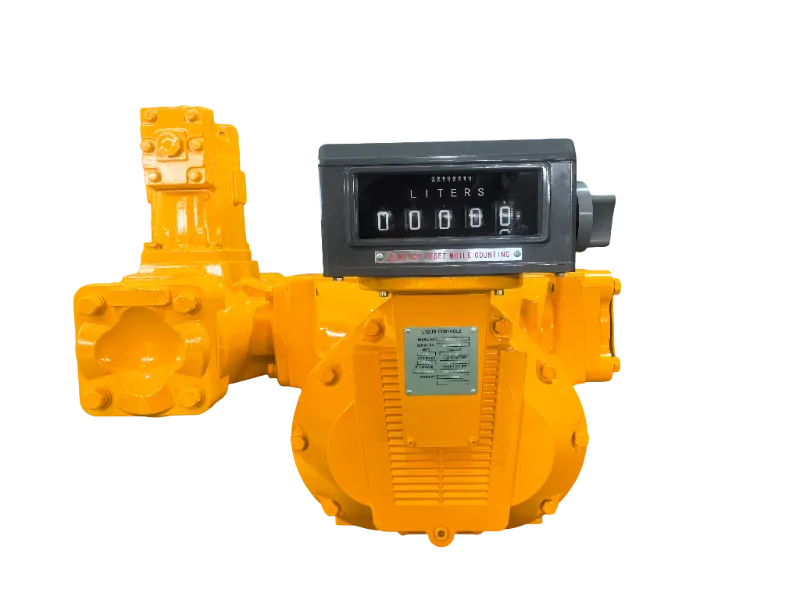

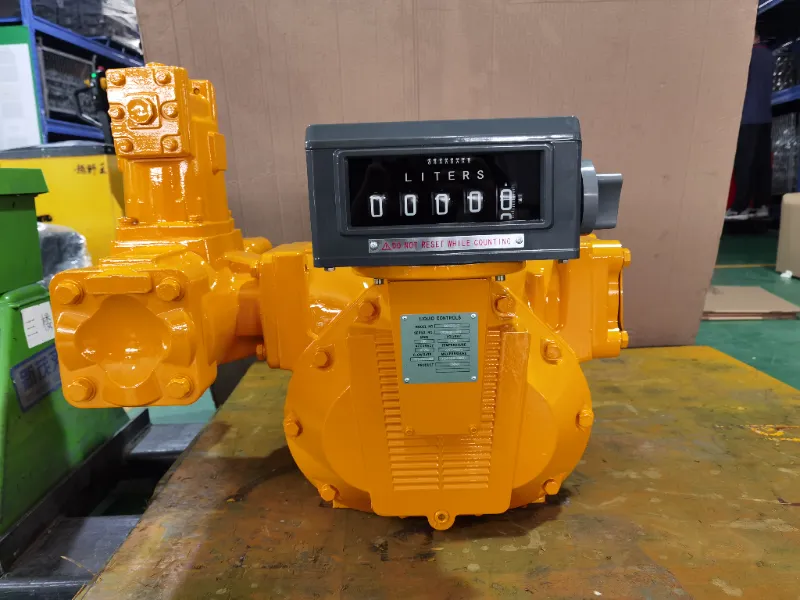

The M Series pipeline flow control system is a metering solution designed for high-flow refueling and fuel transfer pipelines. This 4 inch liquid control flow meter features compact structure, easy operation, simple maintenance, reliable performance, and modern appearance. It is suitable for kerosene, diesel, gasoline, and blended fuels.
This flow meter contains a fluid chamber with an obstructing shaft and two displacing shafts rotating in sync with matching gears. Fluid enters the chamber, the obstructing shaft rotates under pressure, the two displacing shafts follow, and fluid passes through to the outlet – converting linear flow into rotary motion. The 4 inch liquid control flow meter measures flow based on obstructing shaft rotation, transmitted via counter or pulse signal to a computer terminal.
The parameter is as follow.
| Flow Rate | 170L/min -1700L/min |
| Volume per revolution | 5.102L/r |
| Diameter | 100mm 4” |
| Maximum Working Pressure | 1.0Mpa/150psi |
| Accuracy | ≤±0.2% |
| Repeatable Tolerance | ≤0.1% |
This 4 inch liquid control flow meter consists of a fluid chamber, obstructing shaft, displacing shafts, synchronous gears, and counter or pulse output device. The obstructing shaft and two displacing shafts operate together within the fluid chamber, achieving precise metering through synchronized gear rotation.
The 4 inch liquid control flow meter features a compact and robust structure that ensures easy operation and simple maintenance, while delivering safe and reliable performance in demanding fueling environments. Its unique obstructing and displacing shaft design converts linear fluid flow into rotary motion, enabling highly accurate measurement across a wide range of flow rates. The meter is specifically suited for high-flow refueling and pipeline metering applications, with a modern appearance that complements advanced fuel management systems. Additionally, it offers optional counter or pulse output for seamless data collection and integration with existing control systems.
Fuel loading and unloading measurement at refineries and processing plants
Tanker truck and LPG tanker transfer metering
Heavy fuel dispensing for large trucks and aircraft.
The 4 inch liquid control flow meter must comply with all safety, ventilation, fire protection, and electrical standards. Piping must be cleaned before installation. Mount the meter on a stable platform—not directly on piping—to avoid distortion from thermal expansion or flange stress. Install a strainer upstream and a vertical air eliminator at the inlet if needed. During startup, fill the meter slowly to remove air, keep the outlet valve closed until the counter rotates, then open fully after liquid flows through. Never run the meter dry for over five minutes; stay within rated flow range. Prevent hydraulic shock and thermal expansion with proper valve closure rates and functional relief valves. Do not use the meter when air, bubbles, or vapor are present in the flow path.
A1: Yes. Flow direction affects metering accuracy. Reverse the drive gear if reverse counting is required.
A2: The MOQ is 1 unit.
A3: Wooden cases and cartons are both available – you may choose according to your preference.
