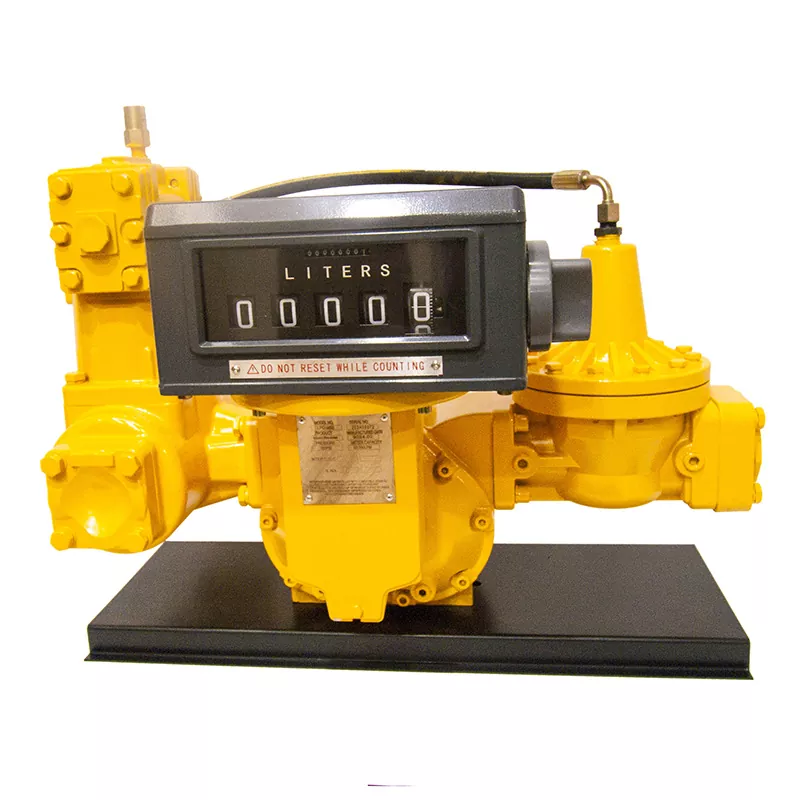

In order to make the LPG-M50,LPG flow meter work better for us, these are some of the requirements that we should pay attention to:
1, the gas flowmeter should be installed in a conspicuous place, to determine whether that place is easy to observe, maintenance and operation, but also to consider whether it will have an impact on other equipment, whether there will be interference;
2, can not be installed in the unstable, vibration feeling strong or a magnetic field interference, otherwise it will affect the measurement accuracy
3, in order to safety considerations, can not be installed in the place where there are flammable and explosive substances.
1, in the installation, we should ensure that the flowmeter inlet pressure is stable, to avoid excessive pressure fluctuations affect the measurement accuracy.
2, if the pipeline inlet pressure is too high, we can take appropriate pressure reduction measures to prevent overloading of the flowmeter.
1, different flowmeter has different working gas temperature and humidity, according to the appropriate temperature and humidity range to choose the flowmeter can be better measurement.
2, in the installation should pay attention to monitoring and protection of temperature and humidity, to avoid too high or too low temperature and humidity on the flowmeter damage.
1, the size and material of the connection pipeline should be matched with the flowmeter, so as to make the gas flowmeter in the smooth flow of gas.
2, to ensure that the connecting pipeline sealing is good, in order to prevent gas leakage, gas leakage will lead to safety accidents.
3、A filter or cleaning device should be set in the connecting pipeline to prevent impurities and particles from entering the flowmeter.
1. The LPG flow meter should be grounded to ensure electrical safety
2. Relevant electrical safety codes should be followed during installation to ensure the normal operation of the flowmeter and operational safety.
